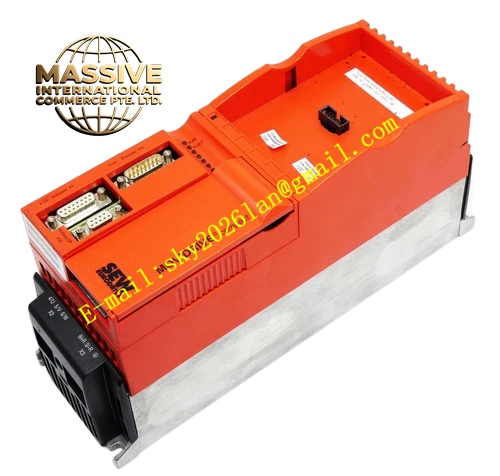

SEW MDF60A0075-5A3-4-00
Technical Specifications: Rated motor power: 7.5kW Three-phase input voltage: 380VAC – 500VAC, 50-60Hz Control modes: U/f control, VFC open-loop flux control, CFC closed-loop vector control, servo control Communication: Supports pluggable fieldbus option cards, binary terminal control Built-in brake chopper, four-quadrant operation Protection class: IP20 Ambient operating temperature: 0℃ ~ +45℃ Cooling method: Forced air cooling Separate 24VDC control supply, maintains parameter storage and communication after main circuit power loss
Functional Features: Modular vertical screw installation inside electrical cabinet, IP20 protection valid only inside cabinet Complete hardware protection including overcurrent, overvoltage, undervoltage, overheating, earth fault, output short-circuit and encoder signal failure Driving for asynchronous motor and synchronous servo motor Multiple isolated digital inputs and digital outputs including relay output, PTC motor temperature detection supported Automatic motor parameter identification and self-tuning, parameter backup and restore Built-in absolute positioning, relative positioning, electronic gearing, electronic cam and flying shear functions Integrated STO Safe Torque Off safety function Comprehensive fault log and operating data storage DC bus interconnection terminals for energy sharing of multiple drives Side slots for encoder and fieldbus expansion cards DBG60B operator panel and MOVITOOLS software for parameter setting, monitoring and fault diagnosis
Application Scenarios: Medium heavy load packaging machine servo axis Wide web printing and coating line roller synchronization Automated heavy slide table conveying system Metal cutting equipment positioning drive Medium load winding and unwinding control system
Performance Parameters: Output frequency range: 0Hz – 600Hz Overload capacity: 150% rated current for continuous 60 seconds Closed-loop speed control accuracy ±0.01% Independent adjustable acceleration and deceleration ramps, S-curve function available Torque limiting and pure torque control mode High-speed encoder signal sampling, compatible with multiple encoder types Supports electronic synchronization and flying shear motion control
Material Composition: Cold rolled steel sheet housing with powder coating anti-corrosion treatment Multi-layer industrial PCB power board and control board, IGBT inverter module, NTC temperature sensor Gold plated signal terminals, thick copper power terminals Flame retardant plastic brackets, high voltage DC bus electrolytic capacitors Metal heat sink with cooling fan assembly
Structural Characteristics: Vertical modular cabinet mounting with screw fixing holes on rear panel Front LED indicators for running status, fault alarm and bus communication High-current power terminals on upper part, control signal terminals on lower part Side expansion slots for optional function cards Physical isolation between power cavity and signal cavity to reduce electromagnetic interference Detachable terminal blocks, DC bus interconnection terminals
Working Principle: Three-phase AC power enters the rectifier module and converts to stable DC bus voltage. IGBT inverter module converts DC power to adjustable three-phase AC to drive motor. Encoder collects rotor speed and position signal and feeds back to control unit. Control unit uses vector algorithm to adjust output voltage and frequency continuously to realize closed-loop speed and position control. Regenerative energy during deceleration is consumed through brake chopper and external brake resistor. Hardware protection triggers immediately when fault appears, cuts power output and records fault codes. Multiple inverters can connect DC bus to share regenerative energy.
Installation Requirements: Vertical upright installation only inside closed electrical cabinet, inverted or horizontal installation forbidden Reserve cooling space up and down, keep fan inlet and outlet unobstructed Power cable, encoder cable and communication cable adopt separate wiring channels, all signal cables use shielded type Input voltage must match nameplate specification Cabinet environment without dust, corrosive gas and condensation PE ground terminal firmly connected to cabinet ground busbar Encoder cable uses SEW dedicated shielded cable Install metal shielding cover after expansion card installation
Precautions for Use: Wait at least 10 minutes after power off for capacitor full discharge before opening cover for maintenance Check three-phase voltage balance before power on Complete motor identification during commissioning No parallel capacitors on inverter output side Clean heat sink and fan dust regularly to prevent over temperature Use ESD protection when installing expansion cards External brake resistor must match drive rating, short circuit of brake terminal is forbidden STO safety wiring strictly follows official safety manual
