Description

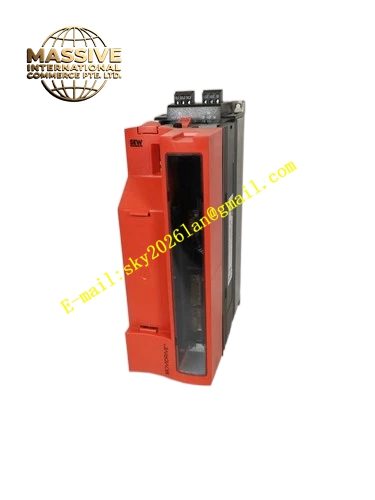

SEW MDX61B0022-5A3-4-0T
Technical Specifications:
- Brand: SEW-EURODRIVE
- Series: MOVIDRIVE MDX61B
- Recommended Motor Power: 2.2 kW
- Apparent Power: 3.8 kVA
- Input Voltage: 3-phase AC 380–500V, 50/60 Hz
- Output Frequency Range: 0–550 Hz
- Control Modes: VFC (Voltage Vector Control), CFC (Current Vector Control), V/f Control
- Protection Rating: IP20
- Operating Temperature: -10°C to +50°C
- Certifications: CE, UL
Functional Features:
- Dual Vector Control: Supports both VFC and CFC control strategies for precise motor regulation
- Modular Expansion: Compatible with PLC cards, position control boards, fieldbus interface cards (PROFIBUS, EtherNet, EtherCAT), and extended I/O modules
- Built-in Braking Chopper: Enables four-quadrant operation with energy dissipation through external braking resistors
- IPOS+ Programming: Integrated intelligent positioning system supporting internal logic control and position control without external PLC dependency
- EMC Filter Integration: Built-in electromagnetic compatibility filter reducing interference emissions
- SD Card Parameter Copy: Enables rapid parameter transfer between drives for simplified commissioning and replacement
Application Scenarios:
- Conveyor and material handling systems
- Machine tool spindle drives
- Packaging machinery
- Food processing equipment
- Chemical and pharmaceutical processing
- Water treatment systems
Performance Parameters:
- Overload Capacity: 150% rated current for 60 seconds, 200% for 1 second (up to 1.5 kW range)
- Speed Control Accuracy: ±0.01% (closed-loop vector control with encoder)
- Dynamic Response Time: <100 ms (vector control mode)
- Output Frequency Resolution: 0.01 Hz
Material Composition:
- Industrial-grade power electronics with IGBT inverter modules
- Coated circuit boards for protection against dust and moisture
- Aluminum alloy heat sink for thermal dissipation
- Integrated EMC filter components
Structural Features:
- Compact control cabinet mounting design
- Expansion slot for optional interface cards
- Integrated keypad connection port (DBG60B compatible)
- LED status indicators for power, operation, and fault conditions
- Screw-type power and control terminals
Working Principle:
The MDX61B0022-5A3-4-0T converts fixed-frequency AC input power into a variable-frequency, variable-voltage output through a rectifier-inverter topology. The rectifier stage converts AC to DC, the DC bus stores energy via capacitors, and the inverter stage uses IGBT switching to synthesize a PWM output waveform. The internal microprocessor executes vector control algorithms that decouple motor flux and torque components, enabling independent regulation of speed and torque. The IPOS+ system allows autonomous execution of motion sequences programmed directly within the drive.
Installation Requirements:
- Mount vertically in a control cabinet with adequate ventilation
- Maintain minimum clearance of 100 mm above and below the unit for airflow
- Connect power cables using shielded cables with 360° shield grounding
- Ensure motor cable phase sequence matches U-V-W terminal markings
- Connect braking resistor to dedicated brake terminals when dynamic braking is required
- Ambient temperature must remain within -10°C to +50°C range
Usage Notes:
- Perform motor initialization when connecting a new motor to pair motor parameters with the inverter
- Use MOVITOOLS MotionStudio software for parameter configuration and commissioning
- Verify power supply voltage stability within ±15% tolerance before operation
- Never connect or disconnect motor cables while the inverter is energized
- Monitor fault codes via the integrated display or MOVITOOLS software for troubleshooting
