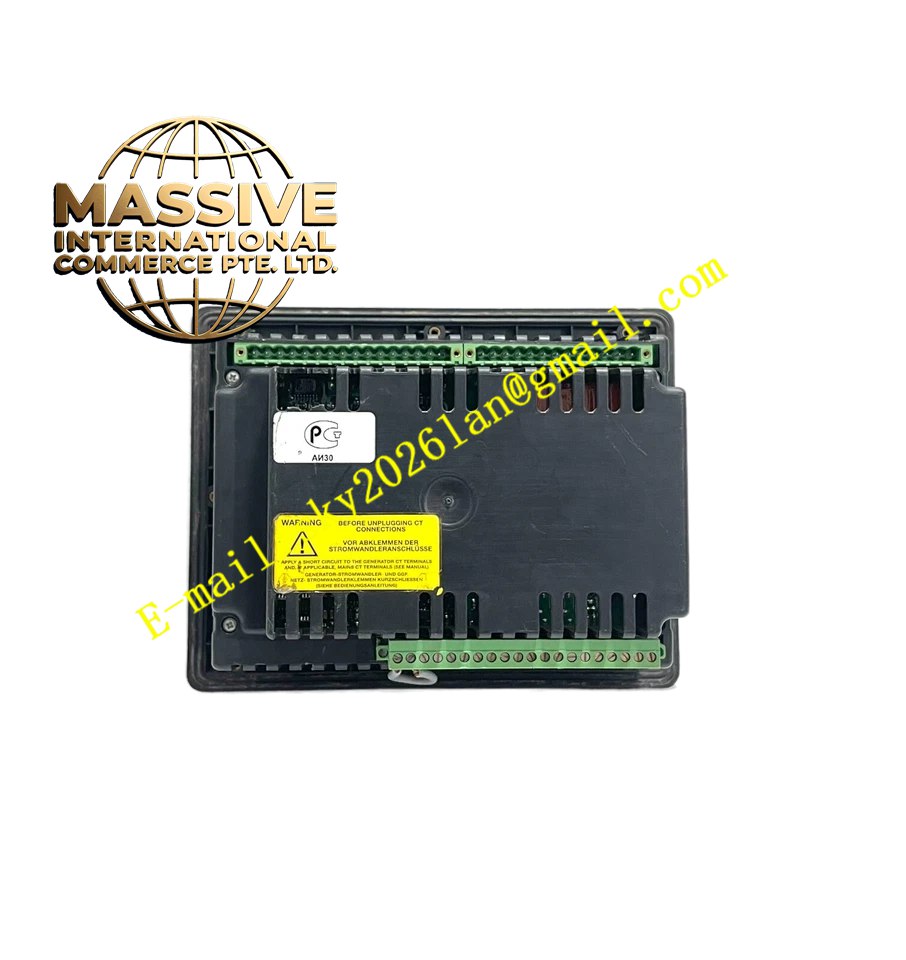

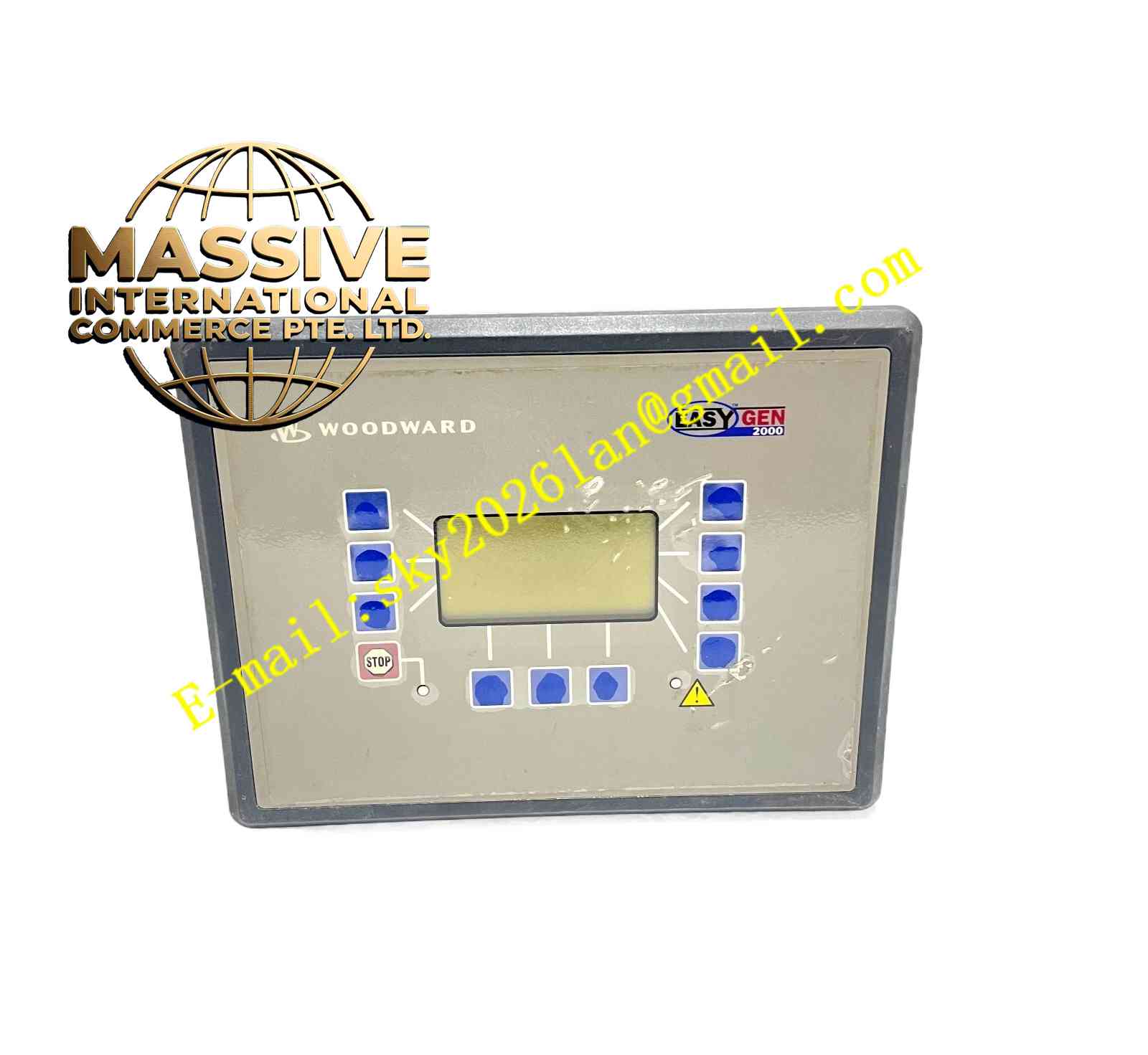

Woodward EASYGEN-2500-58440-1884K
Technical Specifications
- Processing Speed: 50 MHz high-speed microprocessor.
- Memory Capacity: 53 MB for both program and data storage.
- Electrical Parameters: 220V operating voltage at 50Hz frequency.
- Display Interface: Two-line text display (24 characters per line).
Functional Features
- Turbine Regulation: Controls turbine start, stop, acceleration, and deceleration sequences.
- Valve Actuation: Drives single or dual separation stage actuators to operate steam inlet valves.
- Dual Mode Operation: Features distinct programming mode for configuration and run mode for automated control.
- High Flexibility: Highly scalable architecture configurable for specific industrial applications.
Application Scenarios
Extensively utilized in industrial steam turbines, utility turbine generators, turbo-expanders, and turbo-compressors across the petroleum, chemical, and metallurgical sectors.
Performance Parameters
- Operating Environment: Rated for 0°C to 60°C ambient temperature and up to 60% non-condensing humidity.
- Control Precision: High-speed processing ensures rapid response to load and speed transients.
Material Composition
Constructed from a series of industrial-grade printed circuit boards housed within a robust, protective enclosure designed for secure control room integration.
Structural Characteristics
- Form Factor: Modular structure optimized for control panel mounting.
- Weight: Approximately 6.5 kg.
- HMI: Front-mounted operator control panel with intuitive menu-driven software.
Working Principle
The controller continuously monitors turbine parameters and executes precise control algorithms to modulate steam inlet valves via actuators, thereby maintaining the exact required rotational speed and load output.
Installation Requirements
Must be securely mounted in a control room environment, ensuring adequate ventilation to maintain temperatures within the 0°C to 60°C operational limits.
Precautions for Use
Always utilize the programming mode for parameter adjustments and switch to run mode for standard operation. Ensure the control panel is properly grounded to prevent electrical interference.
