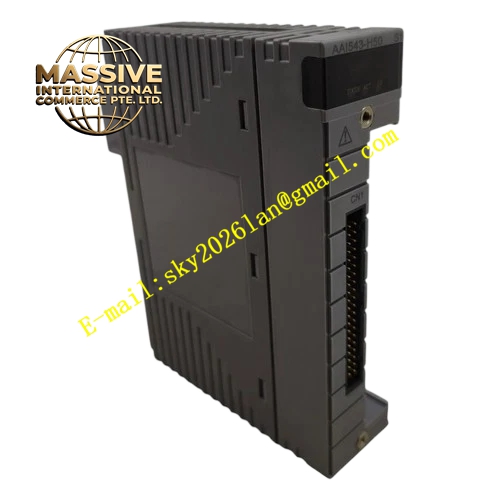

Yokogawa AAI543‑H50 S1
Technical Specifications: Output signal range 4‑20 mA DC; total channel quantity 16 channels; channel‑to‑channel galvanic isolation; output resolution 16‑bit; load resistance per channel maximum 600 Ω; safety‑system certification for ProSafe‑RS platform; operating power supplied via ProSafe‑RS rack backplane bus; operating temperature 0 °C‑60 °C; storage temperature ‑20 °C‑70 °C; humidity 10‑90 %RH non‑condensing; ProSafe‑RS rack‑slot mounting; front‑panel LED indicators for RUN status, module fault and channel diagnostic events; weight 0.84 kg; supports output‑circuit open‑load detection.
Functional Features: 16 isolated 4‑20 mA analog‑output channels for safety‑loop field actuators; per‑channel open‑load detection identifies broken field wiring or actuator disconnection; channel‑wise galvanic isolation eliminates ground‑loop interference between different field instrument loops; onboard hardware self‑diagnosis detects internal module faults and backplane communication failures; front‑panel LED array provides visual module‑status and fault indication; receives digital output set‑point data from ProSafe‑RS CPU over rack backplane bus; S1 hardware revision improves component aging resistance for process‑industry continuous operation.
Application Scenarios: Safety‑related control valve actuation in chemical plants; petrochemical refinery emergency shutdown analog actuator loops; oil‑gas plant SIS 4‑20 mA field instrument driving; power‑plant safety auxiliary analog control loops; ProSafe‑RS system maintenance and spare‑part replacement projects.
Performance Parameters: Analog output accuracy satisfies ProSafe‑RS safety‑loop requirements; channel‑to‑channel isolation dielectric strength meets process‑control industrial standards; vibration and shock resistance comply with cabinet‑mount process‑control hardware specifications; supports 24‑7 continuous long‑term cabinet‑internal operation under non‑condensing conditions.
Material Composition: Orange V0 flame‑retardant engineering‑plastic rack‑module housing; FR‑4 multilayer glass‑fiber printed‑circuit board; digital‑to‑analog conversion integrated circuits; galvanic isolation components for each output channel; gold‑plated backplane edge‑connector contacts; multi‑color SMD LED status indicators; metal mechanical locking latches.
Structural Features: Standard ProSafe‑RS rack‑slot mechanical profile; rear‑side gold‑plated edge‑connector connects to rack backplane bus; front‑panel equipped with RUN and fault‑status LED indicators; side metal latches secure module into rack I/O slot; field‑loop wiring connects externally via matched FTA terminal block assembly.
Working Principle: ProSafe‑RS CPU sends digital set‑point values across rack backplane bus to AAI543‑H50 S1 module. Module internal digital‑to‑analog converters translate digital values into analog current‑reference signals. Galvanic isolation circuits separate module internal digital logic domain from field‑side 4‑20 mA output loops. Current‑output drive circuits generate stable 4‑20 mA loop current transmitted through FTA terminals to field‑mounted valves and actuators. Onboard diagnostic circuits monitor output‑loop load conditions, detect open‑load faults and internal hardware anomalies, and activate corresponding LED status indicators.
Installation Requirements: Install AAI543‑H50 S1 into valid I/O slot on ProSafe‑RS main rack or expansion rack; engage side‑panel mechanical latches for firm rack‑slot fixation; deploy matched FTA terminal assemblies for all field 4‑20 mA loop wiring; use shielded twisted‑pair cables for field analog‑output signal wiring; separate analog loop cables from high‑power motor and inverter power cables; implement reliable protective grounding for control cabinet and rack assembly.
Usage Notes: Execute official hot‑swap operating procedures for module replacement under powered‑on rack status; configure output range and fault‑safe output state within ProSafe‑RS engineering software before commissioning; confirm field‑loop load resistance does not exceed 600 Ω per‑channel maximum rating; avoid deployment in environments with corrosive gas, liquid splash or condensation; check FTA terminal screw torque during regular system maintenance cycles.
