Description

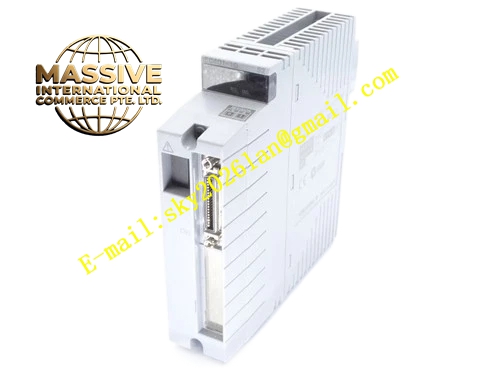

Yokogawa EC401‑50 S3
Technical Specifications: Communication function: ProSafe‑RS expansion‑rack interconnection bus; supports redundant communication bus topology; data transmission rate optimized for safety‑system real‑time data exchange; number of communication ports: dual bus ports for redundant inter‑rack cabling; operating power supplied via ProSafe‑RS rack backplane bus; operating temperature 0 °C‑60 °C; storage temperature ‑20 °C‑70 °C; relative humidity 10‑90 %RH non‑condensing; ProSafe‑RS rack‑slot mounting; front‑panel LED indicators for bus active status, link status and communication fault events; weight 0.79 kg; safety‑system compliance for ProSafe‑RS SIS architecture.
Functional Features: Dual‑port redundant bus communication links main ProSafe‑RS rack to multiple expansion racks; real‑time bidirectional transmission of I/O data, diagnostic data and system status information; automatic switch‑over to secondary bus channel upon primary communication‑link failure; hardware self‑diagnosis detects internal module faults and inter‑rack bus communication abnormalities; front‑panel LED group visualizes communication link activity and fault conditions; full interoperability with all ProSafe‑RS expansion‑rack I/O modules; S3 hardware revision enhances electromagnetic interference resistance for heavy‑noise industrial plant environments.
Application Scenarios: Large‑scale distributed ProSafe‑RS SIS systems requiring multiple expansion racks; chemical‑plant safety‑instrumented cabinets with dispersed I/O point allocation; petrochemical refinery SIS systems with multi‑rack architecture; oil‑gas plant safety‑control multi‑rack installations; ProSafe‑RS system upgrade and spare‑part replacement projects.
Performance Parameters: Redundant bus switch‑over completes without loss of safety‑system real‑time data; communication performance maintains stability under industrial‑field electromagnetic interference; vibration and shock resistance comply with cabinet‑mount process‑control hardware standards; supports continuous 24‑7 long‑term cabinet‑internal operation under non‑condensing conditions.
Material Composition: Orange V0 flame‑retardant engineering‑plastic rack‑module housing; FR‑4 multilayer glass‑fiber printed‑circuit board; industrial‑grade communication‑processing chips; differential signal transceiver circuits; gold‑plated backplane edge‑connector contacts; multi‑color SMD LED status indicators; metal mechanical locking latches.
Structural Features: Standard ProSafe‑RS rack‑slot mechanical profile; rear‑side gold‑plated edge‑connector mates with rack backplane bus; front‑panel contains dual redundant bus‑signal connectors and status‑LED array; side metal latches fasten module securely into designated communication‑slot position on ProSafe‑RS rack.
Working Principle: EC401‑50 S3 receives I/O status data and diagnostic information from ProSafe‑RS CPU via rack backplane bus. Internal communication processor packages system data frames and transmits them out through dual redundant differential bus ports to connected expansion‑rack communication modules. Incoming data frames from expansion racks are received, validated and forwarded to main‑rack CPU via backplane bus. When primary communication channel encounters signal loss, hardware logic automatically switches all data traffic to secondary redundant bus channel without system interruption. Onboard diagnostic circuits monitor bus signal integrity and module internal hardware state continuously and trigger corresponding LED fault indicators upon abnormality detection.
Installation Requirements: Install EC401‑50 S3 into specified communication slot of ProSafe‑RS main rack; lock side‑panel mechanical latches for firm rack‑slot fixation; use official‑specified shielded communication cables for inter‑rack redundant bus wiring; separate inter‑rack communication cables from high‑power motor and inverter power cables; implement reliable protective grounding for control cabinet and rack assembly.
Usage Notes: Observe official hot‑swap operating procedures for module replacement on powered‑on rack; strictly apply Yokogawa‑recommended communication cables for inter‑rack bus connection; validate redundant‑bus switch‑over function during system commissioning; avoid deployment in environments with corrosive gas, liquid splash or condensation; inspect communication‑connector locking condition during periodic maintenance cycles.
