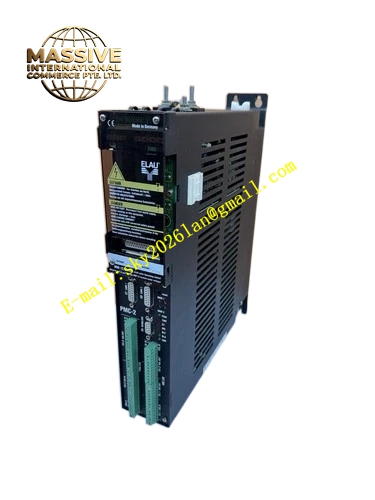

ELAU PMC-2-11-08-000-01-03-00-00-00
Technical Specifications:
- Brand: ELAU (Schneider Electric)
- Model: PMC-2-11-08-000-01-03-00-00-00
- Product Type: Digital Motor Controller / Servo Positioning Controller
- Input Voltage: 3 x 400V AC
- Rated Current: 1.8 Ampere
- Processor Technology: Multi-processor technology (32-bit processor plus VECON chip)
- Protection Class: IP20 (Standard)
Functional Features:
- Integrated Control: Combines positioning control and digital motor controller functions in one housing.
- High Dynamic Response: Supports high-dynamic brushless AC servo motors with resolver or SINCOS encoders.
- Programming: Features a flexible process language (ECL-3) with multi-tasking capabilities.
- System Variables: Offers deep system visibility down to the motor current level.
- Operation: Capable of independent operation or integration into a larger network.
Application Scenarios:
- Precision positioning systems.
- Automated assembly lines requiring synchronized motion.
- Packaging machinery requiring electronic gearing or camming.
Performance Parameters:
- Sampling Rate: Position controller sampling rate of 0.33 ms.
- Synchronization: Supports electronic gear and disc cam functions.
- Interface: One programming interface for both positioning and motor control.
Material Composition:
- Industrial-grade metal housing.
- High-reliability electronic components.
Structural Features:
- Compact module structure.
- Standard electrical interface terminals.
- Option for connection to operating units (e.g., BE-7) via D-Sub connectors.
Working Principle:
The controller receives command signals and processes them using its internal 32-bit processor and VECON chip to generate precise drive signals for the servo motor. It utilizes feedback from the motor’s encoder to perform closed-loop control, ensuring accurate position and speed regulation.
Installation Requirements:
- Mount on a standard DIN rail or panel.
- Ensure adequate ventilation for heat dissipation.
- Connect shielding cables properly to minimize electromagnetic interference.
Usage Notes:
- Verify the voltage rating matches the power supply.
- Ensure the connected motor is compatible with the controller’s current rating.
- Use the provided software tools for parameter configuration and diagnostics.
