Description

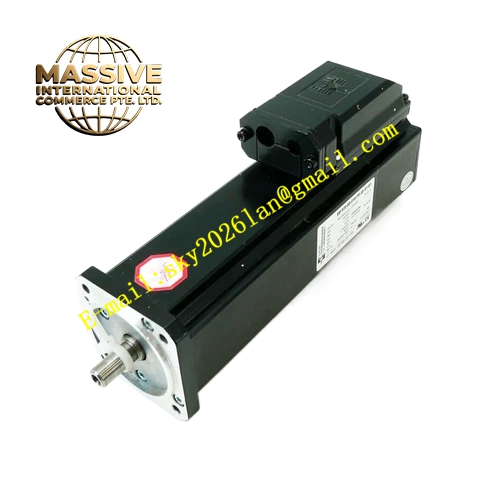

ELAU SM070-60-010-P0-45-S1-B1
Technical Specifications:
- Brand: ELAU (Schneider Electric)
- Model: SM070-60-010-P0-45-S1-B1
- Series: SM-070
- Flange Size: 70 mm
- Rated Speed: 6000 RPM
- Brake: B1 (Integrated Holding Brake)
Functional Features:
- Holding Brake: The “B1” indicates a spring-applied brake that engages when power is removed, holding the load securely.
- High Precision: S1 feedback system ensures accurate positioning.
- Compact Design: High torque density in a small form factor.
- Robustness: IP65/IP67 protection for harsh environments.
Application Scenarios:
- Vertical lifting axes (Z-axis).
- Robotics (joint drives requiring holding torque).
- Incline conveyors.
Performance Parameters:
- Rated Torque: Optimized for dynamic performance.
- Brake Torque: Sufficient to hold the rated load of the motor.
- Control Modes: Position, Velocity, and Torque.
Material Composition:
- Aluminum housing.
- NdFeB magnets.
- High-friction brake lining.
Structural Features:
- Flange mounting.
- Integrated brake unit at the rear of the motor.
- Single cable connection option.
Working Principle:
The motor operates as a standard AC servo. The brake is electrically released when the drive is enabled, allowing free rotation. When the drive is disabled or power is lost, the spring mechanism engages the brake disc to stop and hold the shaft.
Installation Requirements:
- Ensure the brake control wires are connected to the correct drive outputs.
- Mount securely to handle the reaction forces of the brake.
- Verify the brake release voltage matches the drive output.
Usage Notes:
- Do not use the holding brake for dynamic stopping or slowing down; it is for static holding only.
- Check the brake gap and wear periodically if used frequently.
- Ensure the drive is configured to release the brake only when the motor has sufficient torque.
