Description

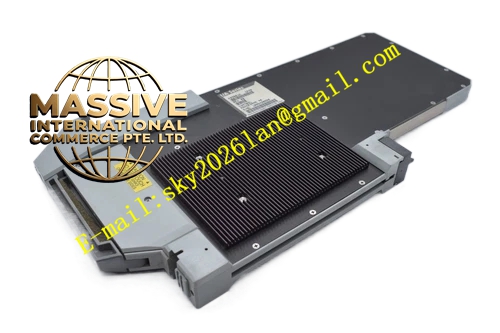

Foxboro CP40 P0960JA
Technical Specifications
- Hardware Code: P0960JA
- Processor: 32-bit industrial-grade RISC processor.
- Instruction Speed: 0.1 µs/Boolean instruction, 0.5 µs/Floating-point operation.
- Memory: 8 MB Program Memory, 4 MB Data Memory.
- Communication: Redundant 2 Mbps Module Fieldbus and 100Mbps Ethernet.
Key Features
- High-Speed Local Control: Executes regulation, logic, timing, and sequence control locally to minimize network latency.
- Redundant Architecture: Supports hot-standby redundancy and power redundancy for maximum system availability.
- Extensive I/O Management: Capable of managing up to 32 FBMs (expandable to 128 via FEM100) and up to 256 I/O points.
- Data Integrity: Utilizes bit-by-bit matching technology to verify data consistency and prevent erroneous information propagation.
Application Scenarios
Deployed in critical process automation environments, including refining, petrochemicals, and power generation, as the central “brain” for localized process control and data acquisition.
Performance Parameters
- Operating Temperature: 0°C to 60°C
- Storage Temperature: -40°C to 85°C
- Power Supply: 24 VDC, 10W typical, supports redundant power.
- Protection Rating: IP20
Material Composition
Housed in a die-cast aluminum enclosure designed to withstand G3-class harsh environments, including high dust and strong electromagnetic interference.
Structural Characteristics
Compact form factor measuring 140mm × 165mm × 45mm, weighing approximately 0.6 kg. Features comprehensive front-panel status LEDs and integrated Ethernet/ControlNet communication ports.
Operating Principle
The 32-bit RISC processor continuously polls connected FBMs for field data, executes control logic at high speed, and transmits processed data over the redundant 100Mbps Ethernet network. In redundant configurations, it uses bit-by-bit matching to ensure seamless failover.
Installation Requirements
Must be installed on a compatible Foxboro 200 Series baseplate. Ensure adequate cabinet ventilation and maintain a low-impedance protective earth ground for enhanced noise immunity.
Usage Precautions
When configuring redundancy, ensure primary and backup modules have identical firmware versions. Always follow standard ESD procedures during handling, and verify that redundant switching logic is correctly configured.
