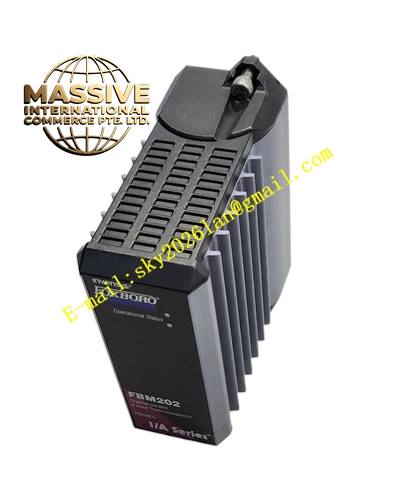

Foxboro FBM202 P0926EQ
Technical Specifications
- Module Type: Thermocouple/mV Input Module
- Input Capacity: 8 isolated channels
- Input Range: Thermocouple types and mV signals
- Bus Interface: Foxboro Module Fieldbus
Functional Features
- Multi-Type Thermocouple Support: Compatible with J, K, T, E, R, S, B, and N types.
- Built-In Cold Junction Compensation: Ensures accurate temperature measurement.
- Channel Isolation: Prevents ground loop errors.
- Hot-Swappable Design: Enables online maintenance.
Application Scenarios
Deployed for furnace temperature monitoring, reactor temperature profiling, and exhaust gas temperature measurement in power and chemical industries.
Performance Parameters
- Operating Temperature: -40℃ to +70℃
- Power Dissipation: 3W maximum
- Ingress Protection: IP20
Material Composition
Features precision analog circuitry with conformal-coated PCBs in a rugged enclosure.
Structural Characteristics
Standard 200 Series FBM form factor. Connects via a dedicated TA for thermocouple wiring.
Working Principle
Thermocouple signals are amplified, cold-junction compensated, and digitized. Data is transmitted to the controller via the Module Fieldbus.
Installation Requirements
Install on a 200 Series baseplate. Use proper thermocouple extension wire and maintain correct polarity.
Usage Precautions
Verify thermocouple type configuration in software. Ensure proper cold junction temperature stability. No calibration required.
