Description

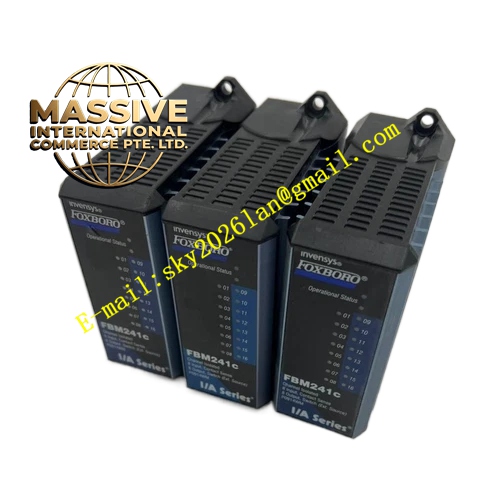

Foxboro FBM241D P0914WP
Technical Specifications
- Input Type: Voltage Monitor (8 channels, Internal Source Variant)
- Output Type: Discrete Output (8 channels)
- Hardware Code: P0914WP
- Communication Protocol: Redundant 2 Mbps Module Fieldbus
Key Features
- Specialized Internal Sourcing: Tailored internal voltage characteristics for specific field device compatibility.
- Space-Saving Mixed I/O: Integrates monitoring and control in a single module footprint.
- High Reliability: Designed for continuous industrial operation with robust fault tolerance.
- Integrated Diagnostics: Features detailed status LEDs and health reporting for simplified troubleshooting.
Application Scenarios
Deployed in specialized process control applications requiring specific voltage monitoring thresholds combined with discrete actuator control.
Performance Parameters
- Operating Temperature: 0°C to 60°C
- Protection Rating: IP20
- Power Supply: 24 VDC backplane supply
Material Composition
Constructed with high-reliability industrial-grade components and protective conformal coatings.
Structural Characteristics
Standard 200 Series FBM single-width form factor. Interfaces with the backplane via precision connectors and connects to field devices through a matched Terminal Assembly.
Operating Principle
Utilizes internal voltage sourcing to monitor 8 field inputs while simultaneously executing 8 discrete output commands based on controller logic, ensuring seamless bidirectional data flow.
Installation Requirements
Mount on a compatible 200 Series baseplate. Verify that the specific internal sourcing parameters match the connected field devices.
Usage Precautions
Ensure strict adherence to the hardware code (P0914WP) when replacing modules to maintain internal sourcing compatibility. Observe standard ESD precautions during handling.
