Product Introduction

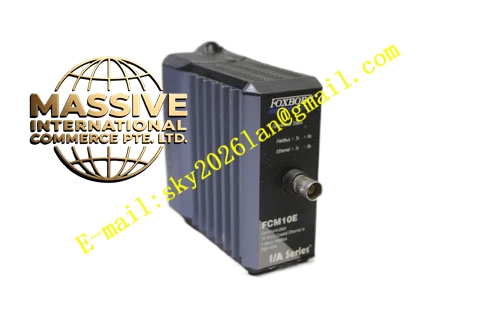

The FCM10E P0914YM is a core Field Control Module within the Foxboro I/A Series system. It serves as the primary local controller and communication hub, executing control algorithms, managing local I/O modules (FBMs), and communicating with the upper-level control network.

Request Quote
Category:

Description

Foxboro FCM10E P0914YM

Technical Specifications

  • Hardware Code: P0914YM
  • Processor: 32-bit Industrial RISC Processor
  • Memory: 8MB Program Memory, 4MB Data Memory
  • Communication: Redundant 2 Mbps Module Fieldbus & Ethernet 10/100BaseTX
  • Instruction Speed: 0.1 µs/Boolean, 0.5 µs/Floating-point

Key Features

  • High-Performance Local Control: Executes complex regulation, logic, timing, and sequence control locally, reducing network traffic and latency.
  • Extensive I/O Management: Capable of managing up to 32 FBMs (expandable to 128 via FEM100) and up to 256 I/O points.
  • Redundant Architecture: Supports hot-standby redundancy and power redundancy for maximum system availability.
  • Multi-Protocol Support: Integrates seamlessly with Foxboro Evo control networks and supports Modbus TCP/IP, ControlNet, and Ethernet/IP.

Application Scenarios
Widely deployed as the central processing node in oil, gas, chemical, and power generation DCS systems, acting as the “brain” for localized process control and data acquisition.

Performance Parameters

  • Operating Temperature: 0°C to 60°C
  • Storage Temperature: -40°C to 85°C
  • Protection Rating: IP20
  • Power Supply: 24 VDC, 10W typical, supports redundant power

Material Composition
Housed in a die-cast aluminum enclosure designed to withstand G3-class harsh environments, including high dust and strong electromagnetic interference.

Structural Characteristics
Compact form factor measuring 140mm × 165mm × 45mm, weighing approximately 0.6 kg. Features comprehensive front-panel status LEDs and integrated Ethernet/ControlNet communication ports.

Operating Principle
The 32-bit RISC processor continuously polls connected FBMs for field data, executes control logic at high speed, and transmits processed data over the redundant 100Mbps Ethernet network. Bit-by-bit matching technology verifies data consistency to prevent erroneous information propagation.

Installation Requirements
Must be installed on a compatible Foxboro 200 Series baseplate. Ensure adequate cabinet ventilation and maintain a low-impedance protective earth ground for enhanced noise immunity.

Usage Precautions
When configuring redundancy, ensure primary and backup modules have identical firmware versions. Always follow standard ESD procedures during handling, and verify that redundant switching logic is correctly configured.
