Description

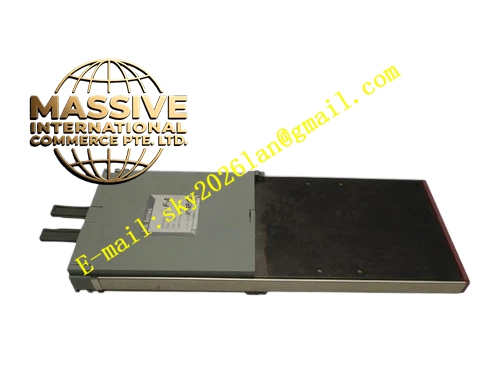

Foxboro P0400YL
Technical Specifications
- Component Model: P0400YL
- System Platform: Foxboro I/A Series DCS
- Function: Discrete DC I/O Signal Conditioning and Conversion
- Communication: Standard Industrial Fieldbus Protocols
Functional Features
- Bidirectional Signal Processing: 8 DI + 8 DO in single component saves cabinet space.
- Data Integrity Assurance: Employs bit-by-bit matching technology to guarantee accurate data transmission.
- Software Integration: Seamlessly integrates with Foxboro InTouch and Wonderware System Platform.
- Intelligent Diagnostics: Built-in real-time diagnostics for wire break and short circuit detection.
Application Scenarios
Simultaneous switch status monitoring and control output for solenoid valves, relay driving, and safety interlocks.
Performance Parameters
- Electrical Isolation: High-impedance isolation between channels and the bus.
- Response Time: Millisecond-level capture and execution.
- Protection Rating: IP20
Material Composition
Industrial-grade flame-retardant housing with high-reliability optocoupler/relay isolation circuits. Terminal blocks feature premium conductive materials.
Structural Characteristics
Standard fieldbus module design with clear channel labeling and LED indicators. Secure backplane connector ensures tight mechanical and electrical coupling.
Working Principle
Input captures contact/voltage signals via optocoupler isolation for controller transmission. Output receives digital commands, isolates and amplifies to drive field actuators.
Installation Requirements
Mount on a compatible FBM baseplate. Use shielded cables with cabinet-side grounding.
Precautions for Use
Verify signal types and terminal definitions. Never short-circuit outputs. Place node in “Maintenance Mode” before replacement.
