Description

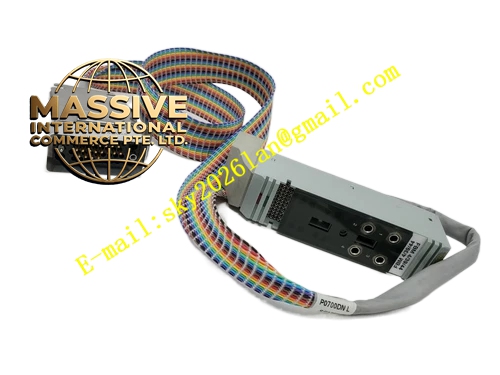

Foxboro PO700HU
Technical Specifications
- System Architecture: Distributed control processor.
- Communication Network: Integrated fiber optic 100Mbps Ethernet interface.
- Protocol Support: Modbus TCP/IP, ControlNet, Ethernet/IP.
- Redundancy Design: Supports controller hot-standby redundancy and power redundancy.
Functional Features
- Multi-Function Control: Executes regulation, logic, timing, and sequence control.
- Real-Time Data Acquisition: Collects process variables in real time with alarm detection and notification.
- Seamless Switching: Ensures continuous system operation through seamless switching upon primary module hardware failure.
Application Scenarios
Applicable in large-scale refineries, chemical plants, and power plants requiring extremely high system availability for critical process control.
Performance Parameters
- Data Consistency: Verifies data through bit-by-bit matching technology to prevent erroneous information transmission.
- Expansion Capability: Supports large-scale I/O expansion and remote node connections.
Material Composition
Utilizes high-reliability industrial-grade electronic components paired with a die-cast aluminum housing, providing excellent electromagnetic compatibility and heat dissipation.
Structural Characteristics
- Modular Design: Supports hot-swapping for convenient online maintenance.
- Status Panel: Provides clear indicators for operating status, redundancy status, and faults.
Working Principle
The PO700HU collects data from FBM modules via the fieldbus, executes user control programs, and dispatches control commands to actuators. It synchronizes data and coordinates with host computers and other control stations via the 100Mbps Ethernet network.
Installation Requirements
- Must be installed in designated control station rack slots.
- Fiber optic communication cables must be spliced or terminated according to specifications.
- Ensure redundant power supplies are connected correctly.
Usage Precautions
- Strictly prohibited to forcefully remove the processor module while the system is running.
- Regularly perform redundancy switching tests to ensure the backup module is in a ready state.
- Firmware upgrades must be strictly conducted according to manufacturer guidelines.
