Description

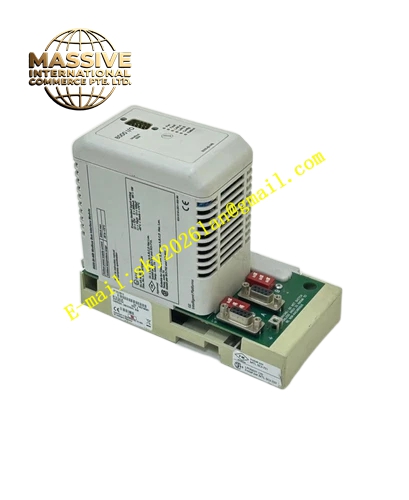

GE 8701-CA-BI
Technical Specifications:
- Brand: GE / Emerson
- Model: 8701-CA-BI
- Product Type: Multi-BIM Carrier
- Compatible System: PAC8000 I/O
- Mounting: Flat panel, T-section DIN rail, or G-section DIN rail
- Internal Bus: Railbus (carries address, data, and power lines)
Functional Features:
- Supports multiple Bus Interface Modules (BIMs)
- Interconnects BIMs, power supplies, I/O modules, and field terminals
- Snap-on field terminals for easy wiring
- Mechanical keying system to ensure safety and correct module placement
- Open architecture allowing communication with various field-buses
Application Scenarios:
- Remote I/O stations
- Distributed control systems
- Hazardous area applications (when used with appropriate I/O modules)
- General-purpose industrial automation
Performance Parameters:
- Bus Type: Internal Railbus
- Modularity: High (supports various I/O functions)
Material Composition:
- Industrial-grade conductive materials for the backplane
- Reinforced plastic housing
- Metal mounting brackets
Structural Features: The carrier features a linear design with slots for modules. It includes connectors for the internal Railbus and external field wiring.
Working Principle: The carrier distributes power and data signals via the internal Railbus to the mounted modules. It allows the BIM to communicate with the host controller via a Local Area Network (LAN).
Installation Requirements:
- Mount securely on a DIN rail or flat panel.
- Ensure adequate spacing for heat dissipation.
- Connect the expansion cable to the BIM.
Usage Notes:
- Ensure the total current consumption of mounted modules does not exceed the power supply capacity.
- Use the mechanical keying system to prevent incorrect module insertion.
- Verify the compatibility of the BIM with the host controller.
