Description

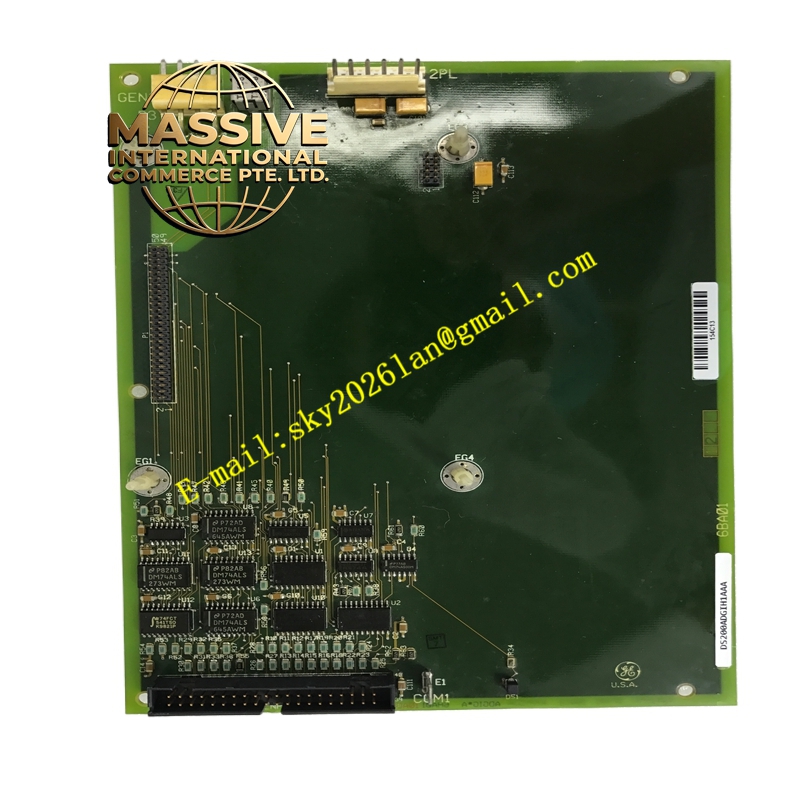

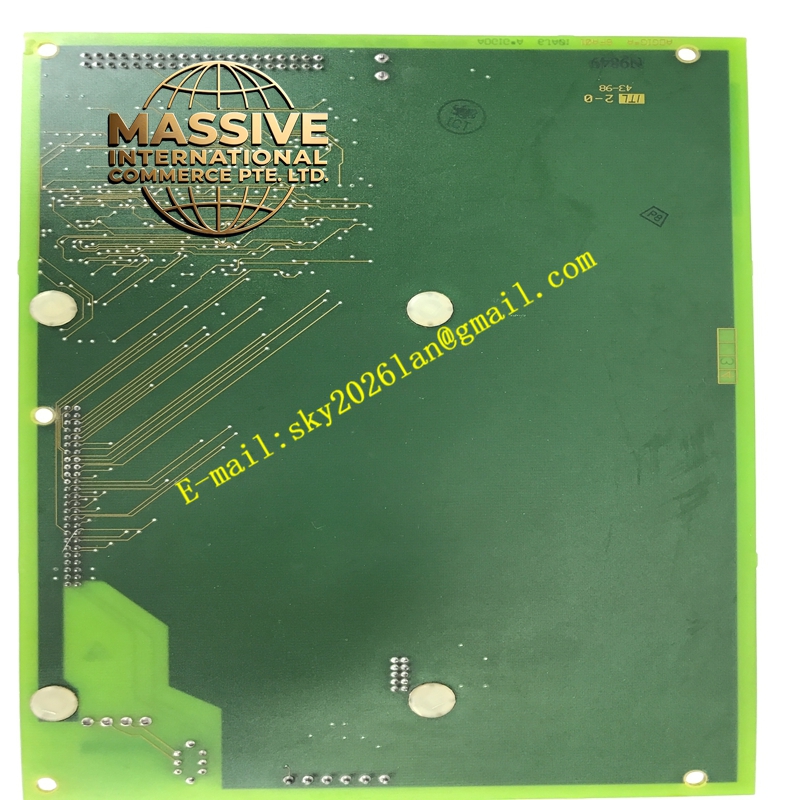

GE DS200ADGIH1A
Technical Specifications
- Manufacturer: GE Boards & Turbine Control.
- Series: Mark V DS200.
- Connectors: Features one 40-pin connector and one 6-pin connector.
- Wiring: Equipped with 60 jumper wires for flexible signal routing.
- Dimensions: 8 inches in width and 6 inches in length.
Functional Features
- Enhanced Connectivity: Expands the I/O and communication capabilities of the host controller.
- Diagnostic Testing: Incorporates multiple test points to facilitate circuit troubleshooting and validation.
- Secure Mounting: Designed with four mounting screw holes that align perfectly with standard board racks.
- System Compatibility: Improves interoperability with GE industrial equipment.
Application Scenarios
Widely utilized in heavy manufacturing, industrial automation, power generation, and complex control systems requiring reliable signal interfacing.
Performance Parameters
- Integration: Ensures seamless data and signal transfer within the control cabinet.
- Durability: High-quality structural construction designed for continuous industrial operation.
Material Composition
Constructed using high-reliability industrial-grade printed circuit boards (PCBs), precision copper wiring, and robust plastic/metal connectors.
Structural Characteristics
A compact, flat rectangular PCB featuring a dense array of jumpers, standardized edge/pin connectors, and designated diagnostic test points.
Working Principle
The board acts as a signal routing and conditioning intermediary, translating and directing electrical signals between the main drive controller and external field devices or auxiliary systems via its jumper configurations.
Installation Requirements
Designed for installation inside drive or control cabinets. It must be secured using four screws aligned with the board rack. Only qualified service personnel with calibrated testing equipment should perform installation or circuit testing.
Usage Precautions
Strict electrostatic discharge (ESD) precautions are mandatory. Personnel must wear a grounded wrist strap. Avoid walking while holding the board to prevent static buildup, and always store the board in an antistatic bag when not in use.
