Description

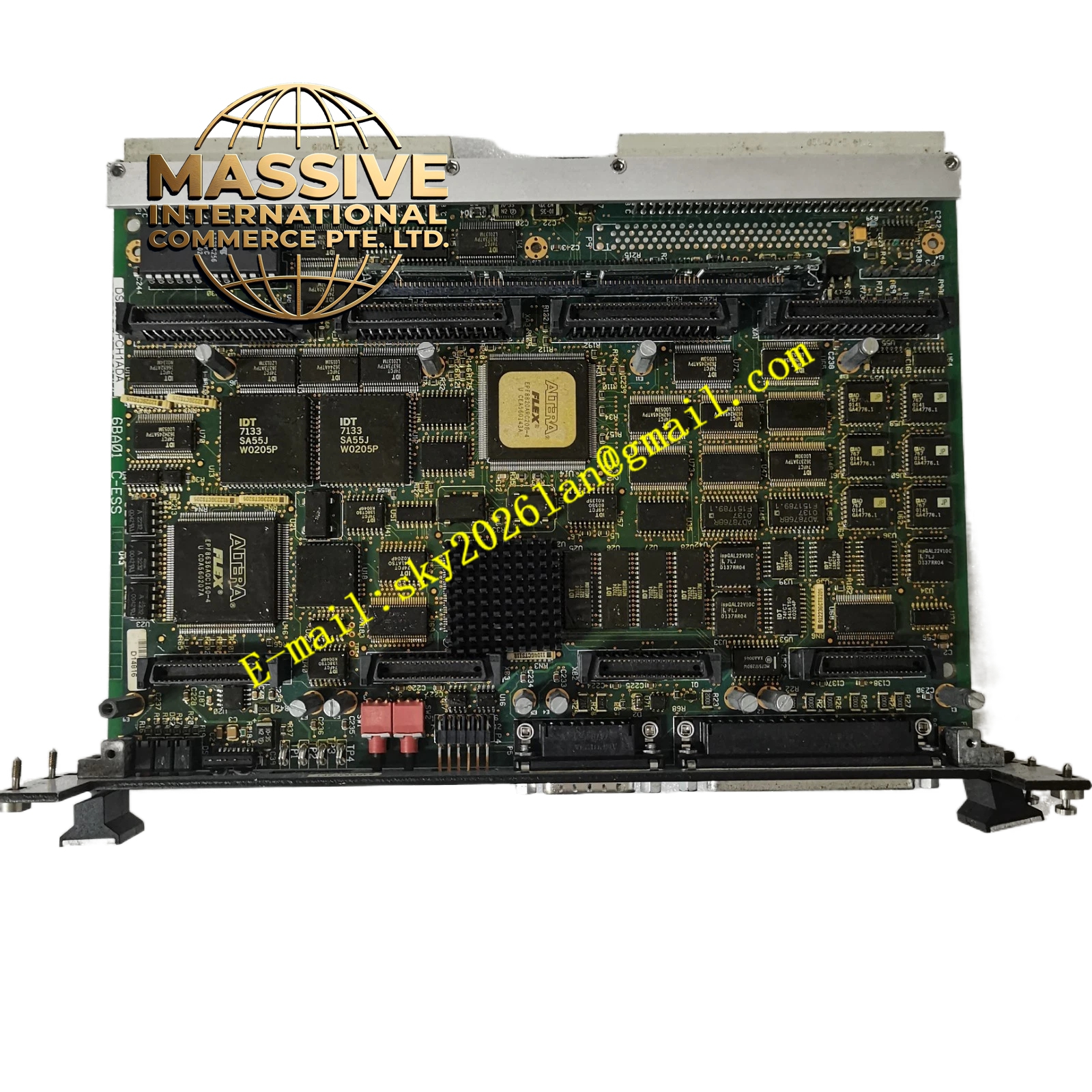

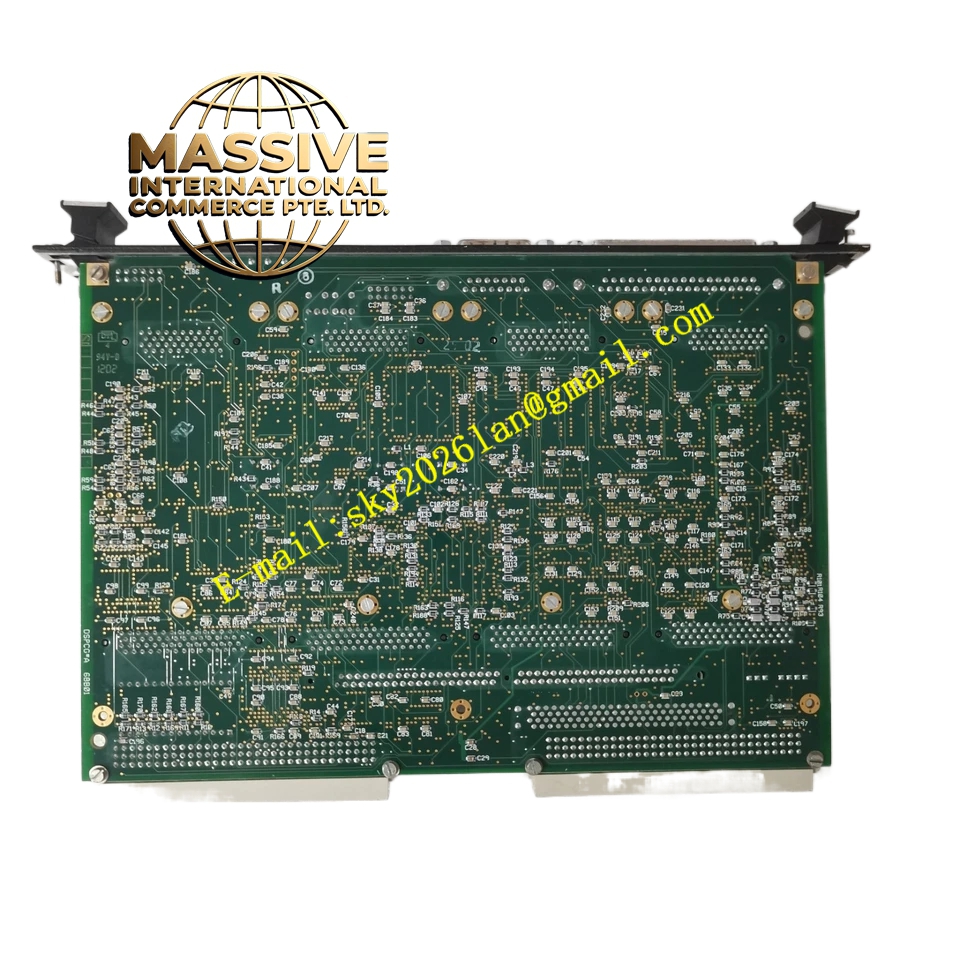

GE DS200DSPCH1A
Technical Specifications
- Product Series: GE DS200 Drive Control Series.
- Board Type: Digital Signal Processor / Control Board.
- Processing Core: High-speed DSP for real-time control.
Functional Features
- Advanced Control Algorithms: Executes PWM generation, vector control, and PID loops.
- Real-Time Processing: Microsecond-level response to feedback signals.
- System Diagnostics: Continuous monitoring of drive health and fault detection.
Application Scenarios
AC and DC motor drives, industrial process control, and high-precision motion control systems.
Performance Parameters
- Control Loop Speed: High-bandwidth digital control loops.
- Signal Resolution: High-resolution ADC and PWM outputs.
Material Composition
High-speed digital PCB with DSP, memory, and precision analog front-end components.
Structural Characteristics
Standard DS200 board form factor with multi-pin connectors and front-panel status LEDs.
Working Principle
Reads motor feedback signals, executes control algorithms in the DSP, and generates precise PWM signals to regulate the power bridge.
Installation Requirements
- Install in the designated control slot with proper alignment.
- Connect all feedback and control signals securely.
Usage Precautions
- Handle with ESD protection.
- Do not modify firmware without authorization.
