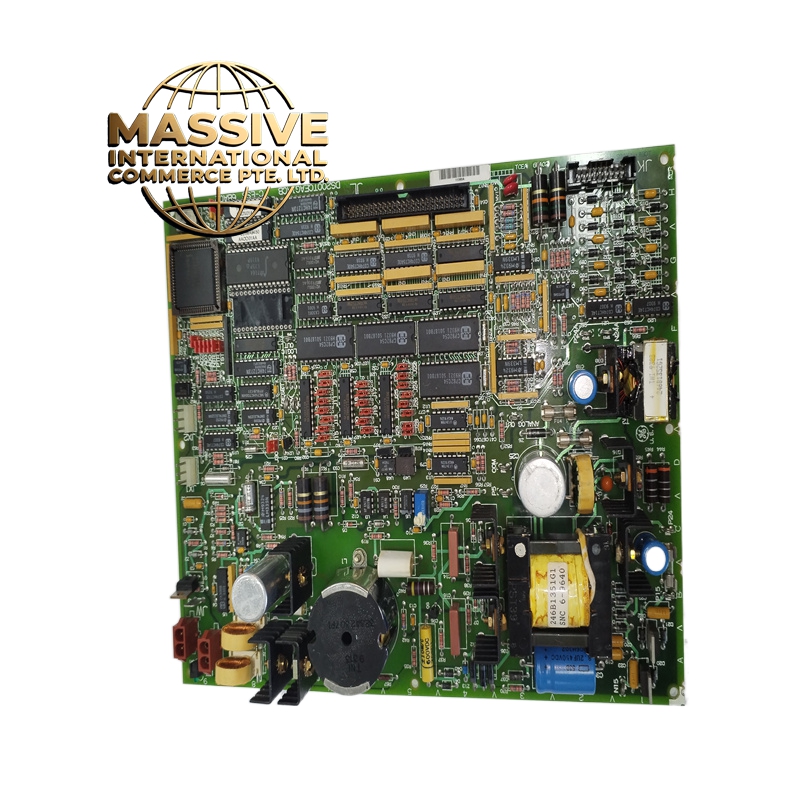

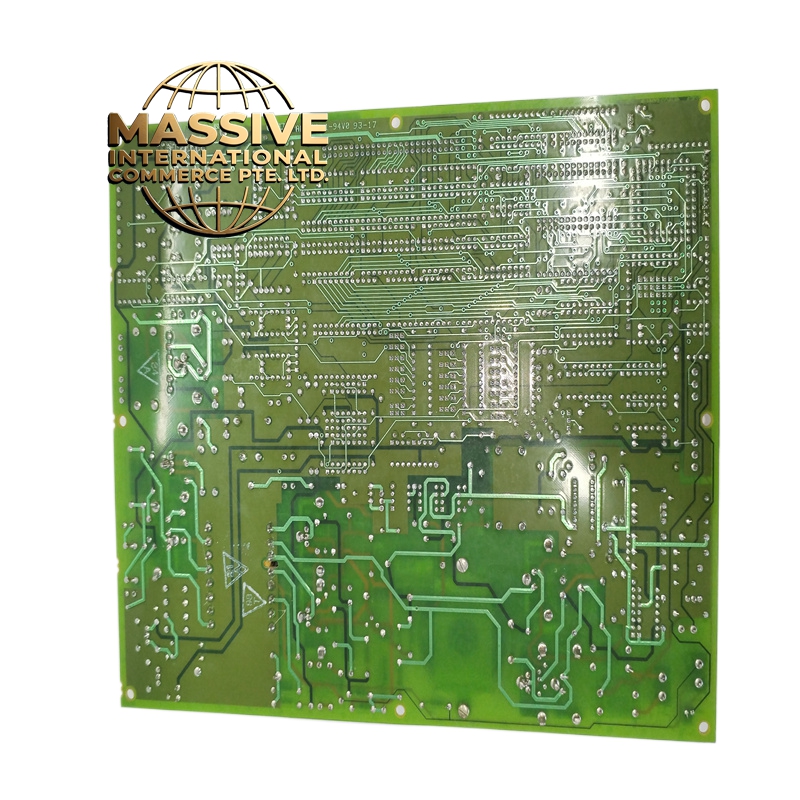

Product Overview: The GE DS200TCEAG1ACB is an expansion module designed to augment the capabilities of the main turbine control processor. It provides additional I/O capacity, specialized communication interfaces, or enhanced processing power for complex turbine control applications.

Request Quote
Category: SKU: GE DS200TCEAG1ACB

Description

GE DS200TCEAG1ACB Technical Specifications:

  • Module Type: Expansion / Auxiliary Control Board.
  • Interface: High-speed backplane connection to the main controller.
  • Capacity: Additional discrete and analog channels.
  • Suffix: ACB indicates specific configuration or component set.

Functional Features:

  • Scalability: Allows the control system to grow without replacing the main processor.
  • Specialized Functions: May include dedicated hardware for specific turbine accessories or BOP (Balance of Plant) integration.
  • Redundancy Support: Can be configured in redundant pairs for high availability.

Application Scenarios:

  • Expanding I/O for additional turbine auxiliaries.
  • Adding communication ports for third-party equipment integration.
  • Upgrading older turbine control systems with modern processing capabilities.

Performance Parameters:

  • Bandwidth: High-speed data transfer to the main controller without impacting primary control loops.
  • Reliability: Designed to match the MTBF of the primary control system.

Material Composition & Structural Characteristics:

  • Form Factor: Compact design to fit within standard GE turbine control racks.
  • Connectors: Robust backplane connectors with high pin density.

Working Principle: The board operates as a slave to the main turbine controller, receiving configuration and polling commands over the backplane. It acquires local I/O data and reports it back, or executes specialized control algorithms as directed by the main processor.

Installation Requirements:

  • Slot Compatibility: Install only in designated expansion slots.
  • Configuration: Configure the expansion board parameters in the turbine control software.
  • Power: Verify that the backplane power supply can support the additional load.

Usage Precautions:

  • Compatibility: Verify that the ACB suffix is compatible with the main controller’s firmware.
  • Loading: Do not exceed the maximum number of expansion boards supported by the system.
  • Maintenance: Treat as a safety-critical component; follow all turbine maintenance procedures.
