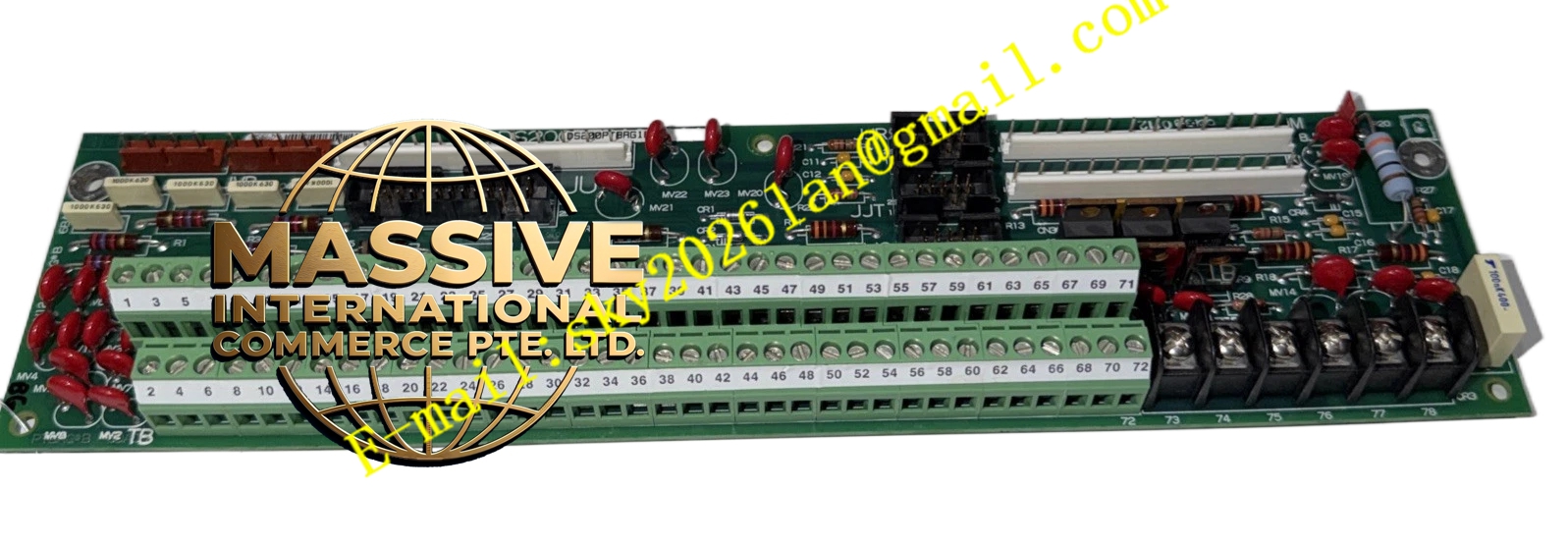

GE DS200TCQAG1A
Technical Specifications
- Board Type: RST Analog I/O Board (TCQA)
- Series Compatibility: GE Speedtronic Mark V
- Signal Types Processed: LVDT inputs, servo valve outputs, thermocouples, 4-20 mA inputs/outputs, vibration inputs, and pulse inputs.
- Hardware Jumpers: Multiple jumpers for configuring output circuits and testing.
Functional Features
- Scales and conditions 4-20 mA input signals, such as compressor stall detection and fuel flow pressure.
- Transmits conditioned signals to the STCA board via the 3PL data bus connector.
- Sends trip signals to the TCTG board via the JD connector.
Application Scenarios
Exclusively deployed in power generation plants utilizing GE Mark V gas and steam turbine control systems for precise monitoring and regulation of turbine operational parameters.
Performance Parameters
- High-precision analog signal scaling with minimal latency.
- Deterministic processing speed for real-time turbine safety and control.
Material Composition
Industrial-grade multi-layer printed circuit board (PCB) featuring advanced microprocessors and protective conformal coating for harsh power plant environments.
Structural Characteristics
Standard Mark V rack-mountable form factor equipped with multiple specialized backplane connectors and diagnostic LEDs.
Working Principle
Acquires raw analog signals from field sensors via terminal boards, applies necessary scaling and conditioning, and routes the digital data across the core bus for the central processor to execute control algorithms.
Installation Requirements
- System must be completely powered down before replacement.
- Carefully document and label all ribbon cable connections before removal.
- Match all hardware jumper settings exactly to the original board.
Usage Precautions
- Strictly observe Electrostatic Discharge (ESD) protocols.
- Ensure no loose screws or washers fall into the drive interior during installation.
- Use two hands when securing screws to prevent dropping hardware.
