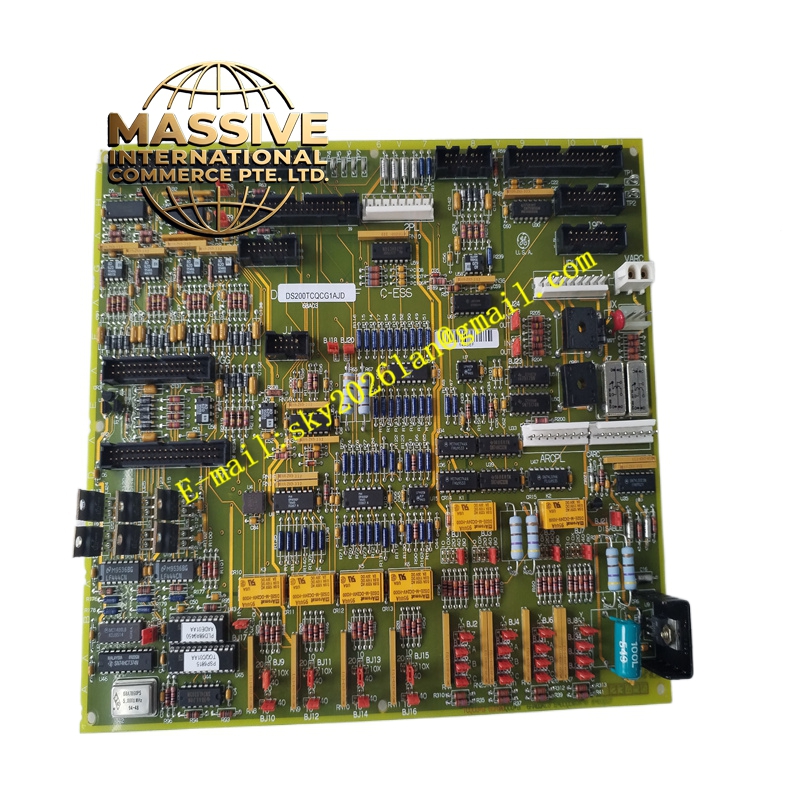

GE DS200TCQCG1AHE
Technical Specifications:
- Brand: General Electric (GE)
- Model: DS200TCQCG1AHE
- Product Type: Analog I/O Expander / RST Overflow Board
- Functional Acronym: TCQC
Functional Features:
- I/O Expansion: Bridges the gap between the main control unit and peripheral devices, facilitating seamless data transfer over the Ionet network.
- LVDT Excitation: Provides highly stable excitation signals for Linear Variable Differential Transformers (LVDTs) and LVDRs.
- Digital-to-Analog Conversion: Performs precise D/A conversion to represent called-for fuel flow and other actuator commands.
Application Scenarios:
Widely utilized in large-scale power plants, steam turbines, and wind turbine automated drive assemblies.
Performance Parameters:
- Precision: High-resolution signal processing ensuring distortion-free turbine speed control.
- Flexibility: Equipped with 24 jumpers for customized configuration based on specific facility requirements.
Material Composition:
Constructed with premium electronic components, standard PCB coating, and high-reliability connectors.
Structural Characteristics:
Features three 40-pin connectors (JFF, JE, 6PL), three 34-pin connectors, and one 16-pin connector (JC) for extensive interfacing.
Working Principle:
Expands the control system’s I/O capacity by processing analog signals from I/O cores, generating excitation voltages, and converting digital control logic into precise analog actuator signals.
Installation Requirements:
Requires the presence of TCQA and TCQB boards for proper operation. Connectors must be mated precisely to ensure reliable Ionet communication.
Usage Precautions:
When replacing a defective board, meticulously match the jumper positions of the old board to the new one. Ensure the system is powered down before installation.
