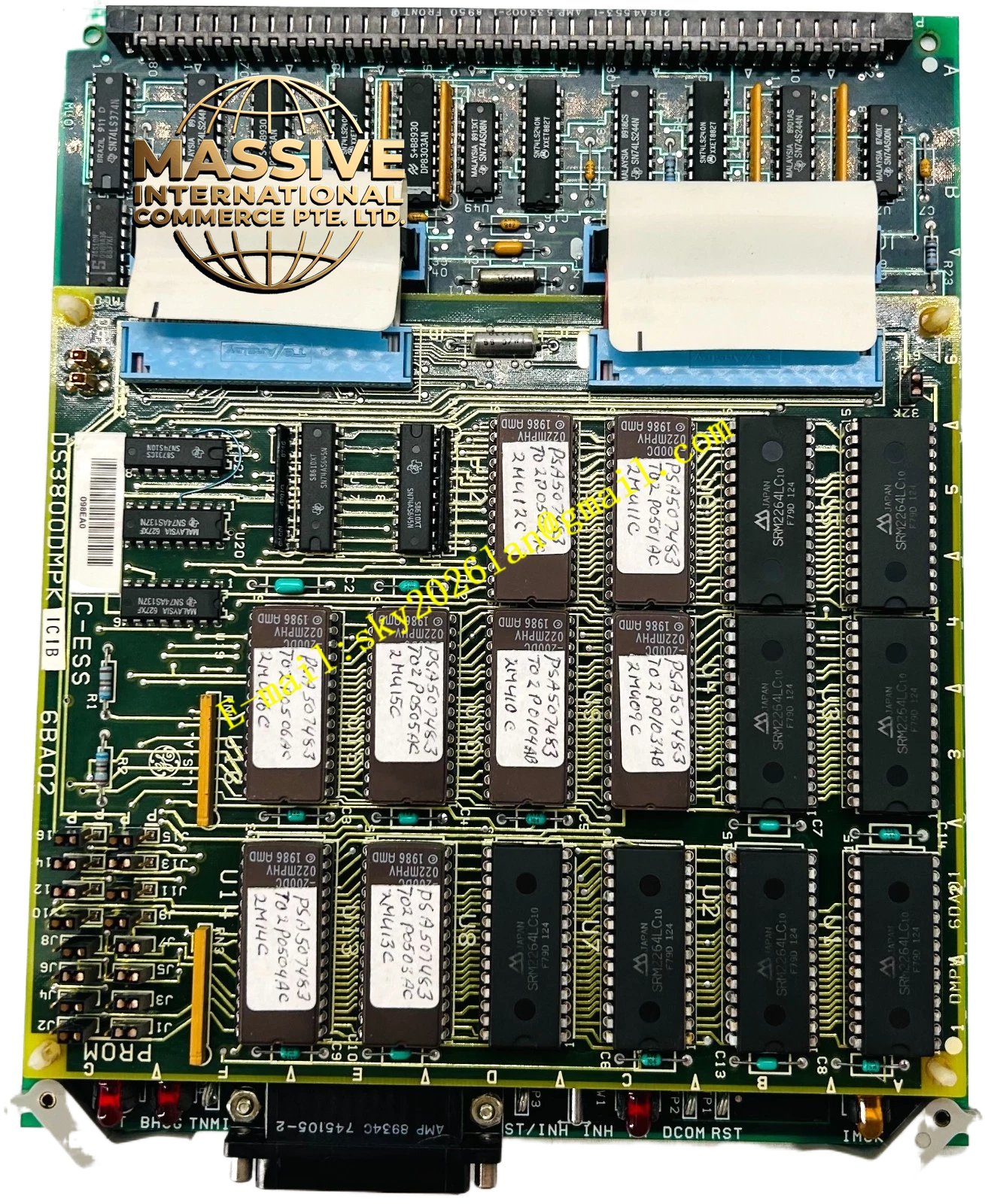

GE DS3800DMPK
Technical Specifications:
- Brand: General Electric (GE)
- Model: DS3800DMPK
- System Series: Speedtronic Mark IV
- Memory Configuration: Features 14 EPROM (Erasable Programmable Read-Only Memory) module sockets
Functional Features:
- Customizable Firmware: The board allows for the installation or removal of EPROM modules based on specific application requirements, providing high flexibility for different turbine models.
- Signal Routing: Equipped with 17 jumpers, two 34-pin ribbon cables, and two single-pin connections to manage complex internal logic and signal routing.
- Precision Regulation: Acts as the core analog and digital processing unit for turbine speed and load control loops.
Application Scenarios:
Extensively used in power generation plants utilizing GE Frame 3, 5, 6, and 7 gas turbines for speed governing, load control, and protective trip logic.
Performance Parameters:
Operates with high-speed data processing capabilities to ensure deterministic real-time control responses required for safe turbine operation.
Material Composition:
Constructed with industrial-grade multi-layer printed circuit boards (PCBs) featuring high-reliability through-hole and surface-mount components, coated with protective conformal layers.
Structural Characteristics:
Standard Mark IV board form factor featuring a dense array of EPROM sockets and jumper blocks, designed for secure insertion into the turbine control rack.
Working Principle:
The board reads programmed logic from the installed EPROMs, processes real-time sensor feedback, and executes closed-loop control algorithms to adjust fuel valves and actuators, maintaining the turbine at the desired setpoint.
Installation Requirements:
Must be inserted into the designated regulator slot in the Mark IV chassis. EPROM chips must be carefully seated in their sockets, and jumpers must be configured exactly according to the system’s engineering drawings before applying power.
Precautions for Use:
Handle EPROM modules with extreme care to avoid bending pins. Ensure proper grounding and observe strict electrostatic discharge (ESD) protocols during installation and maintenance.
