Description

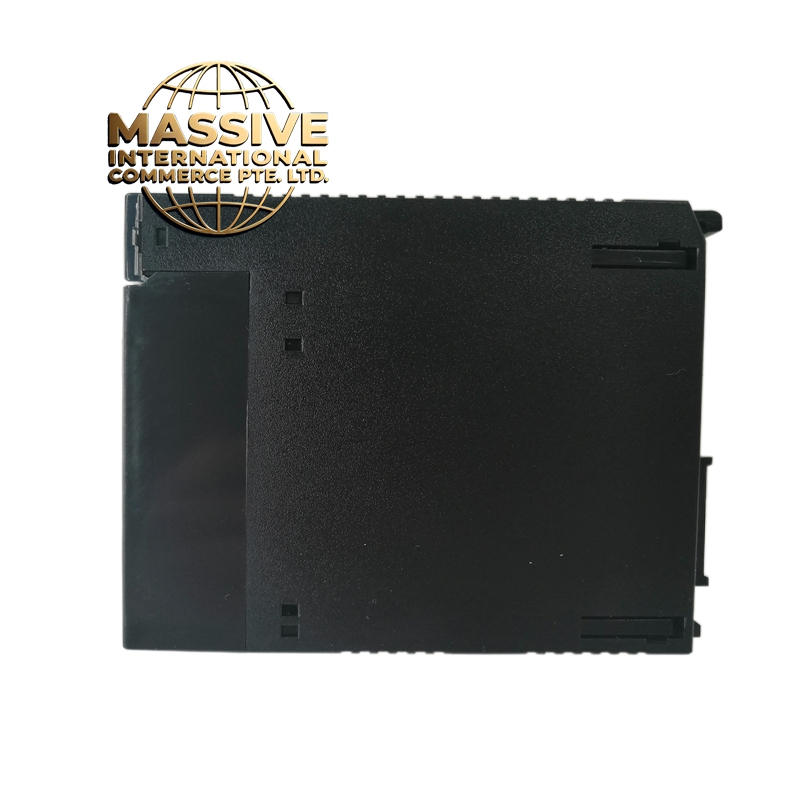

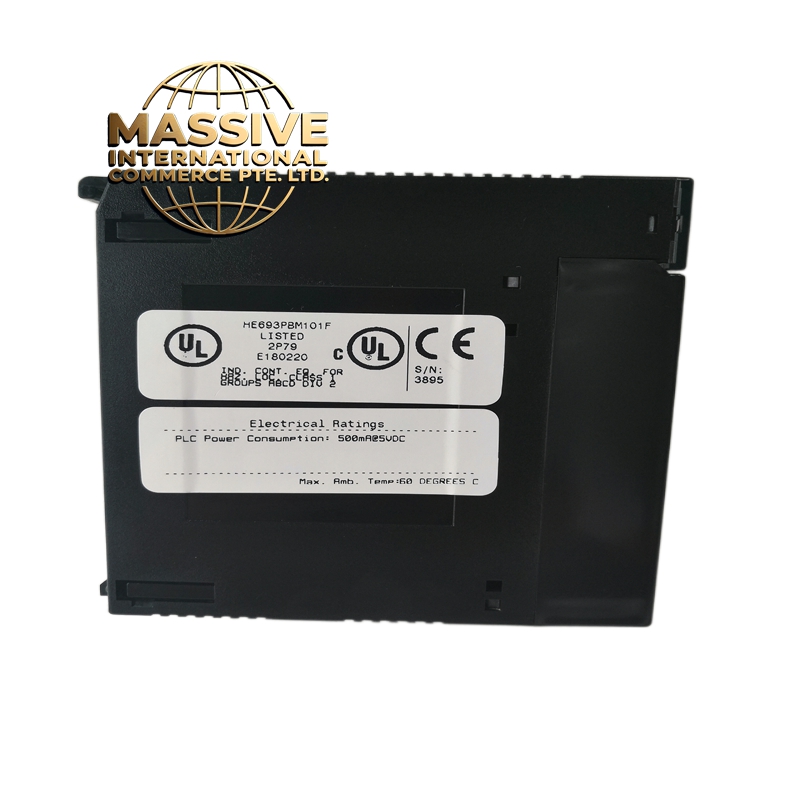

GE HE693PBM101
Technical Specifications:
- Function: Backplane bus controller and power distribution
- Bus Speed: 10 Mbps serial backplane
- Power Distribution: +5 VDC and +24 VDC to all I/O slots
- Slots Supported: Up to 16 I/O modules
- Redundancy: Supports dual-redundant bus configuration
- Diagnostics: Full bus health monitoring with error logging
- MTBF: >250,000 hours
- Operating Temp: 0°C to 60°C
Functional Features:
- Hot-swap capable bus management
- Automatic failover to redundant bus
- Real-time bus error counting and reporting
- LED indicators: Bus OK, Bus Fault, Power OK
Application Scenarios:
- All Mark VIe chassis configurations
- Required in every Mark VIe rack as the backbone component
Material Composition:
- PCB: 6-layer high-speed design with controlled impedance
- Connectors: High-reliability Eurocard backplane connectors with 100,000+ mating cycles rating
- Housing: Steel frame with EMI gasket
Working Principle: The PBM101 manages all communication traffic between the CPU and I/O modules. It uses a deterministic token-passing protocol on the serial backplane to ensure each module gets guaranteed access within a fixed time window. It also distributes regulated power to each slot. Installation Requirements:
- Must be installed in the designated bus controller slot (typically slot 0 or 1)
- All I/O modules must be seated fully in their connectors
- Verify bus termination resistors are installed at both ends
Usage Precautions:
- Never remove or insert modules with power on (unless hot-swap rated)
- Replace immediately if bus fault LED is active
- Keep firmware synchronized with CPU module
