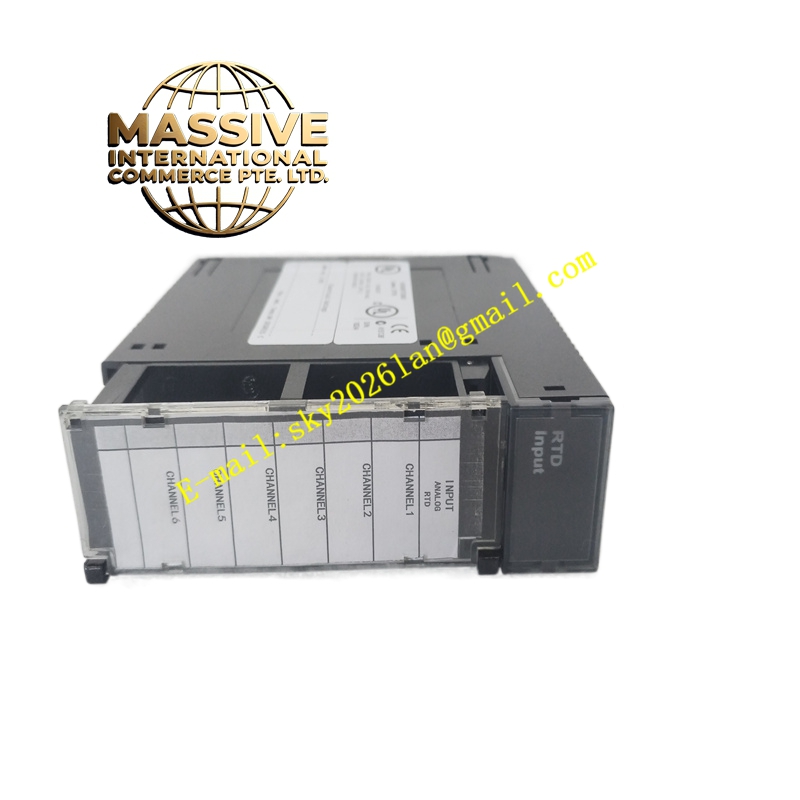

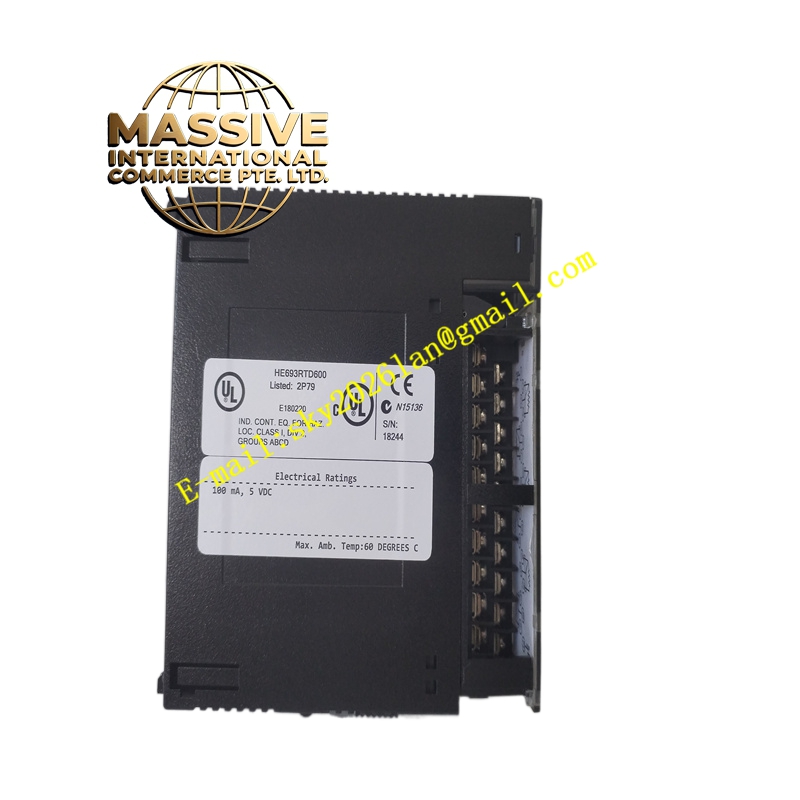

Product Overview: The HE693RTD600 is a specialized analog input module designed for the GE Fanuc Series 90-30 Programmable Logic Controller (PLC) system. This module provides precise temperature measurement capabilities by interfacing directly with Resistance Temperature Detector (RTD) sensors. It enables industrial automation systems to monitor thermal conditions with high accuracy across multiple process control applications.

Request Quote
Category: SKU: GE HE693RTD600

Description

GE HE693RTD600

Technical Specifications:

  • Input Channels: 6 isolated RTD input channels

  • Supported Types: Platinum 100 ohm (Pt100), Platinum 200 ohm (Pt200), Nickel 120 ohm (Ni120), Copper 10 ohm (Cu10), and various other RTD standards

  • Input Range: 200°C to +850°C (depending on type)

  • Resolution: 16-bit analog-to-digital conversion

  • Accuracy: ±0.1% of full scale at 25°C ambient temperature

  • Isolation: 250V AC/DC optical isolation between channels and logic

  • Update Rate: 100 milliseconds per channel

  • Power Consumption: 5V DC at 250mA from PLC backplane

  • Dimensions: Standard Series 90-30 single-slot module

Functional Features:

  • Individual channel configuration for different RTD types
  • Open-circuit and short-circuit detection for sensor diagnostics
  • Linearization algorithms built into the module firmware
  • LED status indicators for each channel showing active communication and fault conditions
  • Automatic cold junction compensation for thermocouple applications when configured
  • Digital filtering to reduce electrical noise interference

Application Scenarios:

  • Industrial furnace and oven temperature monitoring
  • Chemical reactor thermal management
  • HVAC system control in large commercial buildings
  • Power generation turbine bearing temperature surveillance
  • Food processing pasteurization temperature control
  • Pharmaceutical manufacturing environmental monitoring

Performance Parameters:

  • Temperature Drift: ±0.005% per degree Celsius

  • Common Mode Rejection: Greater than 120dB at 50/60Hz

  • Normal Mode Rejection: Greater than 60dB at 50/60Hz

  • Input Impedance: Greater than 10 megaohms

Structural Characteristics:

  • Compact single-width module design for standard Series 90-30 rack mounting
  • Removable terminal blocks for field wiring connections
  • Conformal coated circuit boards for protection against moisture and dust
  • DIN rail compatible mounting within the PLC chassis

Working Principle: The module operates by applying a constant current source to the sensor and measuring the resulting voltage drop. The resistance value is calculated using Ohm’s Law, then converted to temperature through the Callendar-Van Dusen equation for platinum RTDs or similar mathematical models for other sensor types. The 16-bit ADC converts the analog signal to digital data, which is then transmitted to the PLC processor via the backplane communication bus.

Installation Requirements:

  • Mount in standard Series 90-30 5-slot or 10-slot rack
  • Requires +5V DC power from the PLC backplane
  • Use shielded twisted pair cables for RTD connections to minimize electromagnetic interference
  • Maintain proper grounding practices with single-point ground reference
  • Allow adequate ventilation clearance around the module

Usage Precautions:

  • Ensure wiring polarity is correct for three-wire and four-wire configurations
  • Do not exceed the isolation voltage ratings during installation
  • Verify RTD type configuration matches the connected sensor to prevent measurement errors
  • Perform calibration verification annually or after severe electrical disturbances
  • Handle the module with proper electrostatic discharge protection
