Description

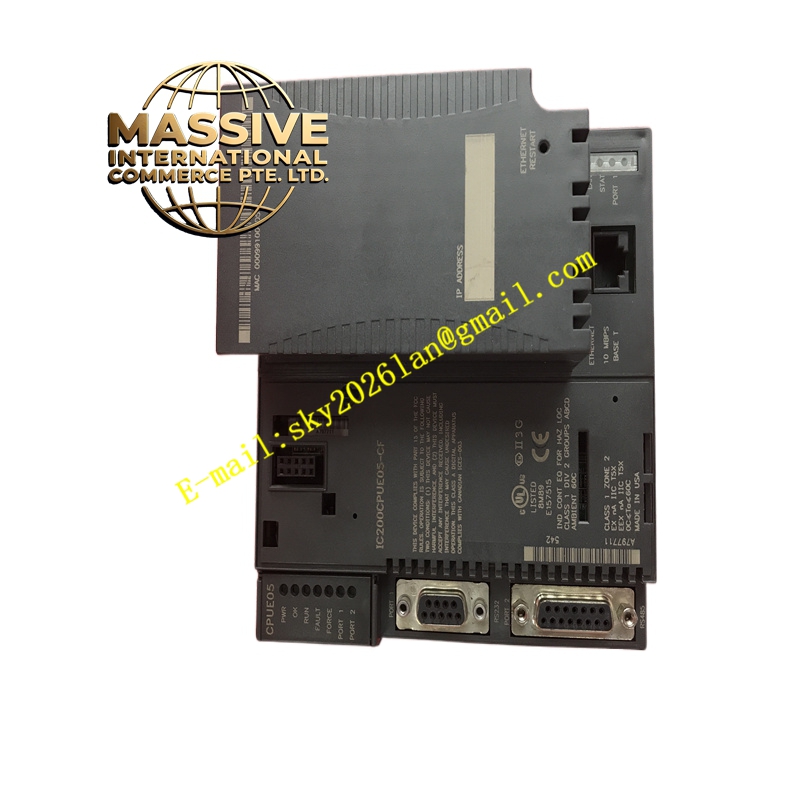

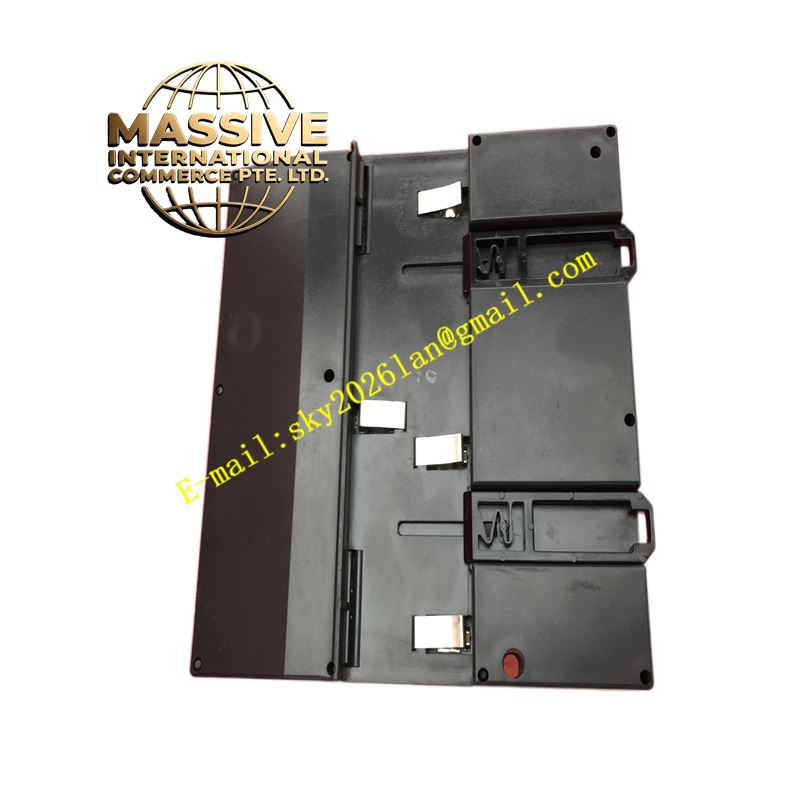

GE IC200CPUE05 Technical Specifications:
- Memory: 128K bytes user configurable.
- Boolean Execution Speed: 0.8 ms/K.
- Communication Ports: One RS-232 port, one RS-485 port, and one 10Mbps Ethernet port (RJ45).
- Max I/O: Supports up to 2048 I/O points.
- Power: Draws 3.3V and 5V directly from the backplane; no external power supply required.
Functional Features:
- Integrated Ethernet: Supports SRTP, EGD (Ethernet Global Data), and Modbus TCP (on BE firmware versions) for seamless network integration.
- Comprehensive Diagnostics: Front-panel LEDs indicate Power, OK, Run, Fault, Force, and Port statuses for rapid troubleshooting.
- Data Retention: Features a super capacitor that maintains data and real-time clock for up to 1 hour during power loss, with optional battery backup for up to 6 months.
- Security: Supports program password protection to prevent unauthorized access or modifications.
Application Scenarios:
- Packaging machinery and material handling systems.
- Water and wastewater treatment plants.
- HVAC and building automation systems.
- Upgrading legacy PLCs to support modern Ethernet-based SCADA networks.
Material Composition & Structural Characteristics:
- Form Factor: Compact, tool-less DIN rail mounting design.
- Connectors: Recessed RJ45 Ethernet port to protect against physical damage; robust DB9 and DB15 serial connectors.
- Components: High-reliability industrial-grade microprocessors and memory ICs.
Working Principle: The CPU executes the user logic stored in its flash memory, scanning inputs, processing boolean and mathematical instructions, and updating outputs. It manages data traffic across the backplane to I/O modules and handles network communications concurrently using dedicated hardware for Ethernet and serial protocols.
Installation Requirements:
- Baseplate: Must be installed in the leftmost slot of a VersaMax baseplate.
- Network Cabling: Use CAT5e or higher shielded cable for Ethernet connections, and properly terminated shielded cables for RS-485.
- Grounding: Ensure the CPU ground terminal is connected to a clean earth ground.
Usage Precautions:
- Firmware Compatibility: Verify the firmware version (e.g., AA, AB, AC, AD, BE) matches the requirements of your programming software and network protocols.
- Heat Dissipation: Do not block the ventilation grilles on the CPU module.
- Battery Replacement: Replace the backup battery before it is completely depleted to prevent loss of real-time clock and memory data.
