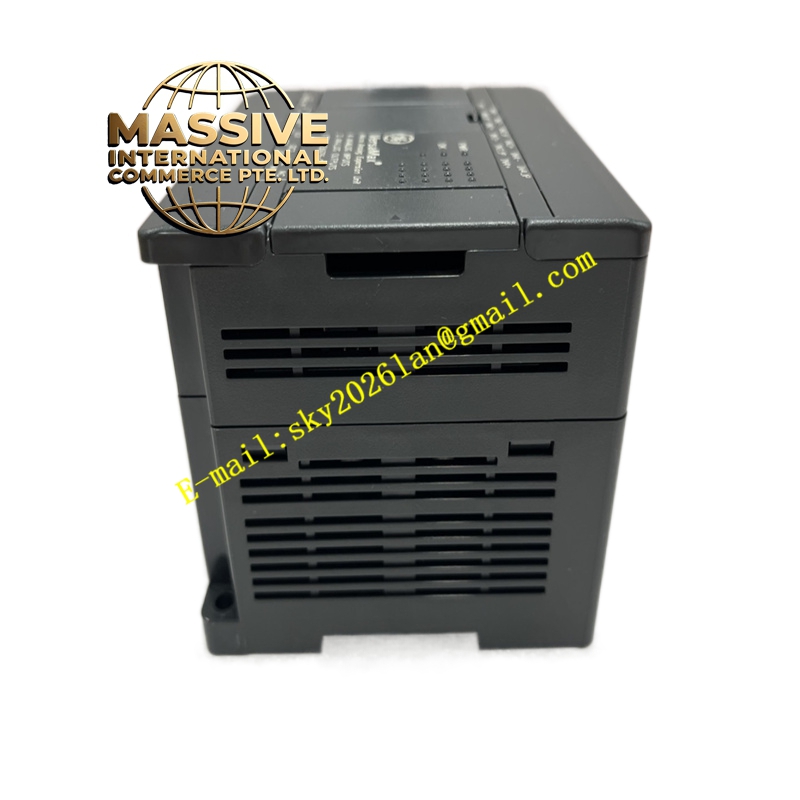

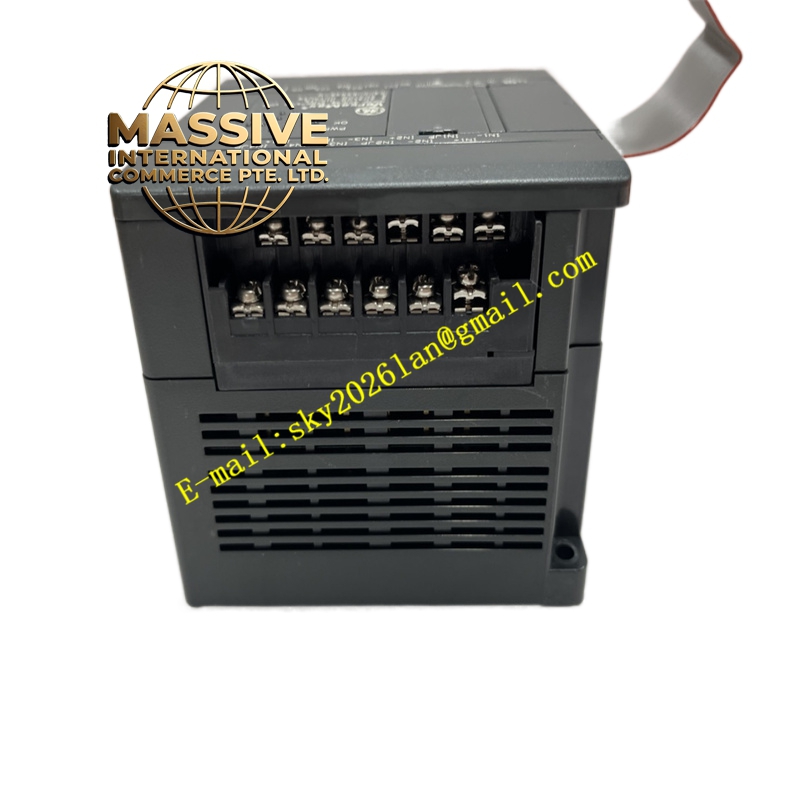

GE IC200UEX626
Technical Specifications:
| Parameter | Specification |
|---|---|
| Product Series | VersaMax Micro |
| Module Type | Analog Expansion Module |
| Total I/O Channels | 6 (4 Analog Inputs + 2 Analog Outputs) |
| Power Supply | 24VDC |
| Input Voltage Range | 19.2VDC to 30VDC |
| Input Current | 0.1A |
| Recommended Input Power | 3W |
| Maximum Startup Current | 2.5A/1ms |
| Analog Resolution | 12-bit |
| Dimensions | 95mm x 90mm x 76mm |
Functional Features:
- Supports programmable gain and offset configuration for each channel
- Compatible with various PLC controller types for seamless integration
- Designed for cost-effective system expansion with easy maintenance
- Provides sensor power output of 200mA at 24VDC
- Includes communication cable IC200CBL501 in package
Application Scenarios:
- Paper and printing industry applications
- Process control systems in manufacturing plants
- Machine control and robotics systems
- Facility automation and building management
- CNC machinery control operations
- Oil and gas processing facilities
- Water treatment and environmental protection systems
- Rail transit control applications
Performance Parameters:
| Parameter | Value |
|---|---|
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Tolerance | 5% to 95% non-condensing |
| Input Signal Range | 0-10VDC or 4-20mA configurable |
| Output Signal Range | 0-10VDC or 4-20mA configurable |
| Accuracy | ±1% of full scale |
Construction Characteristics:
- Rugged industrial-grade housing for harsh environments
- DIN rail mounting compatible design
- Color-coded terminal connections for simplified wiring
- LED status indicators for module monitoring
Installation Requirements:
- Requires 24VDC power supply with minimum 3W capacity
- Mount on standard DIN rail in control cabinet
- Ensure proper grounding for EMI protection
- Use provided communication cable for PLC connection
- Maintain ambient temperature within specified range
Usage Precautions:
- Verify power supply voltage before connection
- Do not exceed maximum input current ratings
- Follow proper ESD precautions during installation
- Perform periodic maintenance checks per manufacturer guidelines
- Ensure adequate ventilation around installed modules
