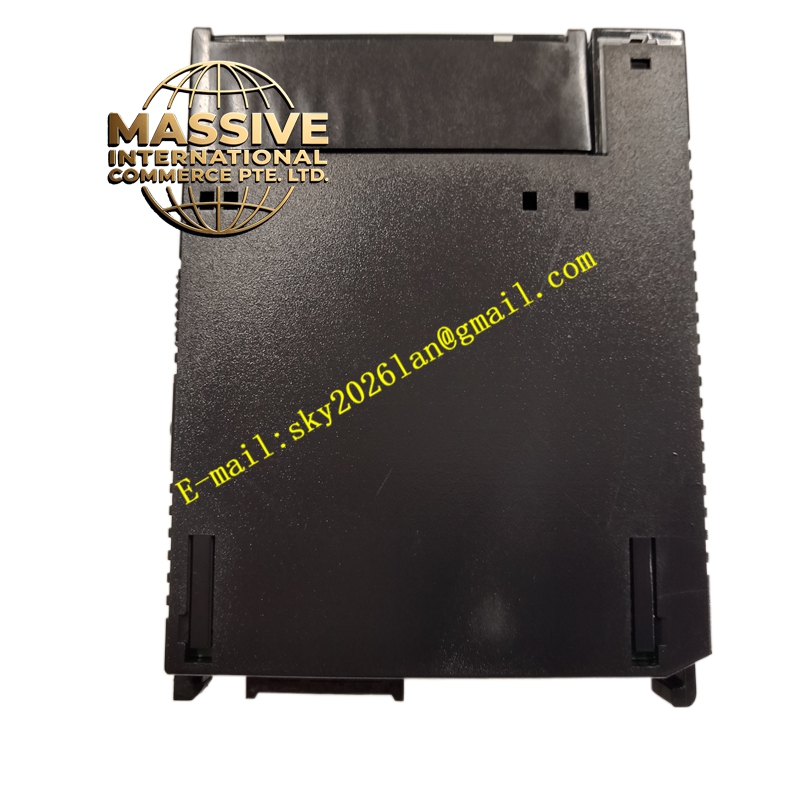

GE IC693BEM331 - Image 2

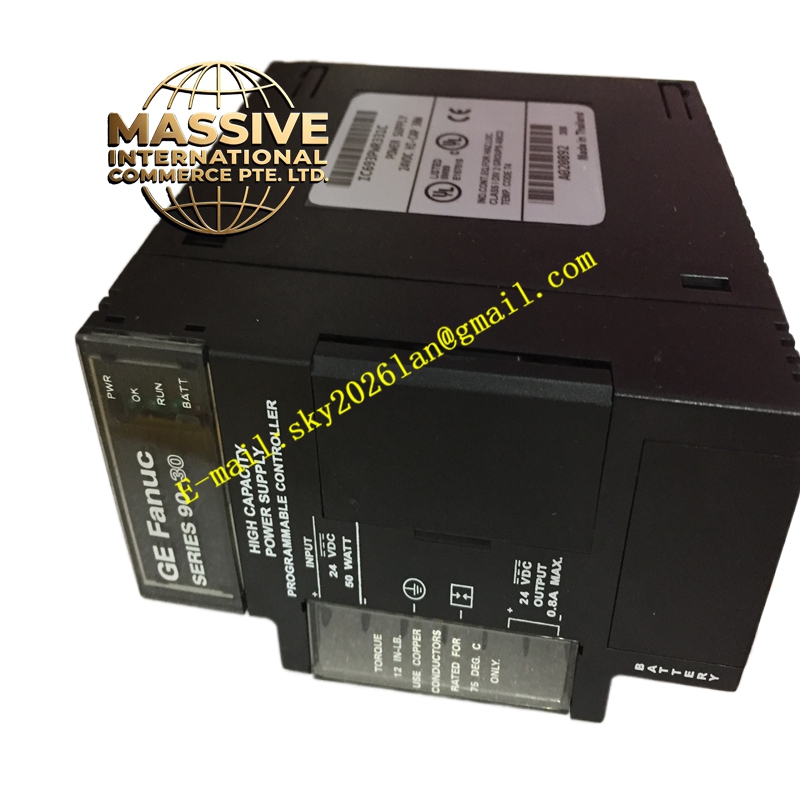

GE IC693BEM331

Product Overview: The GE IC693BEM331 is a core communication module within the GE Fanuc Series 90-30 Programmable Logic Controller (PLC) family. Functioning as a Genius Bus Controller (GBC), it provides a dedicated interface between the 90-30 PLC CPU and the proprietary Genius I/O serial bus. It is specifically designed to manage data exchange with Genius discrete, analog, and special-purpose field devices, as well as remote I/O branches, ensuring robust and reliable industrial automation communication.

Request Quote
Category: SKU: GE IC693BEM331

Description

GE IC693BEM331 Technical Specifications:

  • System Compatibility: GE Fanuc Series 90-30 PLC.
  • Compatible CPUs: IC693CPU311K, 321K, 331L (or higher versions), and IC693CPU313, 323, 340, 341, 350, 351, 352, 360, 363, and 364 (any version).
  • Firmware Requirement: CPU firmware version 5.0 or higher is strictly required.
  • Communication Bus: Proprietary Genius I/O Serial Bus.
  • Data Capacity: Handles up to 128 bytes of input and 128 bytes of output data across the bus.
  • Device Capacity: Supports communication with up to 31 Genius I/O devices on a single bus.
  • System Limit: A maximum of 8 Genius Bus Controllers (or enhanced Genius Communication Modules) can be installed in a single 90-30 PLC system.

Functional Features:

  • Versatile Device Integration: Seamlessly communicates with Genius discrete I/O (e.g., motor starters, limit switches), analog I/O (e.g., pressure transmitters, temperature sensors), and special-purpose field devices.
  • Remote I/O Support: Interfaces with remote I/O branches, including Series 90-70 I/O racks (via Remote I/O Scanner modules) and Field Control I/O Stations (supporting up to 8 additional field control modules via Bus Interface Units).
  • Handheld Monitor Support: Allows connection and configuration via Genius Hand-Held Monitors (HHM) for portable diagnostics and parameter setting.
  • Multi-Host Communication: Supports multi-host communication utilizing global data and datagrams.
  • No Hardware Switches: Configuration is entirely software-driven via Logicmaster 90 programming software or handheld programmers, requiring no manual DIP switches or jumpers on the module.

Application Scenarios:

  • Chemical and Petrochemical: Real-time monitoring and control of reactors and distillation towers, interfacing with pressure and temperature sensors.
  • Oil and Gas Extraction: Remote monitoring of wellheads and pumping units, adjusting operational parameters based on real-time yield and pressure data.
  • Electronics Manufacturing: Coordinating automated assembly lines, including pick-and-place machines and soldering equipment.
  • Power Generation: Interfacing with relay protection devices and automated switchgear to monitor transformers and circuit breakers in substations.

Performance Parameters:

  • Data Transfer Rate: Supports high-speed serial communication up to 1.5 Mbps.
  • Data Processing: Efficiently processes up to 128 bytes of input/output data per bus cycle.
  • Diagnostic Capabilities: Provides detailed status bits and fault reporting directly to the 90-30 PLC CPU for rapid troubleshooting.

Material Composition & Structural Characteristics:

  • Enclosure: Ruggedized industrial housing designed to protect internal circuitry from direct water exposure, high humidity, and extreme temperatures.
  • Dimensions: Compact form factor measuring approximately 110mm x 66.8mm x 50mm.
  • Weight: Lightweight design at approximately 230 grams.
  • Indicators: Front panel features dedicated LED indicators, including an “OK” LED (solid green indicates normal operation post-power-up diagnostics) and a “COM” LED (solid during active communication, flashing indicates intermittent bus errors).

Working Principle: The IC693BEM331 acts as a protocol gateway between the 90-30 PLC backplane and the Genius serial bus. It polls connected Genius devices and remote I/O stations, collecting input data and mapping it to the PLC’s memory. Simultaneously, it reads output commands from the PLC memory and transmits them to the respective field devices. The module continuously monitors bus integrity, utilizing its LED indicators to provide immediate visual feedback on communication health and hardware status.

Installation Requirements:

  • Slot Placement: Install the module in an available slot within the Series 90-30 PLC rack.
  • Wiring Topology: Connect the SER1 and SER2 terminals to the SERIAL A1 and A2 terminals of the first remote device, daisy-chaining subsequent devices. Terminate both ends of the bus with 100-ohm resistors.
  • Shielding: Connect the SHDOUT terminal to the SHIELDIN of the first remote module, continuing the shield daisy-chain through SHIELDOUT to SHIELDIN on subsequent modules.
  • Software Configuration: Use Logicmaster 90 or a Genius Hand-Held Monitor to configure global data, set baud rates, and assign remote station addresses.

Usage Precautions:

  • Mutual Exclusivity: The IC693BEM331 cannot be mixed with Genius Communication Modules (GCM) in the same PLC system.
  • Electrical Safety: Only qualified personnel should perform wiring and maintenance. Incorrect connections can lead to application failure, property damage, or severe injury.
  • Environmental Protection: Always install the module within a protective control enclosure to shield it from moisture, conductive dust, and extreme thermal conditions.
  • Troubleshooting: If the “OK” LED fails to illuminate after power-up, or if the “COM” LED does not flash during CPU RUN mode, the module may have a hardware fault or a bus wiring issue.
