Description

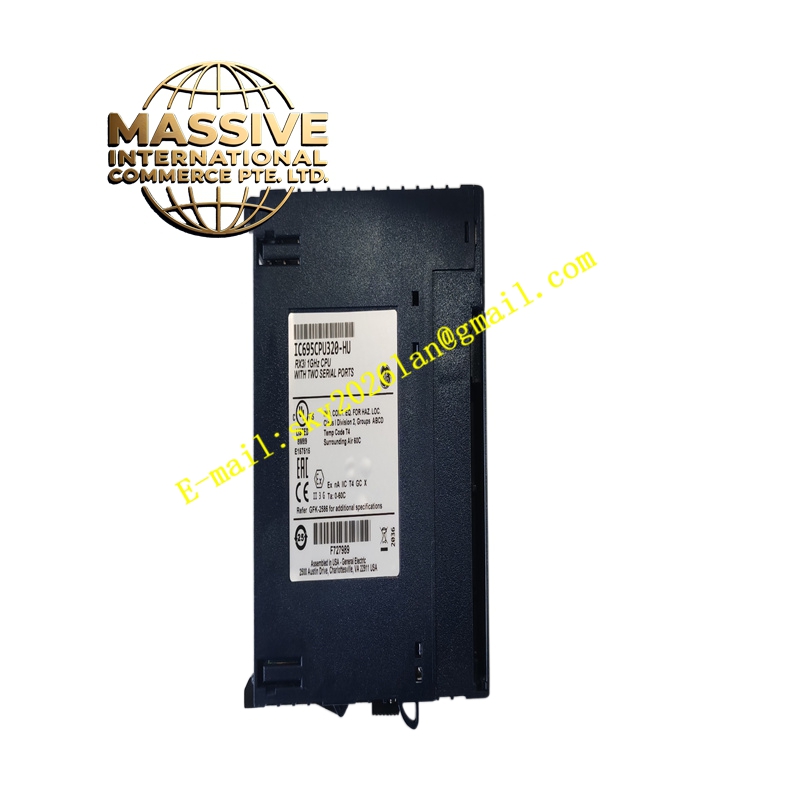

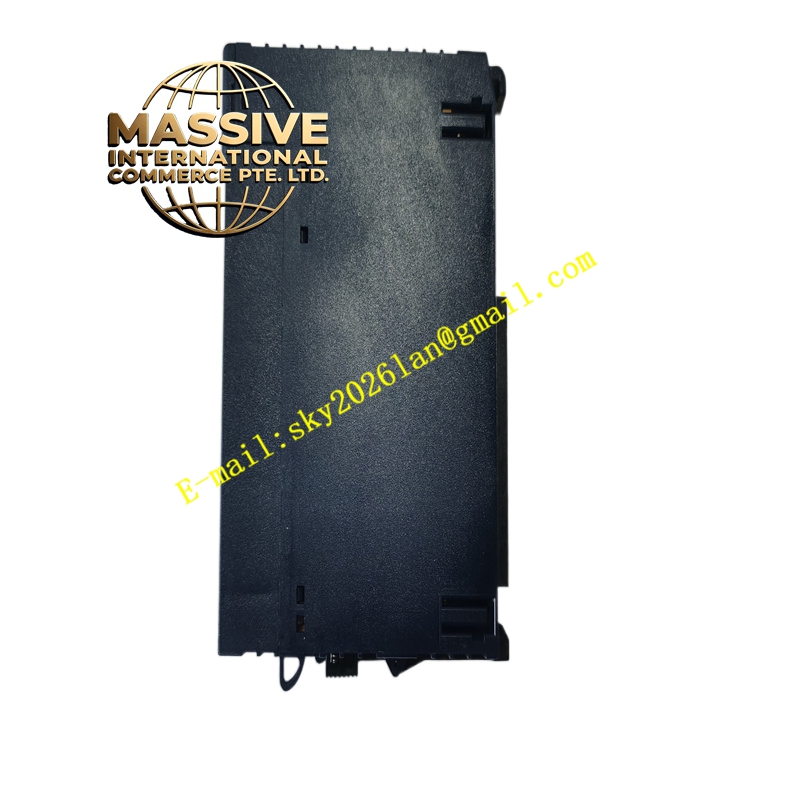

GE IC695CPU320HU
- Technical Specifications:
- Processor: 1 GHz Intel Celeron M
- User Memory: 64 MB RAM (battery-backed); 64 MB non-volatile flash
- Backplane: Dual-backplane (PCI and 90-30 style serial)
- Serial Ports: 2 × RS-232/RS-485
- Supported Serial Protocols: SNP, Serial I/O, Modbus RTU Slave
- Operating Temperature: 0 °C to 60 °C
- LEDs: 8 status indicators on the front panel
- Battery: Supports lithium smart battery (IC695ACC302) and 90-30 auxiliary battery (IC693ACC302)
- Functional Features:
- High-speed Boolean execution (typical 0.047 ms per 1,000 instructions)
- Supports up to 512 program blocks (max 128 KB per block)
- Automatic error checking and correction
- Compatible with most Series 90-30 I/O modules (supports staged migration)
- Runs under Proficy Machine Edition for logic development, motion, and HMI
- Application Scenarios: Machine control, packaging lines, textile machinery, HVAC systems, and general manufacturing automation where robust CPU performance and legacy I/O compatibility are required.
- Performance Parameters:
- Discrete I/O capacity up to 32K bits (%I/%Q)
- Analog I/O capacity up to 32K words (%AI/%AQ)
- Program storage configurable between data and program memory
- Material and Structural Characteristics:
- Industrial-grade card material and connectors; shielded enclosure
- Standard RX3i double-slot module width with front-panel LEDs and serial ports
- Working Principle: Executes control logic, manages I/O via dual backplane (PCI and 90-30 serial), and communicates via embedded serial ports supporting SNP and Modbus RTU.
- Installation Requirements:
- Mount in an RX3i universal backplane (e.g., IC695CHS012 or IC695CHS016)
- Requires appropriate RX3i power supply and battery assembly
- Ensuring proper grounding and spacing for thermal convection
- Usage Notes:
- Verify serial port wiring polarity for RS-232/RS-485
- Use compatible battery modules to retain RAM data
- Program via Proficy Machine Edition; maintain proper firmware versions
