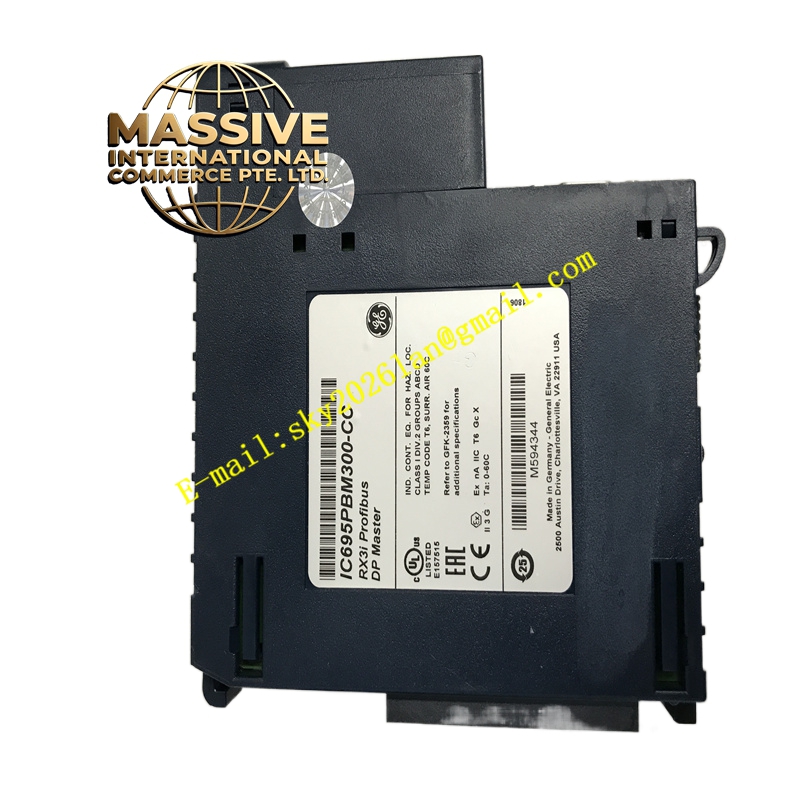

GE IC695PBM300
- Technical Specifications:
- Port: 1 × RS-485 PROFIBUS DP Master (9-pin Sub-D)
- Supported Slaves: Up to 125
- Data per Slave: Up to 244 bytes Input and 244 bytes Output
- Total Data Capacity: Up to 3584 bytes Input; 3584 bytes Output
- Data Rates: 9.6 kbit/s, 19.2 kbit/s, 93.75 kbit/s, 187.5 kbit/s, 500 kbit/s, 1.5 Mbit/s, 3 Mbit/s, 6 Mbit/s, 12 Mbit/s
- Current Draw: 440 mA at 3.3 V DC
- Operating Temperature: 0 °C to 60 °C; Storage -40 °C to 85 °C
- Functional Features:
- Supports Sync and Freeze modes
- DP-V1 read, write, and alarm messages
- Network and module status LEDs per PROFIBUS standard
- Configurable via Machine Edition Logic Developer PLC; firmware upgradable via WinLoader
- Application Scenarios: Integrating third-party PROFIBUS DP devices (drives, remote I/O, valves) into RX3i systems; process and factory automation.
- Performance Parameters:
- High-speed throughput; deterministic DP cycle times
- Material and Structural Characteristics:
- Industrial-grade module; 9-pin Sub-D connector; status LEDs
- Working Principle: Acts as a PROFIBUS DP master, exchanging cyclic I/O and acyclic services with slaves over the RS-485 bus.
- Installation Requirements:
- Install in RX3i universal backplane on PCI bus
- Use PROFIBUS cabling and terminations per GFK-2301
- CPU firmware version 2.9+ required; Machine Edition SP5 Logic Developer PLC v0.2+ for configuration
- Usage Notes:
- Configure baud rate and slave addresses to match the network
- Use diagnostics to identify slave faults or cable issues
