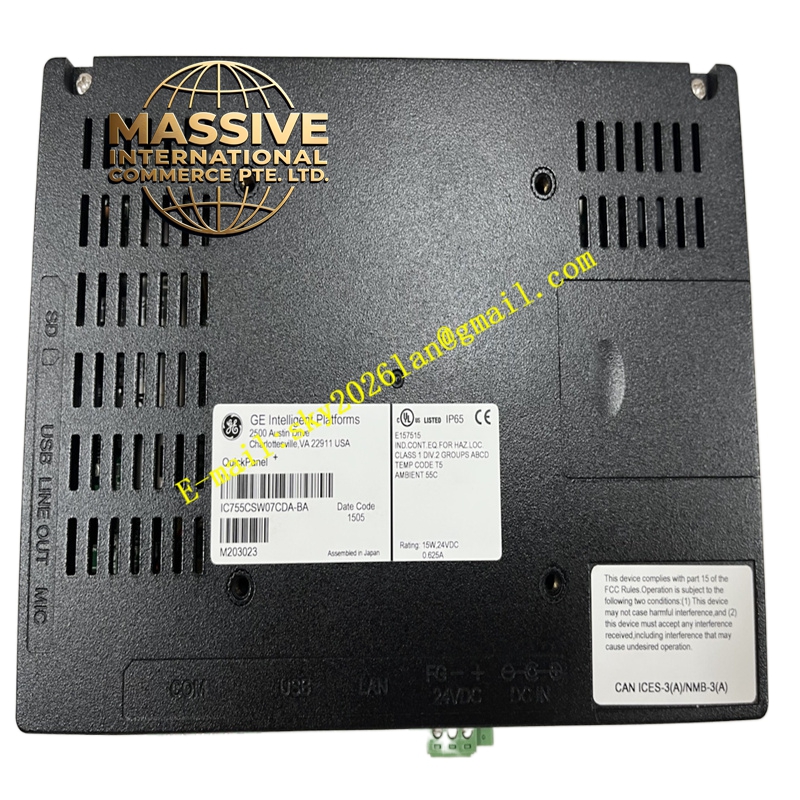

GE IC755CSW07CDA

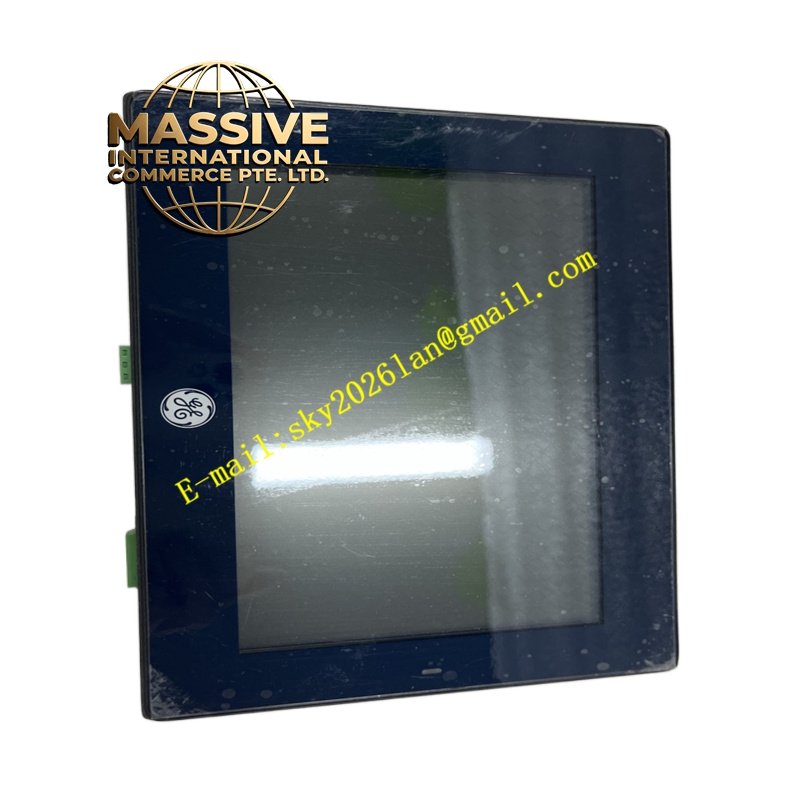

GE IC755CSW07CDA - Image 2

GE IC755CSW07CDA

Product Overview: The GE IC755CSW07CDA is a QuickPanel Control unit, distinguishing itself from standard View panels by integrating both HMI visualization and soft PLC control logic in a single device. It eliminates the need for a separate PLC for smaller, standalone machine applications.

Request Quote
Category: SKU: GE IC755CSW07CDA

Description

GE IC755CSW07CDA Technical Specifications:

  • Processor: Integrated PLC and HMI processing engine.
  • Display: 7-inch color touchscreen.
  • I/O Expansion: Support for local or remote I/O expansion modules.
  • Programming: Supports IEC 61131-3 programming languages (Ladder, Function Block).
  • Power: 24 VDC.

Functional Features:

  • All-in-One Solution: Combines logic control and operator interface.
  • Integrated I/O: Onboard discrete and analog I/O points.
  • Motion Control: Basic motion control capabilities for simple positioning tasks.
  • Data Exchange: Seamless internal data exchange between HMI tags and PLC variables.

Application Scenarios:

  • Standalone conveyor systems and material handling.
  • Pump control stations and water management.
  • OEM machine builders looking to reduce panel footprint and cost.

Performance Parameters:

  • Scan Time: Deterministic PLC scan times for reliable machine control.
  • Memory: Dedicated memory partitions for logic, HMI graphics, and data logging.
  • Cycle Time: Fast communication cycle between HMI and internal PLC.

Material Composition & Structural Characteristics:

  • Housing: Integrated rear I/O terminals and communication ports.
  • Cooling: Fanless design relying on passive convection cooling for reliability.
  • Durability: Industrial-grade components rated for continuous 24/7 operation.

Working Principle: The internal PLC engine executes the control logic in a continuous scan cycle, reading inputs and updating outputs. Simultaneously, the HMI engine runs in parallel, reading PLC variables to update the screen and writing operator commands back to PLC memory. Both processes share a common high-speed backplane.

Installation Requirements:

  • Heat Dissipation: Maintain adequate clearance around the unit as it generates more heat than a standard HMI.
  • Field Wiring: Connect field devices directly to the rear terminals, adhering to torque specifications.
  • Programming: Download both PLC logic and HMI project before commissioning.

Usage Precautions:

  • Logic Safety: Implement hardware interlocks for safety-critical functions, as software-based safety has limitations.
  • Backup: Maintain separate backups of PLC logic and HMI application.
  • Battery: Monitor PLC battery status to prevent loss of logic and retentive data.
