Description

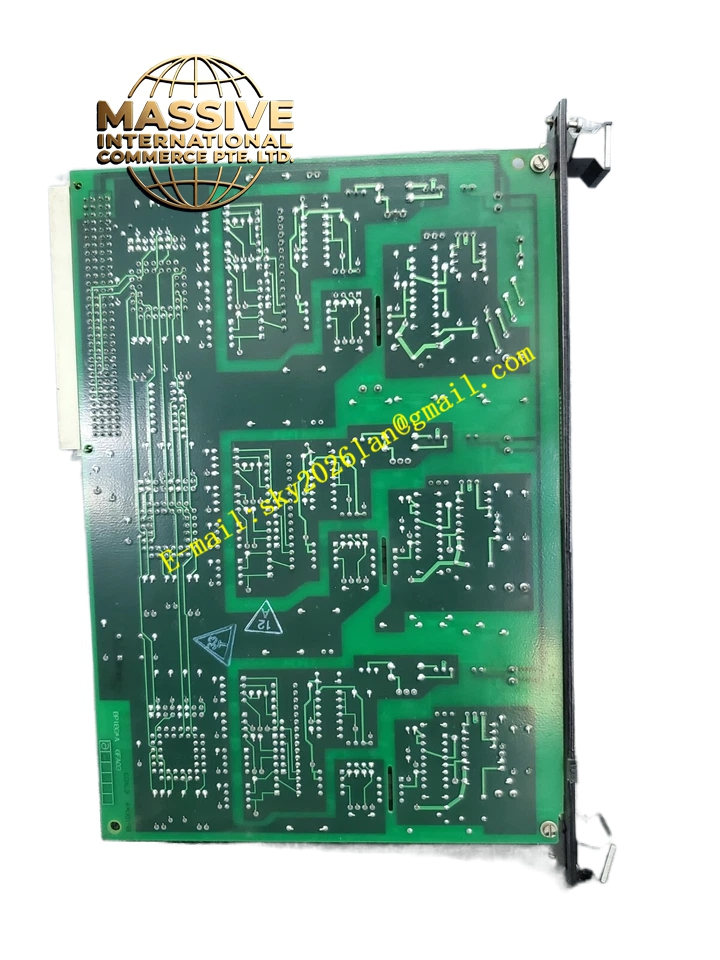

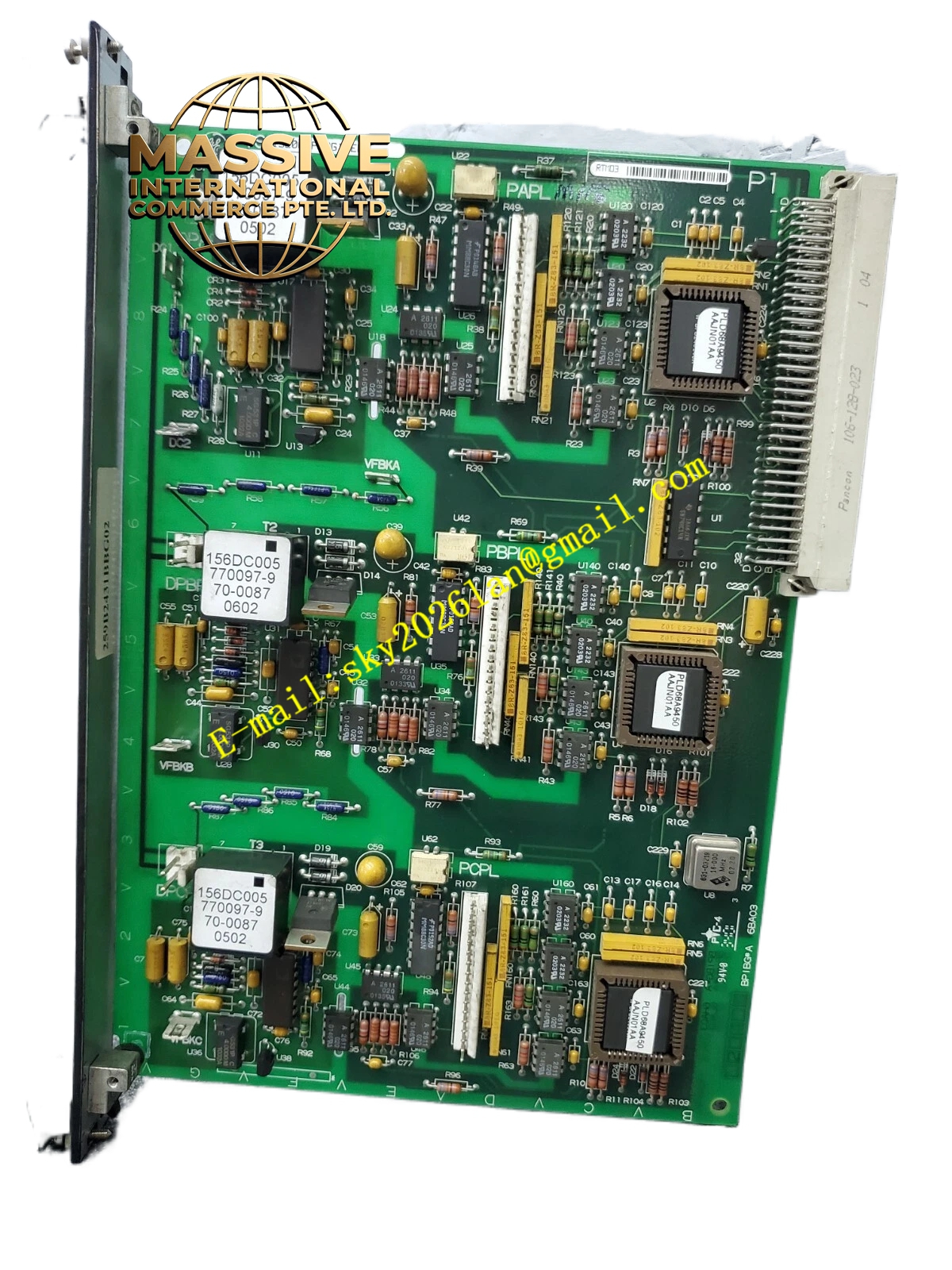

GE IS200BPIBG1A
Technical Specifications
- Board Type: Power Interface / Measurement Board
- Series Compatibility: GE Mark VI / Mark VIe
- Function: Signal isolation and power distribution.
Functional Features
- Safely steps down and isolates high-voltage signals for measurement.
- Distributes regulated power to downstream control boards.
- Features built-in over-voltage and over-current protection.
Application Scenarios
Installed in generator excitation and synchronization cabinets to monitor generator output voltage and line conditions.
Performance Parameters
- High-precision signal scaling with excellent common-mode rejection.
- Reliable fault isolation to protect sensitive control electronics.
Material Composition
Industrial-grade PCB with high-voltage clearance distances and protective conformal coating.
Structural Characteristics
Standard Mark VI board form factor with specialized backplane connectors and status indicator LEDs.
Working Principle
Receives high-voltage inputs, utilizes precision resistive dividers and isolation amplifiers to scale the signal to a safe level, and transmits it to the system controller.
Installation Requirements
- System must be completely de-energized and grounded before installation.
- Verify high-voltage wiring connections match the system schematic.
Usage Precautions
- Never bypass high-voltage safety interlocks.
- Inspect high-voltage terminals for arcing or degradation during maintenance.
- Observe strict ESD and high-voltage safety protocols.
