Description

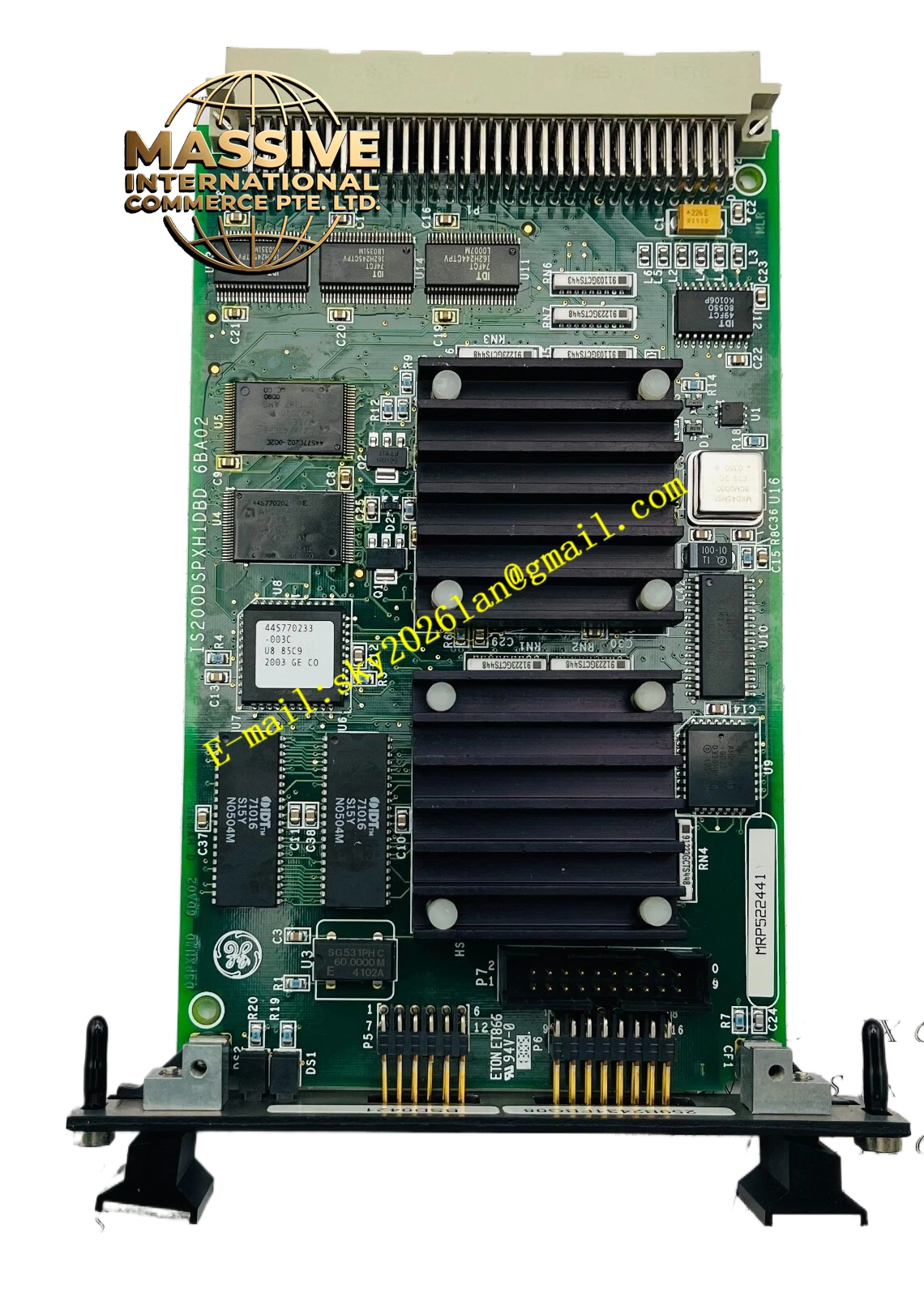

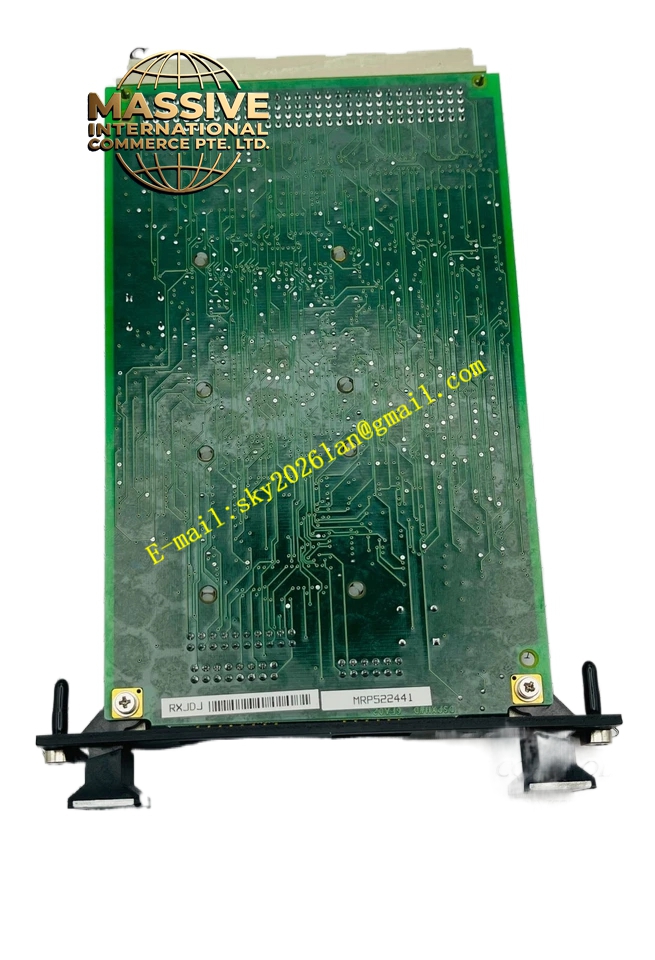

GE IS200DSPXH1D
Technical Specifications
- Product Series: GE IS200 / Mark VI Series.
- Module Type: Digital I/O Board.
- Bus Interface: VME / IS200 Backplane.
Functional Features
- Discrete Signal Processing: Reads digital inputs and drives digital outputs for control and monitoring.
- Electrical Isolation: Protects sensitive control electronics from field voltage spikes.
- High-Speed Switching: Supports fast response times for critical control loops.
Application Scenarios
Gas and steam turbine control, power plant automation, and critical infrastructure monitoring.
Performance Parameters
- Signal Latency: Microsecond-level response time.
- Reliability: High-availability design supporting redundant system architectures.
Material Composition
Multi-layer industrial PCB with optical isolators, precision resistors, and conformal coating.
Structural Characteristics
Standard IS200 board size with front-panel status LEDs and backplane connector interface.
Working Principle
Receives digital commands from the system processor via the backplane, conditions the signals, and drives field relays or reads field switch states through isolated circuits.
Installation Requirements
- Insert into the designated IS200 rack slot, ensuring proper alignment.
- Connect field wiring to the appropriate terminal blocks per the wiring diagram.
- Verify slot assignment matches system configuration.
Usage Precautions
- Observe ESD precautions when handling the module.
- Do not insert or remove the module while the rack is powered.
- Verify field voltage levels do not exceed module ratings.
