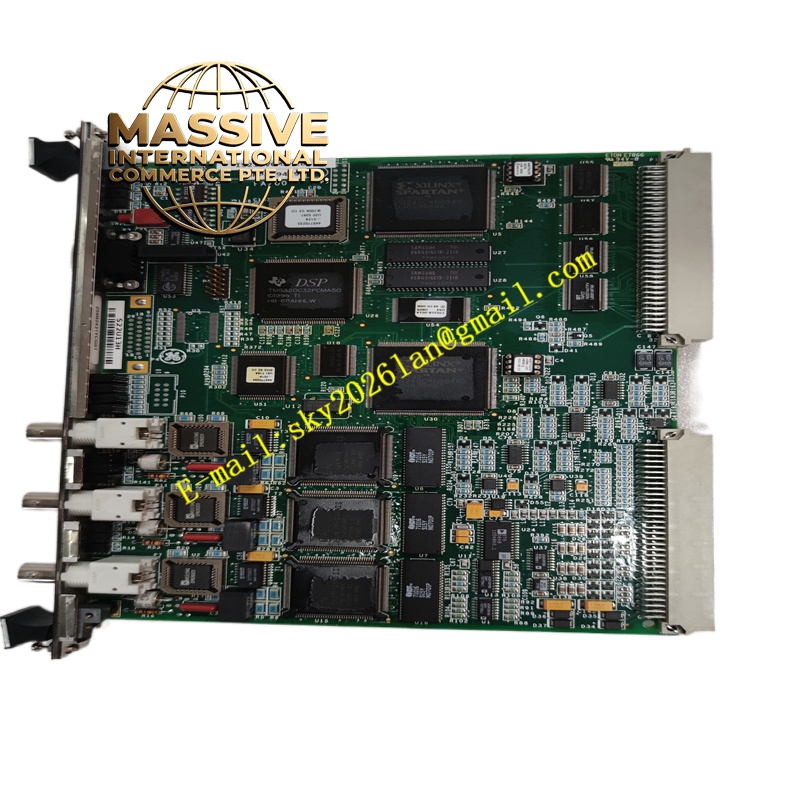

GE IS200TGENH1A
Technical Specifications:
- Brand: General Electric (GE)
- Model: IS200TGENH1A
- Product Type: Generator Excitation Control Board
- System Compatibility: Mark VI Speedtronic
Functional Features:
- Voltage Regulation: Interfaces with the Automatic Voltage Regulator (AVR) to maintain stable grid voltage.
- Excitation Control: Adjusts field current to optimize generator performance and stability.
- Protection: Monitors for over-excitation and under-excitation conditions to protect the generator.
Application Scenarios:
Critical component in synchronous generators, steam turbines, and gas turbines within utility and industrial power generation facilities.
Performance Parameters:
- Response Time: Ultra-fast signal processing to accommodate rapid grid load changes.
- Accuracy: High-precision control for optimal reactive power management.
Material Composition:
High-grade analog components, precision resistors, and gold-plated connector pins.
Structural Characteristics:
Standard Mark VI board size with front panel test jacks, status LEDs, and rear high-density connectors.
Working Principle:
Monitors generator terminal voltage and reactive power, calculating the required field current and outputting precise firing pulses to the exciter thyristor bridge.
Installation Requirements:
Must be installed in the designated excitation control slot. Ensure all shielded signal cables are properly grounded.
Usage Precautions:
Never bypass excitation protection features. Always verify the health of the exciter system before attempting to synchronize.
