Description

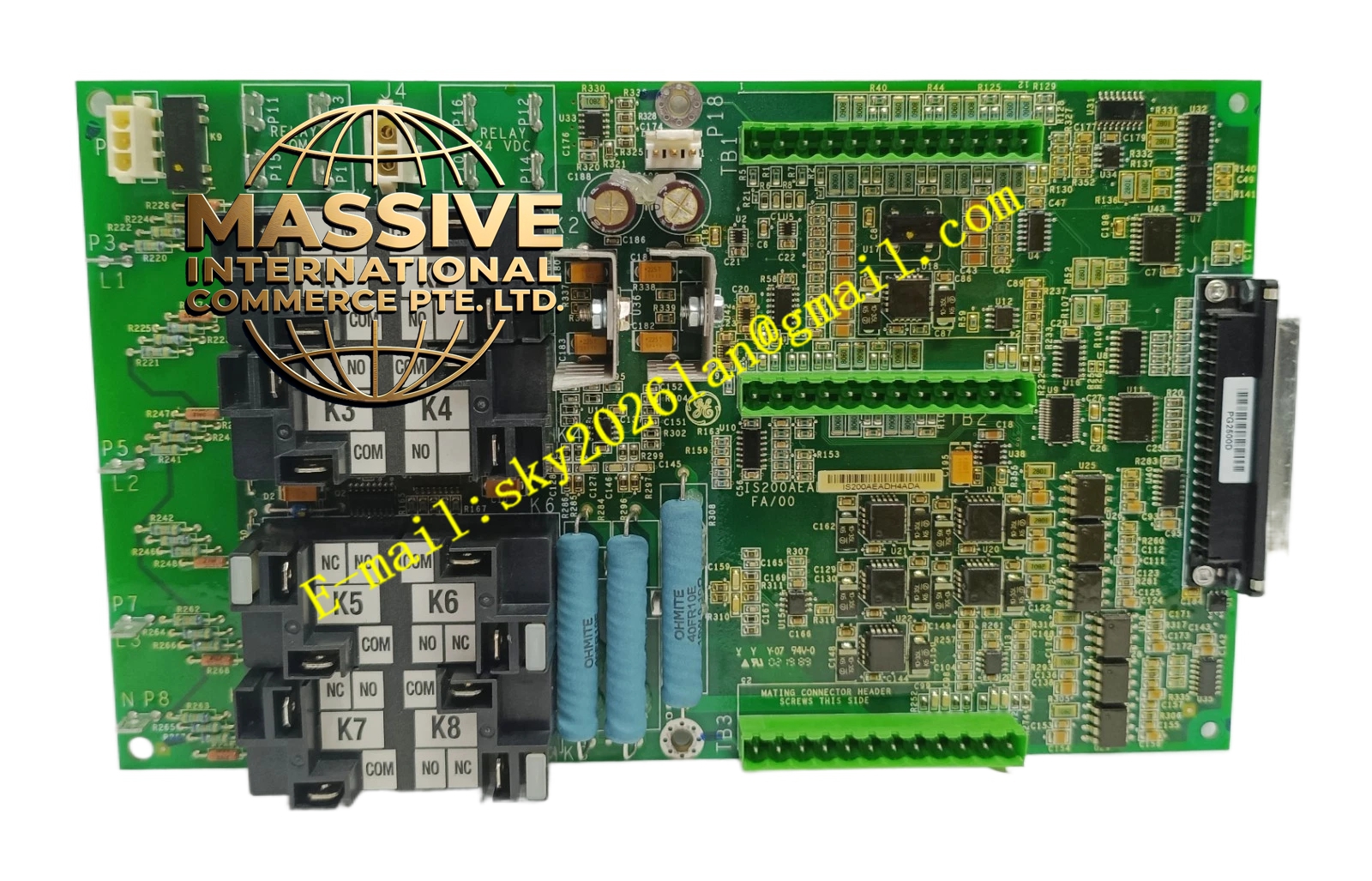

GE IS200TPROH1CPR
Technical Specifications
- Board Type: Turbine Protection Board
- Series Compatibility: GE Mark VI / Mark VIe
- Function: Safety monitoring and trip execution.
Functional Features
- Continuously monitors vital turbine parameters such as overspeed, high vibration, and extreme temperatures.
- Executes hardwired and programmed safety logic for fail-safe operation.
- Provides redundant processing paths to ensure protection is never compromised.
Application Scenarios
Installed in the safety-critical control cabinets of modern GE heavy-duty gas and steam turbines.
Performance Parameters
- Ultra-fast response time for emergency trip conditions.
- High-integrity signal processing with continuous self-diagnostics.
Material Composition
Industrial-grade printed circuit board (PCB) with conformal coating to protect against moisture, dust, and corrosive gases.
Structural Characteristics
Standard Mark VI board form factor with specialized backplane connectors and status indicator LEDs.
Working Principle
Independently evaluates sensor inputs against strict safety limits and triggers protective relays to shut down the turbine if parameters exceed safe operating boundaries.
Installation Requirements
- Must be inserted into the designated safety slot in the Mark VI rack.
- Handle strictly by the edges to avoid damaging surface-mount components.
- Ensure proper backplane seating and locking.
Usage Precautions
- Observe strict electrostatic discharge (ESD) protocols during handling.
- Verify board revision compatibility before replacing an existing unit.
- Never bypass safety interlocks or protection circuits.
