Description

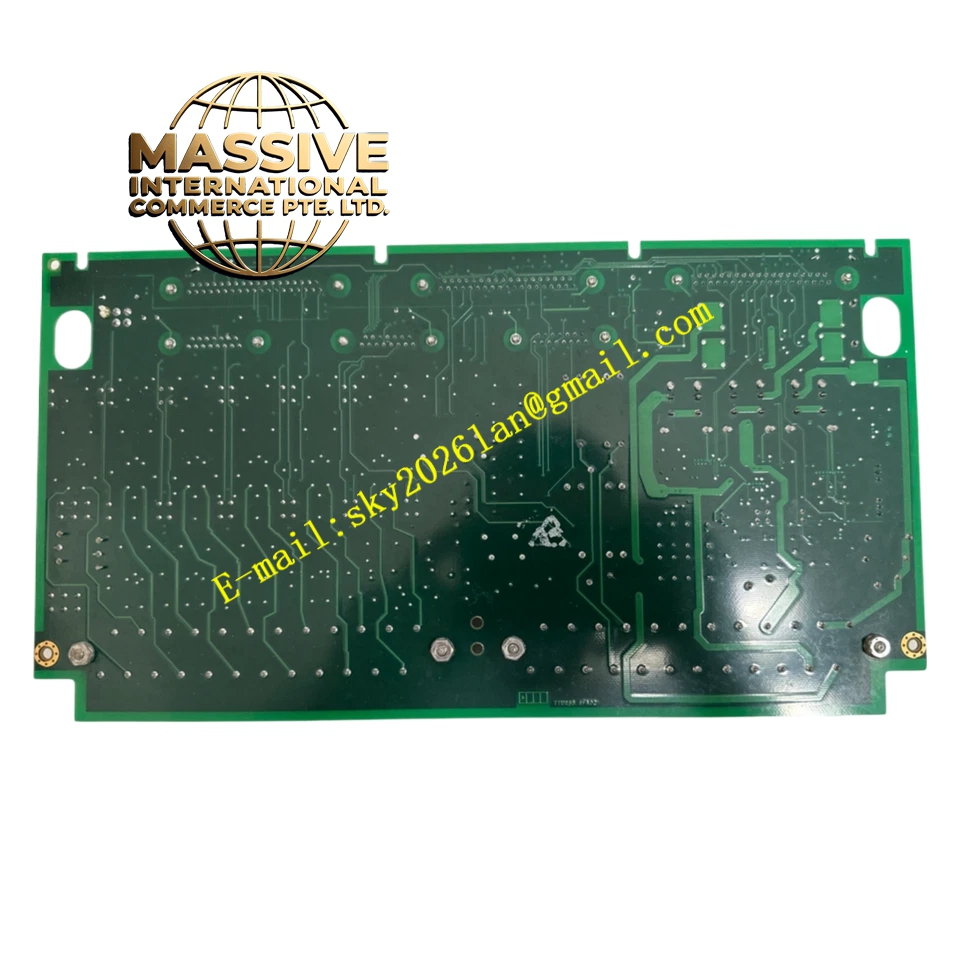

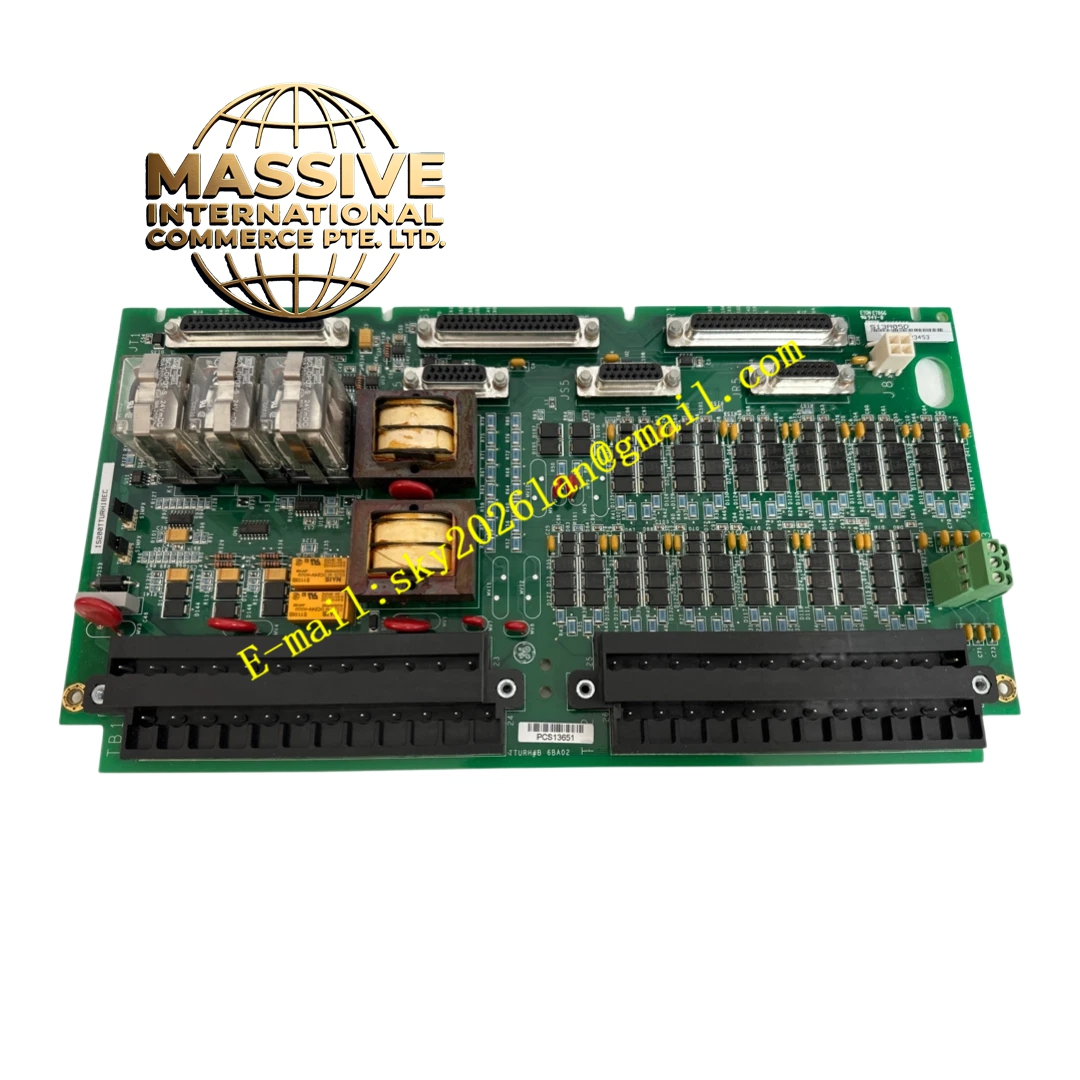

GE IS200TTURH1BV
Technical Specifications
- Product Type: Turbine Terminal Board.
- System Compatibility: GE Mark VIe Speedtronic Control System.
- Signal Types: Discrete I/O, analog I/O, and servo signals.
Functional Features
- Field Interfacing: Provides screw terminals for field wiring connections.
- Signal Conditioning: Includes filters, isolators, and scaling resistors for field signals.
- Diagnostic Test Points: Provides accessible test points for troubleshooting.
Application Scenarios
- Turbine Control: Interfacing with limit switches, transmitters, and solenoids in turbine systems.
- Safety Systems: Providing discrete I/O for emergency shutdown systems.
Performance Parameters
- Voltage Levels: Compatible with 24VDC or 125VDC field signals.
- Current Capacity: Sufficient drive capability for industrial relays and solenoids.
Material Composition
- Assembly: PCB with integrated terminal blocks and isolation components.
- Housing: Protective framing for mechanical support.
Structural Characteristics
- Design: Compact assembly designed for Mark VIe rack mounting.
- Labeling: Clear silkscreen for terminal identification.
Working Principle
Acts as a bridge, translating signals between the Mark VIe I/O boards and field devices. It provides the necessary electrical isolation, signal conditioning, and physical connection points for reliable turbine control.
Installation Requirements
- Follow Mark VIe wiring manuals for proper termination.
- Ensure proper grounding of the terminal board chassis.
- Torque terminal screws to specified values.
Usage Precautions
- Verify field voltage matches board specifications before energizing.
- Use proper torque on terminal screws to prevent loose connections.
- Strictly adhere to ESD protocols when handling.
