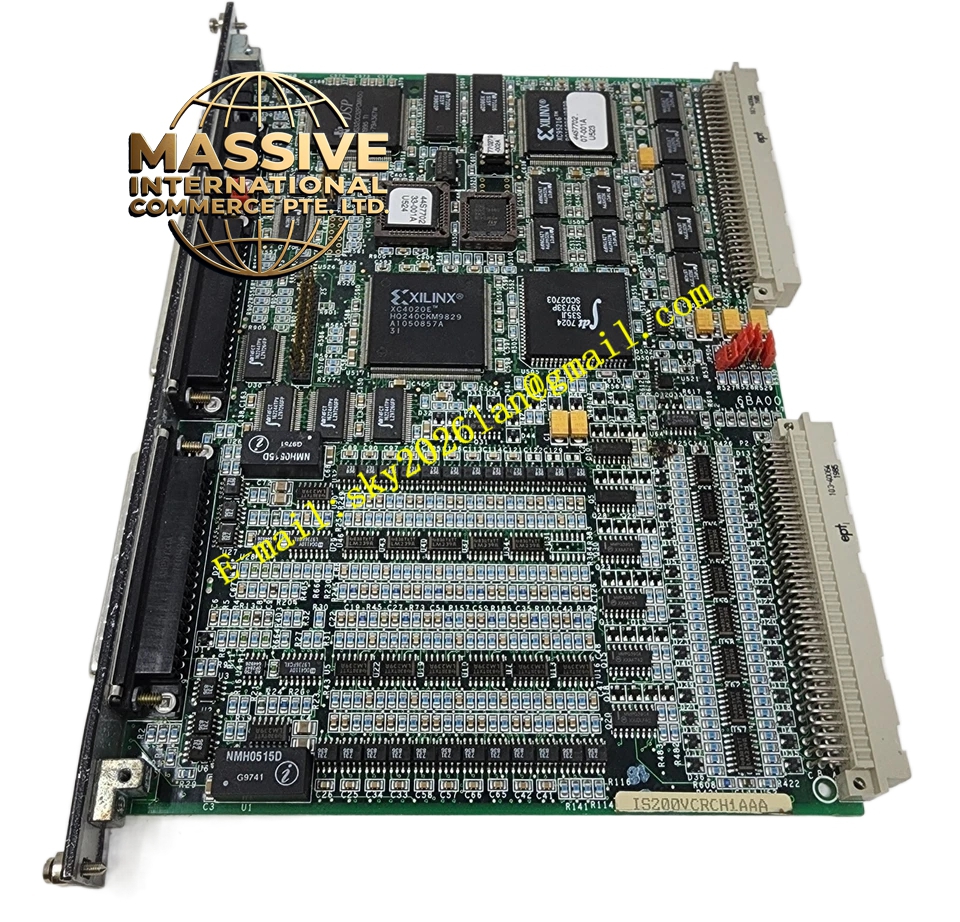

GE IS200VCRCH1A
- Technical Specifications:
- Input Channels: 48 discrete dry contact inputs
- Output Channels: 24 relay outputs
- Mounting: VME I/O rack, single-slot width
- Power: Internal DC power via backplane
- Connectors: J33, J44 cable connectors
- Functional Features: Optical isolation for input signals; Sequence of Events (SOE) recording with 1 ms resolution; LED indicators for Run/Fail/Status; communicates with controller via VME backplane through VCMI interface.
- Application Scenarios: Gas turbine fuel valve control, steam turbine protective trip circuits, auxiliary equipment start/stop logic in power plants, hydro turbine gate control.
- Performance Parameters: Input scan rate at control frame rate (approx. 1 ms high-speed sampling for critical inputs); capable of detecting pulse widths as short as 6 ms; supports hot-backup in redundant configurations.
- Material Composition: FR-4 multilayer PCB with gold-plated edge fingers; surface-mounted ICs including optocouplers and driver transistors; relay coils and contacts rated for industrial switching cycles.
- Structural Features: Front panel with two cable headers and three diagnostic LEDs; no sub-board (unlike VCCC); secured to VME rack via screws; uses four terminal boards externally (TBCI/TRLY).
- Working Principle: Input voltages pass through optical isolators to prevent ground loops, are sampled synchronously with the control processor frame, and transmitted to the central controller via VMEbus. Relay outputs are driven by logic signals from the controller to actuate external devices.
- Installation Requirements: Insert firmly into VME I/O rack slot ensuring P1 backplane connector engagement; attach terminal boards via shielded cables with proper strain relief; tighten front panel screws to maintain EMI shielding.
- Usage Precautions: Discharge static before handling; verify terminal board wiring matches VCRC configuration to avoid damaging optoisolators; monitor FAIL LED—if lit, check VME backplane communication and power.
