Description

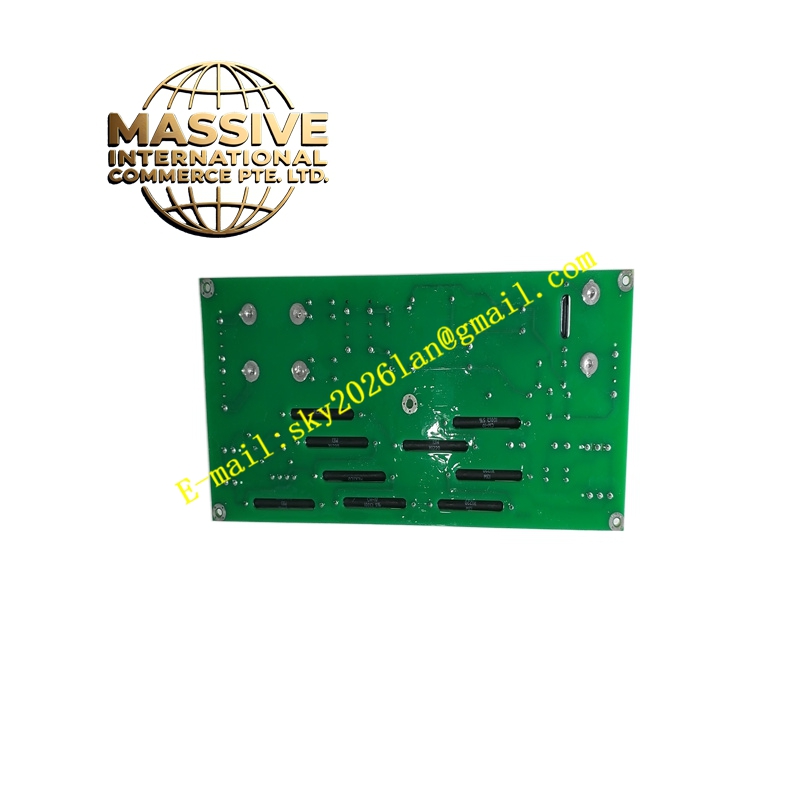

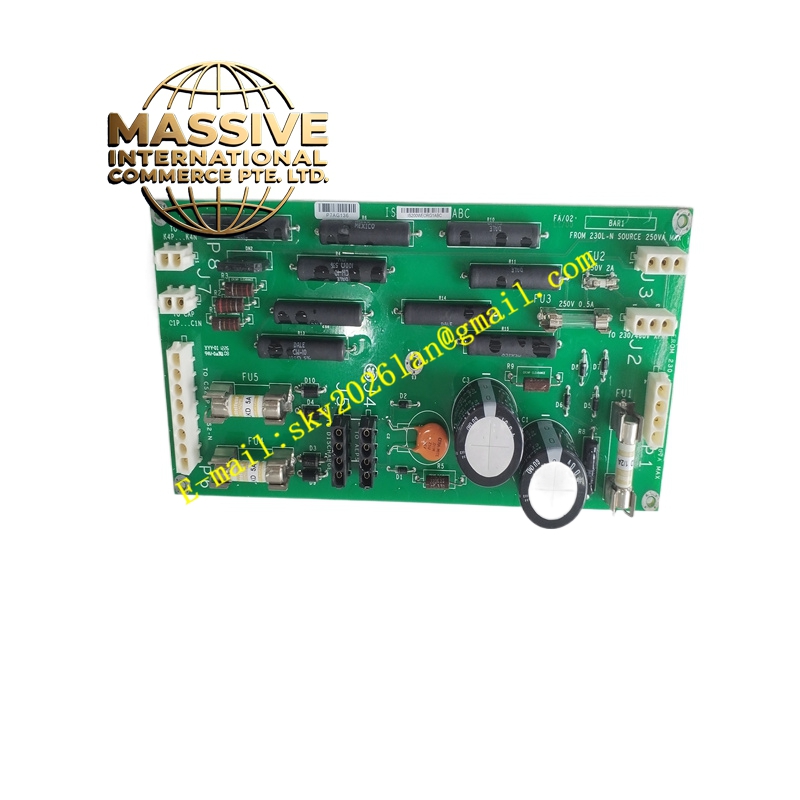

GE IS200WEORG1A
- Technical Specifications:
- Series: GE Mark VIe (Speedtronic)
- Board Type: Organizer/interface printed circuit board
- Board Construction: FR-4 laminate with industrial-grade components
- Environmental: Typical industrial range (-40 °C to +70 °C depending on cabinet conditions; consult GE manuals)
- Humidity: 5% to 95%, non-condensing
- Dimensions: Standard board size for Mark VIe rack mounting (exact dimensions per GE mechanical drawing)
- Weight: Typically < 1.5 kg (board only)
- Mounting: Rack mounting via guide rails and front-panel retainers; front panel with fastening screws
- Functional Features:
- Provides connectivity and signal organization between the control and I/O subsystems
- Supports interfacing to terminal boards for digital and analog I/O
- Designed for high reliability and long-term operation in turbine control environments
- Facilitates communication between the main controller and auxiliary modules
- Application Scenarios:
- Wind turbine control systems (pitch, converter, and turbine controller subsystems)
- Gas/steam turbine control cabinets requiring additional interface/organizer capability
- Industrial control systems where robust board-level interconnections are needed
- Performance Parameters:
- Industrial-grade durability suitable for continuous operation
- Signal integrity maintained over industrial temperature ranges
- Low-latency data paths between connected modules
- Material and Structural Characteristics:
- High-quality FR-4 PCB material with copper traces and plated-through holes
- Conformal coating options for harsh environments (on selected versions)
- Aluminum or steel front panel with captive screws for secure mounting
- Backplane connectors with multiple pins for reliable signal and power distribution
- Working Principle:
- Acts as an interconnection board within the control rack, routing signals and power between the backplane and terminal boards or between modules. It ensures organized, low-noise signal distribution and may provide buffering or isolation for specific interfaces.
- Installation Requirements:
- Mount in a designated slot within a Mark VIe control rack
- Ensure rack power is de-energized during installation
- Secure board with appropriate front-panel screws and verify proper seating of backplane connectors
- Route cables to terminal boards or other modules as defined in the system wiring diagrams
- Usage Notes:
- Verify compatibility with the specific Mark VIe software and hardware configuration
- Handle with care to avoid ESD damage; use anti-static precautions
- Periodically inspect connectors and front-panel fasteners for tightness
- Follow GE maintenance guidelines for cleaning and inspection
