Description

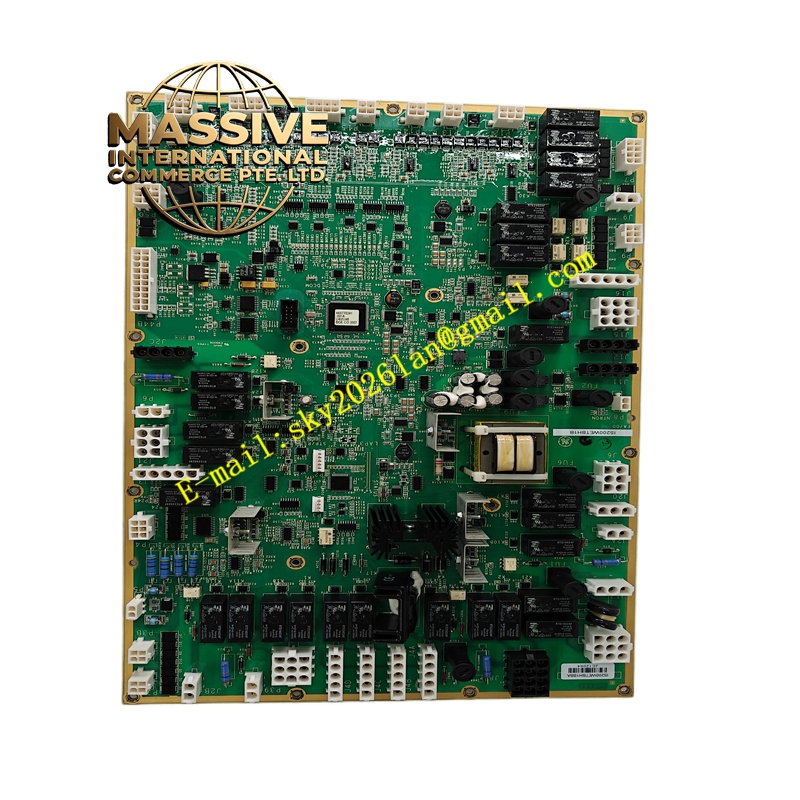

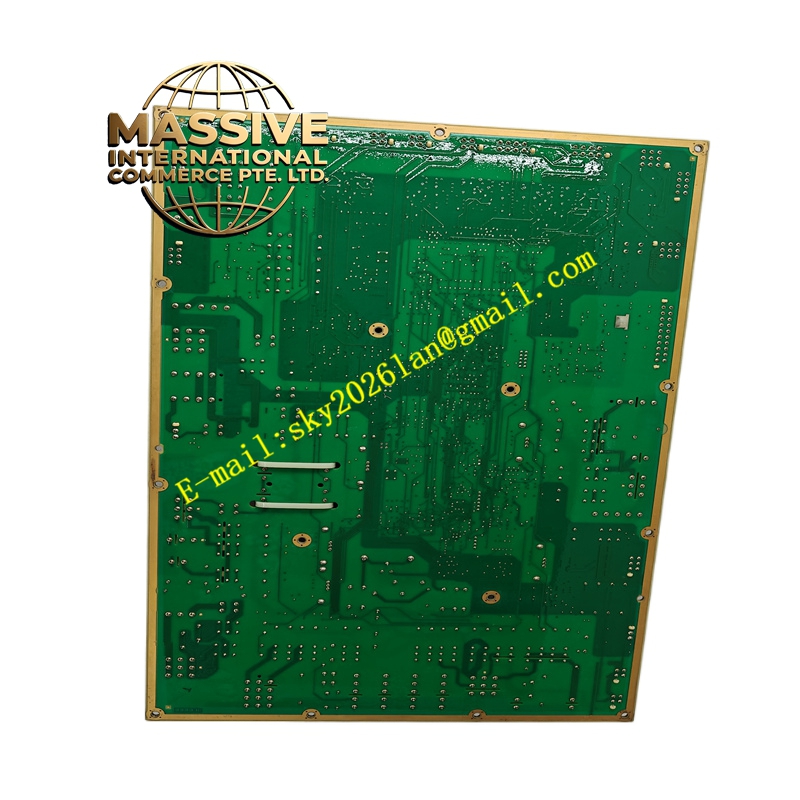

GE IS200WETBH1B 104W5259P002
- Technical Specifications:
- Series: GE Mark VI Speedtronic
- Inputs: Supports 4-20 mA analog inputs; digital I/O channels (configurable per application)
- Outputs: 0-20 mA and 0-200 mA outputs
- Communication: Supports Modbus TCP, SRTP for data exchange
- Environment: Designed for normal industrial temperature and pressure environments
- Physical/finish: Green conformal-coated PCB; modular board form factor for rack mounting
- Dimensions: Standard Mark VI module dimensions (specific dimensions per GE data sheet)
- Weight: Typically < 1 kg (board only)
- Functional Features:
- Signal processing: Conditions and scales analog and digital signals from field sensors
- Control logic execution: Executes sequencing and ladder logic for control and interlock functions
- Data communication: Provides real-time data exchange with higher-level controllers and HMI stations
- Modular design: Simplifies maintenance and replacement
- Application Scenarios:
- Gas/steam turbine control systems for speed and load control
- Wind turbine control applications as a core control/processing board
- Power plant distributed control systems (DCS) for data acquisition and actuator control
- Performance Parameters:
- Industrial-grade reliability for continuous operation
- Real-time control and monitoring capabilities
- Compatibility with GE Speedtronic Mark VI software suite
- Material and Structural Characteristics:
- High-quality PCB with industrial-grade components
- Conformal coating for protection against moisture and contaminants (selected versions)
- Board-edge connectors for backplane interface and terminal board connections
- Robust mechanical design suited for vibration-prone environments
- Working Principle:
- Receives inputs from sensors and terminal boards, processes them using onboard logic and signal conditioning circuits, then sends control commands to actuators or other modules. It also communicates across the control network to synchronize data with the main controller and HMI.
- Installation Requirements:
- Install in a Mark VI rack in the appropriate slot per system configuration
- Ensure proper alignment of board-edge connectors with the rack backplane
- Verify field wiring to terminal boards matches approved wiring diagrams
- Power down the rack or follow hot-swap procedures where allowed
- Usage Notes:
- Confirm compatibility with specific control software versions and application configurations
- Periodically check connections for secure fit and inspect for signs of corrosion or wear
- Observe ESD precautions during handling and maintenance
- Follow GE-recommended maintenance intervals and diagnostics
