GE IS215ISBBH2A

GE IS215ISBBH2A

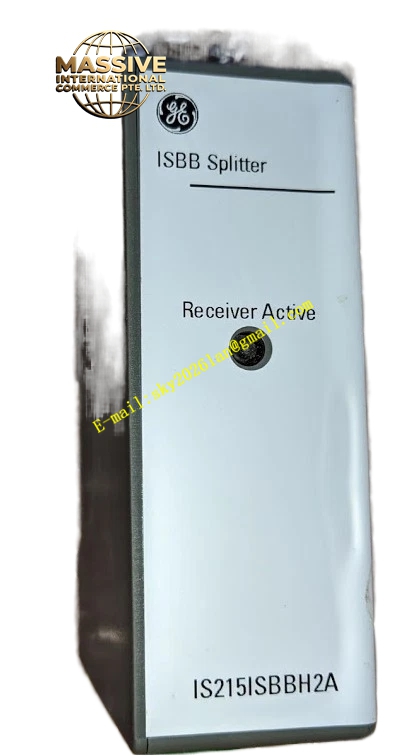

Product Brief The GE IS215ISBBH2A is a splitter communication switch manufactured by General Electric as part of the Speedtronic Mark VI series. This device functions as a network communication splitter, enabling the distribution of Ethernet signals to multiple downstream devices within the Mark VI turbine control system. The ISBB board is designed with ventilation on all four sides, allowing internal components to cool through heat dissipation and fresh air intake. It features a compact gray enclosure with one Ethernet port on one end and two Ethernet cable ports on the other end, making it ideal for distributed I/O network architectures in turbine control applications.

Request Quote
Category:

Description

GE IS215ISBBH2A

Technical Specifications

  • Part Number: IS215ISBBH2A
  • Manufacturer: General Electric
  • Series: Speedtronic Mark VI
  • Product Type: Splitter Communication Switch
  • Housing Type: Metal enclosure with four-sided ventilation
  • LED Indicators: 1 (Receiver Active)
  • Ethernet Ports: 3 total (1 full duplex P1, 1 transmit P2, 1 receive P3)
  • Input Current: 3.0 mA typical at 24 VDC
  • Off-State Voltage: Less than 5 VDC
  • Off-State Current: Less than 0.5 mA
  • Isolation Voltage: 2,500 VDC

Key Features

  • Splitter communication switch for Mark VI distributed I/O networks
  • Metal enclosure with four-sided ventilation for thermal management
  • Green plastic adapter adjacent to the single Ethernet port
  • Three Ethernet ports with labeled functions (Full Duplex P1, Transmit P2, Receive P3)
  • Single LED indicator labeled “Receiver Active” on the front panel
  • LED diagnostic chart on the rear panel
  • Slide-in mounting with locking mechanism for secure installation
  • High isolation voltage of 2,500 VDC for electrical safety

Application Scenarios Gas turbine control systems, steam turbine management, distributed I/O network architectures, Mark VI Speedtronic control systems, power generation facility automation

Performance Parameters

  • Input Current: 3.0 mA typical at 24 VDC
  • Off-State Voltage: Less than 5 VDC
  • Off-State Current: Less than 0.5 mA
  • Isolation Voltage: 2,500 VDC

Material Composition Metal enclosure with industrial-grade electronic components. The housing is designed for efficient heat dissipation through four-sided ventilation. Internal components are selected for reliable operation in industrial control environments.
