Description

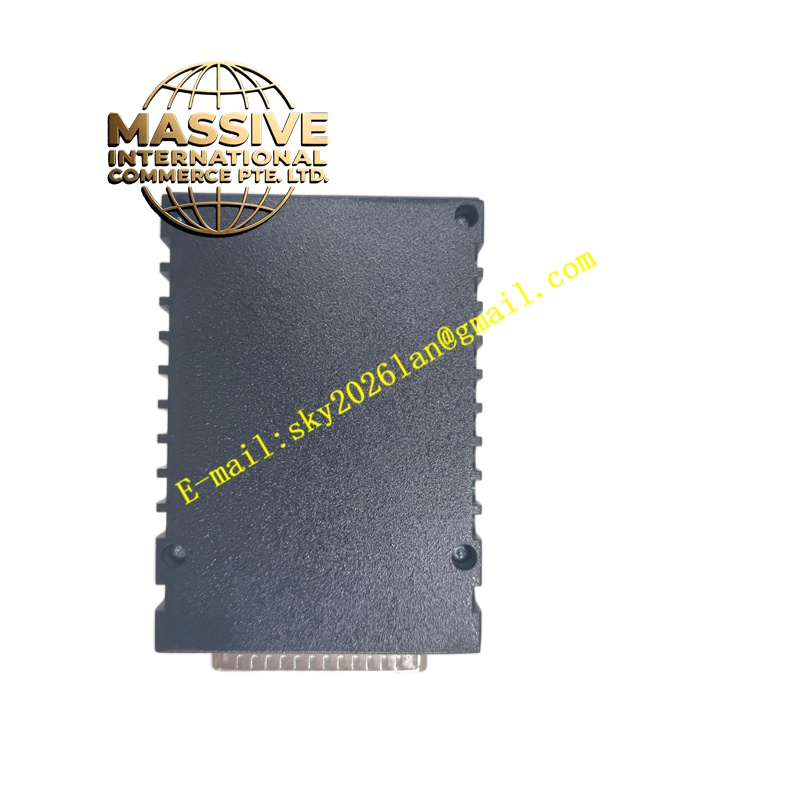

GE IS220PTCCH1A
Technical Specifications:
- Brand: General Electric (GE)
- Model: IS220PTCCH1A
- Product Type: Turbine Protection / Control Board
- System Compatibility: GE Mark VIe Control System
Functional Features:
- Safety Monitoring: Continuously monitors speed, vibration, temperature, and other critical parameters.
- Protective Tripping: Initiates turbine shutdown when unsafe conditions are detected.
- Redundancy Support: Designed to operate in redundant configurations for maximum safety integrity.
Application Scenarios:
Gas, steam, and hydro turbine protection systems in power generation and industrial applications.
Performance Parameters:
Fast trip response times, high diagnostic coverage, and compliance with safety integrity standards.
Material Composition:
Industrial-grade PCB with high-reliability safety-rated components.
Structural Characteristics:
Standard Mark VIe form factor with backplane connectors and status LEDs.
Working Principle:
Independently monitors turbine parameters and, upon detecting an out-of-limit condition, sends a trip signal to the turbine control system to initiate a safe shutdown.
Installation Requirements:
Install in the designated protection slot. Verify all safety-critical sensor connections.
Usage Precautions:
Never bypass or defeat protection functions. Test protection logic during scheduled outages. Handle with ESD protection.
