Name: GE RV33-1
Brand: GE
SKU: GE RV33-1

GE RV33-1

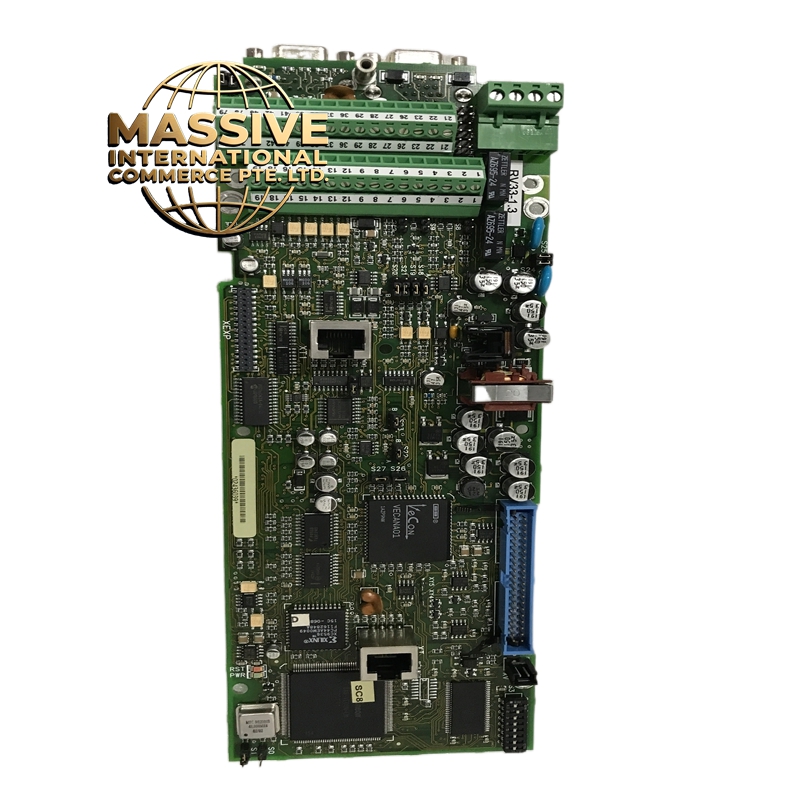

Product Overview The GE RV33-1 is a VS Drive Control Regulation Board designed for the AV-300i variable speed drive inverter system. It serves as the primary control and regulation interface for the AV-300i series of industrial AC drives, managing motor speed control, torque regulation, and system diagnostics. This board is a critical component in GE’s legacy drive control architecture, providing the intelligence layer between the power electronics and the external control system.

Request Quote

Category: GE SKU: GE RV33-1

Description

GE RV33-1

Technical Specifications

Parameter	Specification
Function	Drive Control and Regulation
System Compatibility	AV-300i Variable Speed Drive
Processor	Embedded microprocessor for real-time control
Communication	ISBUS-S interface for system integration
Control Functions	Speed regulation, torque control, current limiting
Input Voltage	Powered from drive DC bus
Operating Temperature	0°C to 60°C (32°F to 140°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Humidity	5% to 95% non-condensing
Board Dimensions	Standard drive control board form factor
Mounting	Internal mounting within AV-300i drive chassis

Functional Features

Speed Control: Precise closed-loop speed regulation using encoder feedback or sensorless vector control algorithms
Torque Control: Direct torque control capability for applications requiring precise torque management
Current Limiting: Programmable current limits to protect the motor and drive from overload conditions
Acceleration/Deceleration Ramps: Configurable ramp profiles for smooth motor starting and stopping
Fault Protection: Comprehensive fault detection including overcurrent, overvoltage, undervoltage, and overtemperature
Diagnostic Interface: Built-in diagnostic capabilities with fault code reporting
ISBUS Communication: Integrated serial communication bus for connection to higher-level control systems

Structural Characteristics

Multi-layer printed circuit board with high-quality components
Conformal coating option available for harsh environments
Heavy-duty connectors for field wiring
LED status indicators for operational state and fault conditions
Ruggedized design for industrial environments
Shielded signal paths to minimize electromagnetic interference

Working Principle The RV33-1 board receives speed and torque commands from the external control system via the ISBUS-S interface. An embedded microprocessor executes the motor control algorithms, calculating the required voltage and frequency for the inverter power stage. The board continuously monitors motor current, DC bus voltage, and temperature sensors. Using vector control techniques, it maintains precise control of motor flux and torque. The control loop operates at high speed to ensure responsive motor control. Fault detection circuits continuously monitor for abnormal conditions and initiate protective shutdowns when necessary.

Installation Requirements
