Description

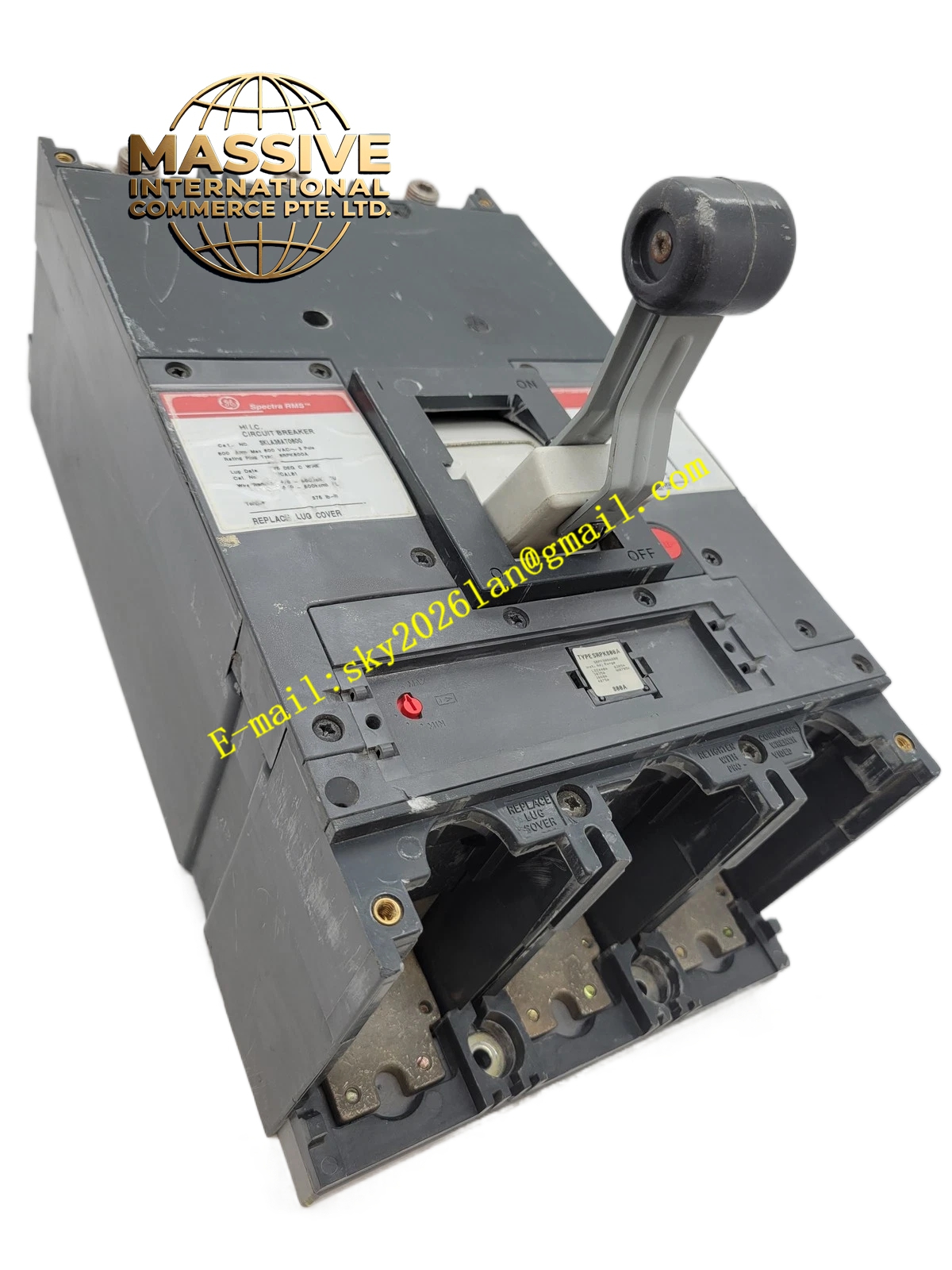

GE SKLA36AI0800
Technical Specifications
- Frame Type: SKL Series
- Poles: 3 Poles
- Amperage Rating: 800 Amperes
- Voltage Rating: 600V AC Maximum
Functional Features
- Heavy-duty thermal-magnetic overcurrent protection.
- Visible blade position indicator for enhanced personnel safety.
- Interchangeable trip units for customizable protection curves.
Application Scenarios
Ideal for main service entrances, large industrial feeders, and heavy motor control applications.
Performance Parameters
- High interrupting rating for fault current limitation.
- Precision-engineered trip mechanisms ensure accurate and fast response.
Material Composition
High-impact thermoset housing with silver-plated copper contacts and robust current-carrying paths.
Structural Characteristics
Standard 3-pole molded case design with front-accessible terminals and a heavy-duty toggle operator.
Working Principle
Protects downstream conductors and equipment by automatically opening the circuit when current exceeds the calibrated thermal or magnetic trip threshold.
Installation Requirements
- Mount vertically for optimal thermal performance.
- Tighten terminals to manufacturer-specified torque values to prevent overheating.
- Ensure proper phase rotation and grounding.
Usage Precautions
- Perform periodic infrared thermography to detect hot spots.
- Test trip mechanisms annually to ensure mechanical reliability.
- Reset only after identifying and correcting the fault cause.
