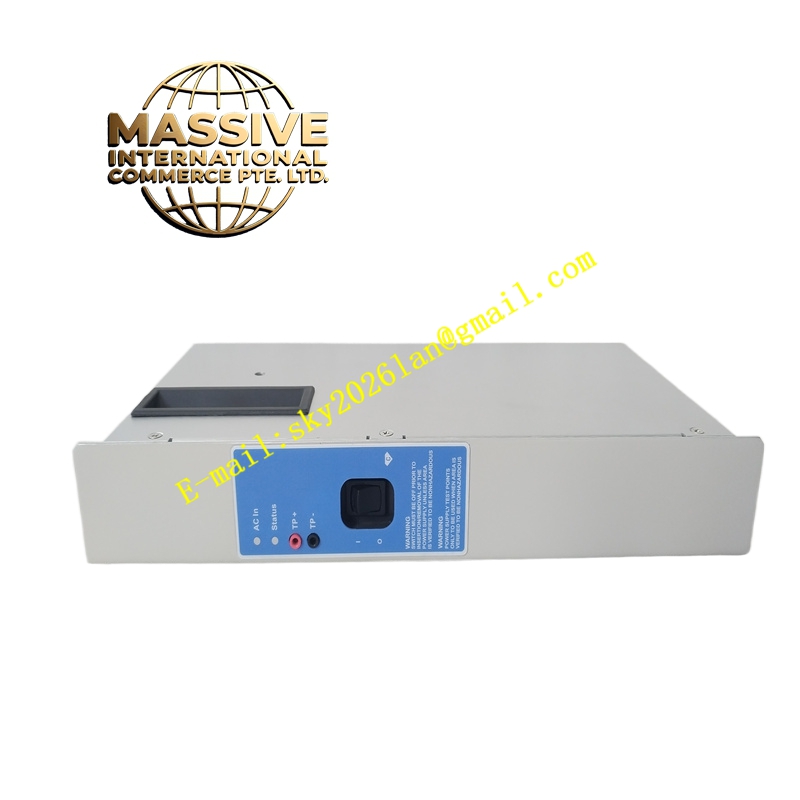

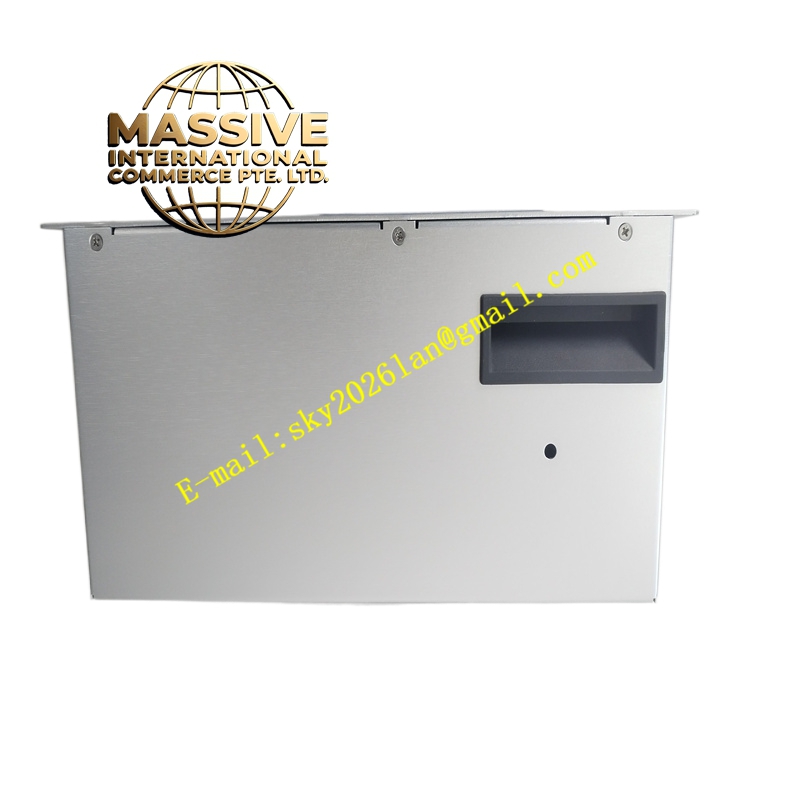

GE SPS5710
Technical Specifications:
- Manufacturer: Honeywell
- Part Numbers: SPS5710 / 51199929-100 / CC-PWRR01
- System Compatibility: Honeywell Experion PKS
- Input Voltage: 100–240 V AC
- Output Voltage: 24 V DC
- Output Current: 20 A (SPS5710-2-LF variant)
- Efficiency: Greater than 85%
- Operating Temperature: -40 °C to +70 °C
- Protection Rating: IP20
- Protections: Overvoltage, overcurrent, short-circuit, thermal
- Redundancy: Supports 1:1 redundant parallel configuration
- Hot-Swap: Supported for online maintenance
- Diagnostics: LED status indicators, power-on and run-time self-diagnostics with fault indication
- FTE Support: Two firewall ports supporting FTE functionality, uplink information control, broadcast storm suppression
Functional Features:
- Redundant parallel operation ensures uninterrupted power during module failure or maintenance
- Hot-swap capability allows module replacement without powering down the DCS cabinet
- Integrated (Fault Tolerant Ethernet) firewall ports protect controller communications from upper-layer IP network traffic
- Broadcast storm suppression prevents network-induced power supply disruption
- LED status indicators provide rapid visual fault diagnosis
- Power-on and run-time self-diagnostics with fault indication
- Modular design for easy replacement and maintenance
Application Scenarios:
- Petrochemical and refining DCS control cabinets
- Pharmaceutical and chemical process control systems
- Power generation plant control systems
- Safety Instrumented Systems (SIS) power supply
- Oil and gas processing facility control rooms
- Any Experion PKS installation requiring high-availability 24 V DC power
Performance Parameters:
- Stable 24 V DC output at 20 A with greater than 85% efficiency
- Wide input voltage range (100–240 V AC) for global deployment
- Wide operating temperature (-40 °C to +70 °C) for harsh industrial environments
- Fast redundant switchover with no interruption to downstream loads
- Compliance with industrial EMC standards
Material and Structural Characteristics:
- Industrial-grade metal housing with integrated heat dissipation fins
- Modular plug-in design for rack mounting in Experion PKS power cabinets
- Front-panel LED indicators for power, fault, and status
- Terminal blocks for AC input and DC output wiring
- Conformal-coated PCB for environmental protection
Working Principle: The SPS5710 converts 100–240 V AC input to regulated 24 V DC output through a switched-mode power conversion stage. In redundant configurations, two or more modules operate in parallel with load sharing; if one module fails, the remaining modules continue to supply the full load without interruption. The integrated FTE firewall ports manage uplink communication priority and suppress broadcast storms, ensuring the controller’s network traffic remains unaffected by upper-layer IP network volume. On-board diagnostics continuously monitor output voltage, current, and temperature, illuminating fault LEDs when anomalies are detected. Installation Requirements:
- Mount in a designated Experion PKS power supply rack
- Connect 100–240 V AC input wiring per Honeywell schematics
- Wire 24 V DC output to the DCS power distribution bus
- Configure redundant pairing with a second SPS5710 module
- Connect FTE firewall ports to the FTE network infrastructure
- Verify proper grounding and bonding
Usage Notes:
- Confirm input voltage and output load match module ratings before energizing
- Use only Honeywell-approved redundant configuration procedures
- Periodically check LED status indicators for fault conditions
- Maintain clear cooling airflow around the module; clean heat dissipation fins regularly
- For redundant switchover anomalies, verify module communication and synchronization status
- Replace modules only with identical SPS5710 / CC-PWRR01 parts to maintain certification
