Description

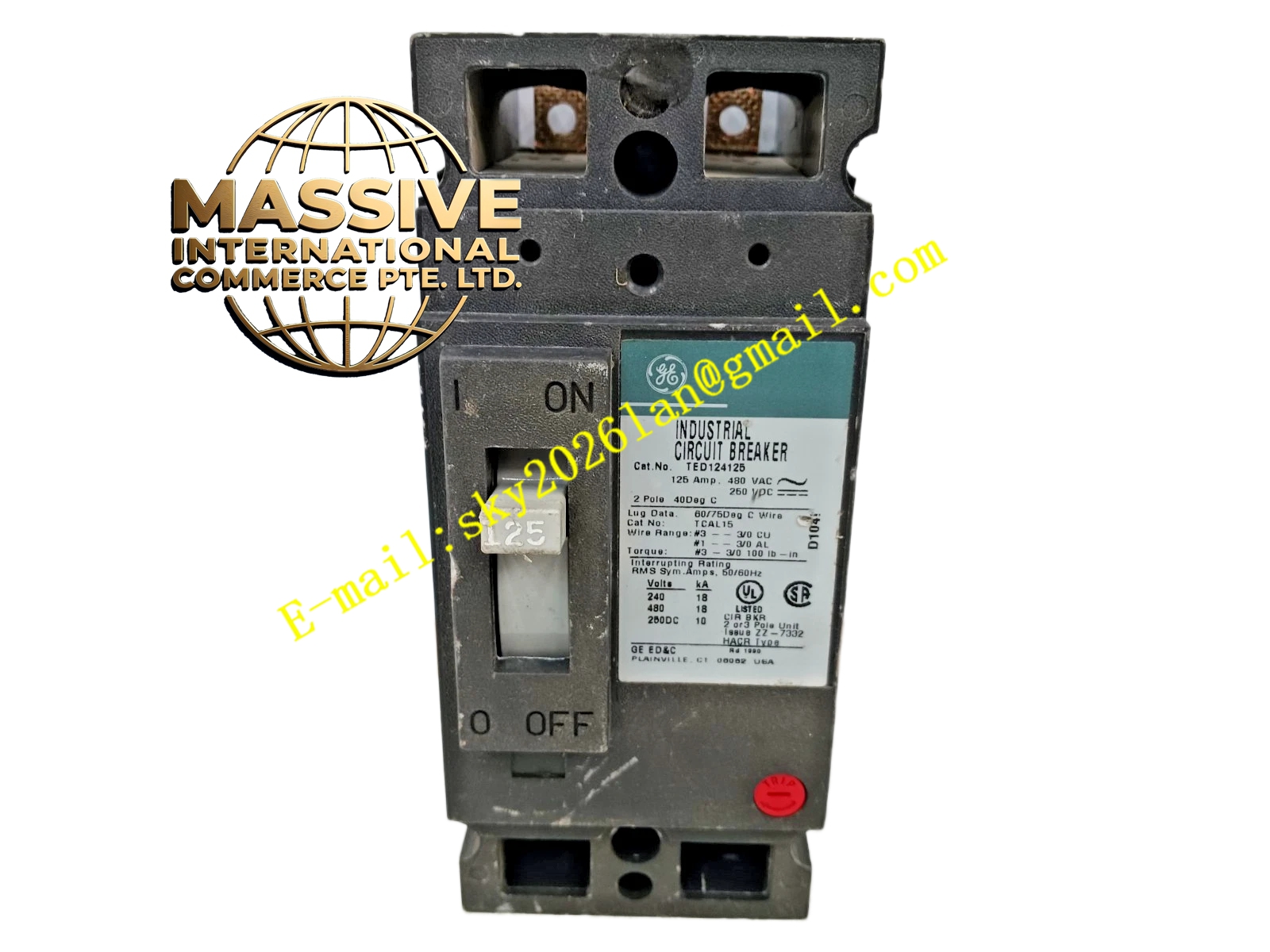

GE TED124125
Technical Specifications
- Part Number: TED124125
- Manufacturer: General Electric
- Series: TEY/TED Molded Case Circuit Breakers
- Type: Thermal-Magnetic Circuit Breaker
- Poles: 2-Pole
- Amperage: 125A
- Voltage Rating: 240V AC
- Interrupting Rating: 10 kAIC at 240V
Key Features
- Thermal-magnetic trip mechanism for comprehensive overcurrent protection
- 125 ampere current rating for medium-capacity circuits
- 2-pole configuration for 240V applications
- 10 kA interrupting capacity for standard fault levels
- Molded case construction for durability and safety
- Quick-make, quick-break switching mechanism
- Trip-free mechanism prevents forced closure during fault conditions
Application Scenarios Residential electrical panels, commercial building distribution, light industrial equipment protection, HVAC systems, motor branch circuits, feeder circuit protection
Performance Parameters
- Current Rating: 125A
- Voltage Rating: 240V AC
- Interrupting Rating: 10 kAIC at 240V
- Poles: 2
- Trip Characteristic: Thermal-magnetic
Material Composition High-strength molded case constructed from flame-retardant thermoset material. Internal components include silver-alloy contacts, bimetallic thermal elements, and magnetic trip coils. Terminal connections are made from high-conductivity copper with plated finishes for corrosion resistance.
Structural Characteristics Standard molded case circuit breaker form factor with line and load terminals accessible from the front. The breaker features a visible trip indicator and manual ON/OFF handle. The TED series is designed for bolt-on mounting in compatible panelboards and switchboards.
