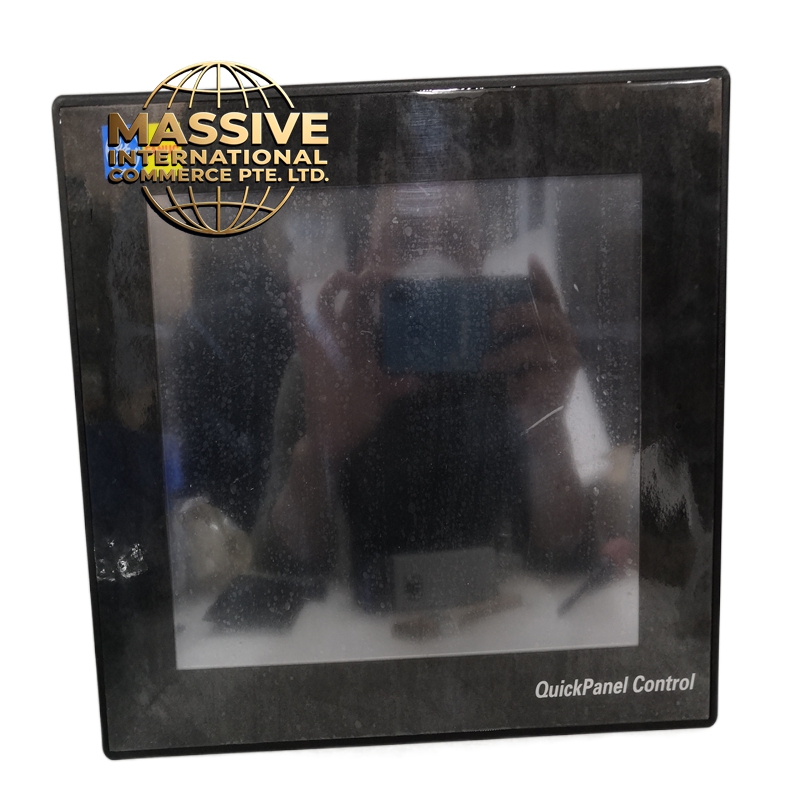

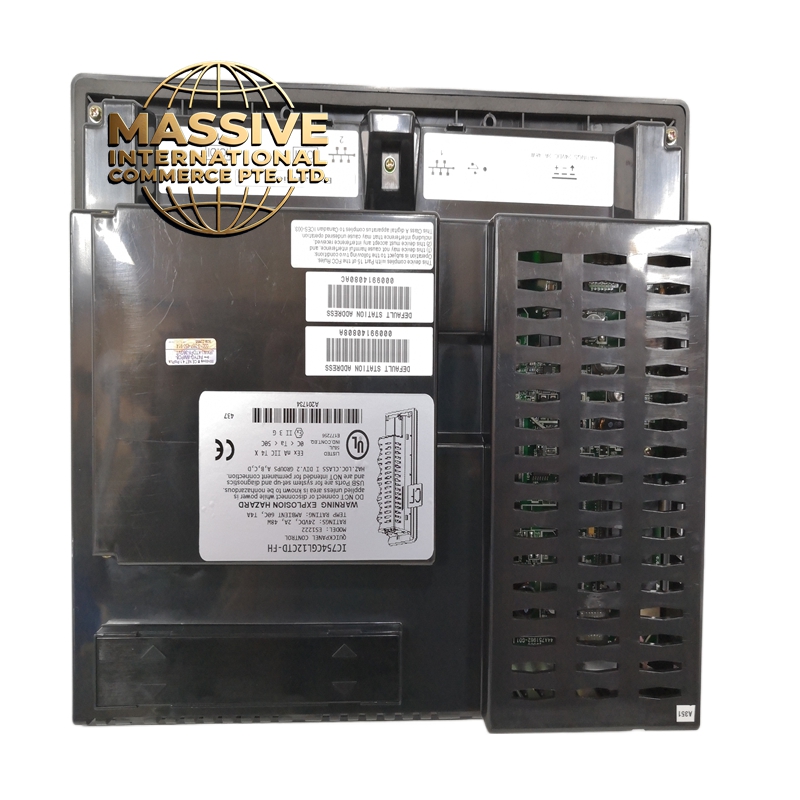

GE IC754CGL12CTD
- Technical Specifications and Performance Parameters
- Display Parameters: 12.1 inch TFT LCD display, 1024×768 XGA resolution, 500 cd/m² brightness, 500:1 contrast ratio, 16.7 million display colors.
- Touch Type: 5-wire resistive touch screen, supports 1 million times of touch operation, adapts to glove operation in industrial sites.
- Processor and Memory: 533 MHz ARM9 processor, 128 MB system RAM, 128 MB onboard Flash storage, supports SD card expansion up to 4 GB.
- Power Supply: 24 VDC nominal input, accepts 18~30 VDC wide voltage input, typical power consumption 25 W.
- Communication Interfaces: 1× 10/100 Mbps Ethernet port, 2× RS-232 serial ports, 1× USB host port, 1× USB device port, supports Modbus RTU/TCP, Ethernet/IP and GE SRTP protocol.
- Physical Specifications: Housing size 310 mm × 234 mm × 56 mm, panel cutout size 292 mm × 216 mm, weight 1.8 kg.
- Environmental Adaptability: Working temperature 0°C ~ 50°C, storage temperature -20°C ~ 60°C, humidity 5% ~ 95% non-condensing, NEMA 4/12 front panel protection, IP65 rated front face.
- Functional Features
- Pre-installed GE Cimplicity HMI development software, supports customized screen development, trend curve recording, alarm logging and historical data query functions.
- Supports remote monitoring and remote debugging, which is convenient for off-site troubleshooting and program update.
- Built-in 2000+ industrial device driver libraries, can connect with most mainstream PLC and control devices directly, no need for secondary development.
- Uses industrial-grade electronic components, has passed strict EMC anti-interference test, can work stably for a long time in harsh industrial environment with high vibration and strong electromagnetic interference.
- Has built-in overvoltage protection, overcurrent protection and reverse polarity protection, which reduces the damage risk caused by abnormal power supply.
- Application Scenarios Automated production line monitoring, injection molding machine control system, packaging equipment operation interface, generator set monitoring system, industrial robot control cabinet, material handling system, in the automotive, food and beverage, metallurgy, pharmaceutical and other industries are widely used.
- Installation Requirements Reserve enough installation space in the control cabinet, the back of the panel needs to leave at least 100 mm ventilation space to avoid overheating. Fixed by panel mounting, use the matching mounting clip to lock, seal the rubber gasket between the panel and the cabinet to ensure the protection performance. Connect the shielding layer of the communication line to the cabinet ground to reduce electromagnetic interference.
- Notes for Use Avoid scratching the touch screen with sharp objects, clean the surface with a soft cloth and mild cleaning agent, do not use corrosive detergent. Calibrate the touch screen when it is used for the first time or after replacing the screen, avoid misoperation caused by touch offset. Do not disassemble the HMI by yourself, the static electricity generated by human body may damage the internal electronic components, need to wear anti-static wristband when replacing the module.
