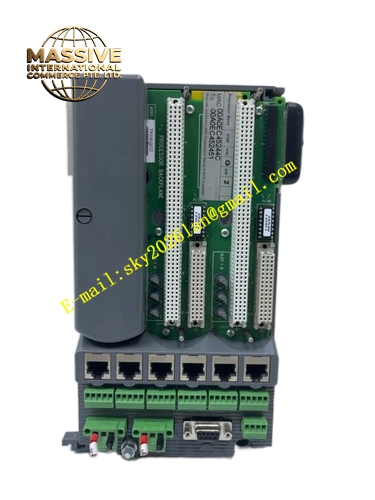

ICS Triplex 9100
Technical Specifications:
- Product Type: Processor base unit / backplane
- Processor Support: Up to three processor modules as a redundant group
- Ethernet Ports: Six auto-sensing 10/100BASE-TX Ethernet ports (two ports per processor module)
- Power Input: +24 VDC nominal
- Dimensions: 235 mm x 126 mm (9.25 in x 5.0 in)
- Weight: 460 g (16.2 oz)
- Operating Temperature: -10 to 50 °C standard range
- Grounding: Dedicated ground stud with M6 lug requirement
Functional Features:
- Supports triple modular redundant processor configurations
- Six auto-sensing Ethernet ports for network connectivity
- Direct plug and socket connection capability for I/O base units
- Expansion bus designated as I/O Bus 1 (right-hand edge) and I/O Bus 2 (left-hand edge)
- Ground stud for AC safety ground connection
- Compatible with T9110 processor modules
- Supports both standard and extended temperature configurations
- Rack-mountable design for industrial cabinet installation
Application Scenarios:
- Safety instrumented systems (SIS) in petrochemical industries
- Emergency shutdown systems (ESD) in oil and gas
- Process safety installations in chemical plants
- Power generation protection systems
- Safety controller cabinet assembly and replacement
Performance Parameters:
- Operating temperature range from -10°C to +50°C
- Storage temperature range from -25°C to +70°C
- High reliability through redundant processor support
- Stable backplane communication for fault-tolerant architectures
- SIL 3 capable when configured with appropriate modules
Material Composition:
- Industrial-grade metal chassis
- High-quality PCB backplane construction
- Durable Ethernet connectors
- Corrosion-resistant finish
Structural Characteristics:
- Compact base unit form factor
- Module positions numbered for unique identification
- Top and bottom clips for secure mounting
- Direct expansion capability via T9310 cables
- Front-accessible Ethernet ports
Working Principle: The base unit provides the physical and electrical infrastructure for processor module installation. It distributes power from the 24 VDC input to mounted modules and facilitates high-speed communication between processors and I/O modules through the internal backplane bus. The Ethernet ports enable network connectivity for each processor module, supporting distributed control architectures.
Installation Requirements:
- Mount in standard industrial enclosure
- Connect ground stud to AC safety ground busbar using minimum 12 AWG wire
- Use M6 lug on ground wire with torque of 1.2 Nm to 2 Nm
- Install processor modules in designated slots
- Connect I/O base units to right-hand side for Bus 1 or left-hand side via T9310 for Bus 2
- Ensure adequate ventilation for thermal management
Usage Precautions:
- Verify all processor modules are properly seated
- Ensure ground connection is secure before energizing
- Use crossover cable for direct PC connections during setup
- Monitor Ethernet port indicators for communication status
- Follow ESD precautions during module installation
- Do not exceed maximum processor module capacity
