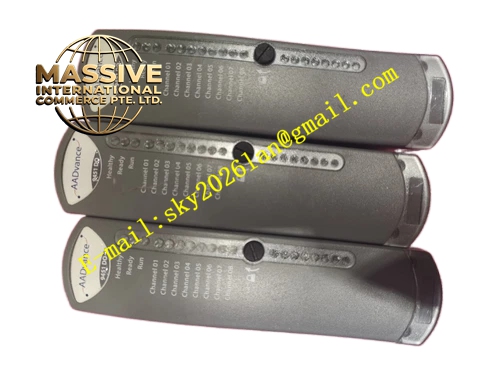

ICS Triplex 9402

ICS Triplex 9402

Product Introduction: The 9402 is a high-integrity 16-channel isolated digital input module designed for the ICS Triplex AADvance safety controller platform. Operating at a 24 VDC nominal sensing threshold, this module enables high-density discrete field signal monitoring and comprehensive condition tracking across safety-critical process networks. Each of its 16 channels features full photoelectric isolation to prevent signal crosstalk and shield sensitive backplane logic layers from field anomalies.

Request Quote
Category:

Description

ICS Triplex 9402

Technical Specifications:

  • Input Channels: 16 fully isolated discrete channels
  • Nominal Input Voltage: 24 VDC
  • Operating Voltage Range: 18 to 32 VDC (0 to 32 VDC absolute measurement span)
  • Isolation: Full photoelectric isolation (channel-to-channel and channel-to-backplane)
  • Voltage Band Configuration: 5 configurable voltage bands with 8 different switch thresholds per channel
  • Input Voltage Measurement Accuracy: ±0.5 V
  • Power Consumption: 4.0 W maximum
  • Dimensions: 166 mm x 42 mm x 118 mm (6.5 in x 1.65 in x 4.65 in)
  • Weight: 340 g (12 oz)
  • Operating Temperature: -10 to 50 °C standard; up to 70 °C extended

Functional Features:

  • 16 triple modular redundant input channels
  • Full photoelectric isolation on all channels
  • Configurable in Simplex (1oo1D), Redundant (1oo2D), or TMR (2oo3D) topologies
  • 5 configurable voltage bands with 8 switching thresholds per channel
  • Precise line monitoring for open circuit and short circuit detection
  • On-board sequence of events reporting capability
  • Front-panel input status LEDs for each channel
  • Front-panel module status LEDs for health and operational mode
  • Compatible with T9802 dual termination assembly

Application Scenarios:

  • High-density safety interlock monitoring
  • Process shutdown system inputs
  • Fire and gas detection system interfaces
  • Turbine control protection systems
  • Chemical reactor safety monitoring

Performance Parameters:

  • TÜV Certified for IEC 61508 SIL 3 application environments
  • High accuracy with ±0.5 V measurement precision
  • Fast response time for safety-critical applications
  • Excellent common-mode rejection ratio
  • Robust operation in harsh electromagnetic environments

Material Composition:

  • Industrial-grade electronic components
  • Photoelectric isolation devices
  • High-quality PCB with conformal coating option
  • Durable industrial polymer housing
  • High-reliability connectors

Structural Characteristics:

  • High-density 16-channel design in compact form factor
  • Front-panel comprehensive LED indication
  • Standard AADvance module dimensions
  • Hot-swappable design for maintenance
  • Compatible with AADvance Workbench configuration

Working Principle: The module processes 16 independent discrete input signals through isolated channels. Each channel applies configurable voltage thresholds to determine input state while monitoring line integrity. The TMR configuration enables three independent channels to vote on each input state, ensuring correct operation even with single-channel failures. Automatic diagnostics continuously verify proper channel operation.

Installation Requirements:

  • Install in T9300 I/O base unit
  • Mate with T9802 dual termination assembly for dual configurations
  • Verify 24 VDC field power availability
  • Configure voltage bands per application requirements
  • Ensure proper shield grounding

Usage Precautions:

  • Verify field voltage compatibility before connection
  • Do not exceed 32 VDC absolute maximum
  • Monitor diagnostic status for wiring fault detection
  • Follow proper hot-swap procedures
  • Maintain ESD protection during handling
  • Configure appropriate thresholds for noise immunity
