Product Introduction: The 9451 is a high-integrity 8-channel commoned digital output module engineered for the ICS Triplex AADvance safety controller platform. Operating at a 24 VDC nominal rating, this module drives and supervises critical field actuators, solenoids, relays, and indicators. The 9451 incorporates an internal dual fail-safe switch matrix designed to guarantee that the module can always de-energize an output channel on demand, providing an inherently safe execution layer for safety-critical applications.

Request Quote
Category:

Description

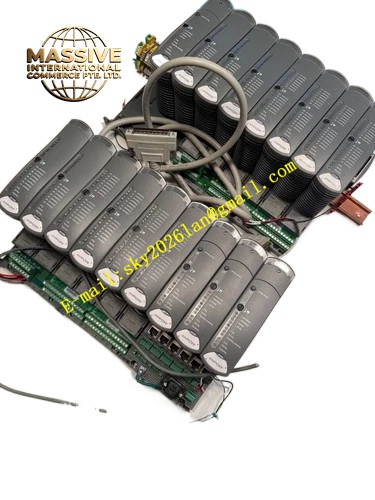

ICS Triplex 9451

Technical Specifications:

  • Channel Capacity: 8 digital output paths with shared common field power return
  • Nominal Operational Voltage: 24 VDC
  • Operating Range: 18 to 32 VDC
  • Withstand Voltage: Up to 60 VDC without damage
  • Continuous Output Current: 1 A maximum per channel at 32 VDC
  • Maximum Peak Inrush Current: 1.5 A instantaneous
  • Isolation Barrier: Opto-galvanic isolation rated up to ±1.5 kV DC for 1 minute
  • Response Time: Approximately 1.17 ms typical simplex execution latency
  • Power Consumption: 3.0 W typical
  • Heat Dissipation: 10.2 BTU/hr
  • Dimensions: 166 mm x 42 mm x 118 mm (6.5 in x 1.65 in x 4.65 in)
  • Weight: 340 g (0.75 lb)
  • Operating Temperature: -10 to 50 °C standard; extended to 85 °C available

Functional Features:

  • 8 digital output channels with commoned return
  • Internal dual fail-safe switch matrix for guaranteed de-energization
  • Comprehensive line monitoring with voltage feedback
  • Reverse current protection on each channel
  • Opto-galvanic isolation between logic and field
  • Configurable in Simplex (1oo1D), Redundant (1oo2D), or TMR (2oo3D) arrays
  • Overcurrent and short circuit protection
  • Front-panel status LEDs for each channel
  • Compatible with T9851 simplex and T9852 dual termination assemblies

Application Scenarios:

  • Emergency shutdown valve control
  • Solenoid valve actuation
  • Safety relay driving
  • Alarm horn and beacon control
  • Motor starter coil energization
  • Fire and gas system output handling

Performance Parameters:

  • TÜV Certified for IEC 61508 SIL 2 (single module) or SIL 3 (dual/TMR configurations)
  • Fast response time less than 1.2 ms
  • High current drive capability per channel
  • Robust protection against field faults
  • Reliable operation under demanding industrial conditions

Material Composition:

  • Industrial-grade electronic components
  • Opto-galvanic isolation devices
  • High-current output transistors
  • Durable PCB construction
  • Industrial-grade housing

Structural Characteristics:

  • Compact 8-channel commoned design
  • Standard AADvance module form factor
  • Front-panel output status LEDs
  • Commoned field power return configuration
  • Hot-swappable for online maintenance

Working Principle: The module receives output commands from the processor and drives field devices through 8 independent output channels. The internal dual fail-safe switch matrix ensures outputs can be de-energized on command regardless of component failures. Voltage feedback on each channel confirms proper operation and detects field wiring faults. The opto-galvanic isolation barrier protects the backplane from field-side electrical transients.

Installation Requirements:

  • Install in T9300 I/O base unit
  • Mate with T9851 or T9852 termination assembly
  • Verify load current requirements
  • Ensure proper field power supply
  • Configure redundancy mode via AADvance Workbench
  • Observe maximum current ratings per channel

Usage Precautions:

  • Do not exceed 1 A continuous current per channel
  • Verify inrush current requirements for inductive loads
  • Monitor front-panel LEDs for fault indication
  • Ensure proper load grounding
  • Follow hot-swap procedures for replacement
  • Maintain adequate ventilation for thermal management
