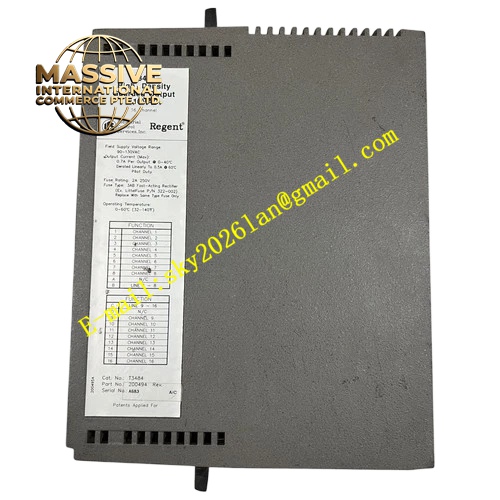

ICS Triplex T3150A
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ICS Triplex (Rockwell Automation) |
| Product Series | Regent System |
| Module Type | Serial Communication Module |
| Communication Interfaces | RS232, RS422 |
| Revision Levels | Rev A, Rev D |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
Functional Features
- Dual Protocol Support: RS232 and RS422 serial communication ports provide flexible connectivity options
- Programming Interface: RS232 port supports direct connection to engineering workstations for program upload, download, and online monitoring
- RS422 Multi-Drop Capability: RS422 interface supports longer cable runs and multi-drop network configurations
- Regent System Native Design: Optimized for direct integration with the Regent PD6000 controller backplane
- Revision Compatibility: Hardware revisions A and D maintain backward compatibility within the Regent system architecture
Application Scenarios
- Engineering workstation connectivity for program development
- Operator interface panel communication
- SCADA system serial data links
- Third-party device integration via serial protocols
- Remote diagnostics and maintenance access
- Data logging and historian system interfaces
Performance Parameters
- Baud Rate Support: Standard serial baud rates up to 115.2 kbps
- Cable Distance: RS422 supports cable distances up to 1200 meters
- Isolation: Galvanic isolation between communication ports and internal logic
- Data Integrity: Hardware-based error detection for reliable data transmission
Material Composition
- Enclosure: Industrial-grade metal housing
- Circuit Board: Multilayer PCB with communication transceiver circuits
- Transceivers: Industrial-grade RS232/RS422 line driver/receiver chips
- Connectors: Standard DB9 or terminal block connectors for field wiring
- Isolation Components: Optocouplers and isolation transformers for port protection
Structural Characteristics
- Standard Regent Module Form Factor: Fits into designated communication slots in the Regent chassis
- Front-Panel Connectors: Accessible serial ports on the module front panel
- Status LEDs: Communication activity and module health indicators
- Backplane Interface: Direct connection to the Regent system internal bus
Working Principle
The T3150A interfaces between the Regent controller internal bus and external serial devices. It converts parallel data from the controller backplane into serial data streams for RS232 or transmission. Incoming serial data is converted back to parallel format and placed on the internal bus for processor access. The module manages baud rate generation, data framing, and handshaking protocols autonomously.
Installation Requirements
- Install in a designated communication slot in the Regent chassis
- Connect serial cables using shielded twisted-pair wiring
- Configure baud rate and protocol parameters via system software
- Ensure proper grounding of cable shields at one end only
- Verify revision level compatibility with existing system modules
Operating Precautions
- Verify correct baud rate settings before establishing communication
- Use shielded cables in electrically noisy environments
- Do not exceed maximum cable length specifications
- Monitor communication status LEDs for fault indication
- Replace modules with identical revision levels when possible
- Disconnect serial cables before removing or inserting the module
