Description

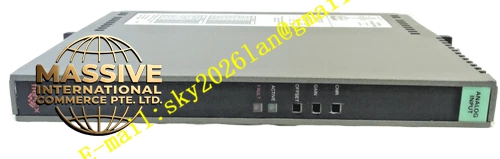

ICS Triplex T7150A
Technical Specifications:
- Brand: ICS Triplex (Rockwell Automation)
- Model: T7150A
- Product Type: Redundant Controller Module (Comms Module)
- Redundancy: Triple Modular Redundancy (TMR)
- Performance Level: SIL 4
- Fault Switching Time: ≤1ms
- Power Supply: 24V DC
- Power Consumption: 50W
- Communication Interfaces: RS-232, RS-485, Ethernet
- Supported Protocols: Modbus
- Operating Temperature: -40°C to +85°C
- Dimensions: 300mm × 200mm × 100mm
- Weight: 5kg
- Origin: United States
Functional Features:
- Triple redundant (TMR) design with three independent processor and execution units per channel
- Fault-tolerant (3-2-0) operation ensures continuous system operation even with single-channel failure
- Hardware Implemented Fault Tolerance (HIFT) architecture provides rapid fault identification and response
- High-performance processor supporting complex control logic and high-speed data processing
- Modular design supporting multi-channel expansion (digital/analog input/output)
- Multiple communication interfaces (RS-232, RS-485, Ethernet) for system integration
- Supports Modbus and other industrial communication protocols
- Front panel indicators display module health and operational status
- Hot-swap capability for online module replacement without system shutdown
- Time-stamped fault historian for event recording and diagnostics
Application Scenarios:
- Industrial automation: monitoring production line equipment status including machine operation, conveyor position, and valve switching
- Safety systems: processing signals from emergency stop buttons, fire alarm buttons, and other safety devices
- Oil & gas, petrochemical, and power generation process control
- Emergency Shutdown Systems (ESD)
- Fire and Gas Detection Systems (F&G)
Performance Parameters:
- Redundancy: Triple Modular Redundancy (TMR)
- Safety Performance Level: SIL 4
- Fault Switching Time: ≤1ms
- Operating Temperature: -40°C to +85°C
Material Composition:
- Industrial-grade multi-layer PCB
- High-reliability semiconductor components
- Precision-machined connectors
- Metal chassis with rack mounting provisions
Structural Features: Standard Trusted I/O module form factor. The module plugs into the Trusted I/O chassis backplane. Front panel features channel status LEDs and module health indicators. Field connections are made through removable Field Termination Assemblies (FTA).
Working Principle: The T7150A operates on the TMR principle where three independent processor channels execute identical control programs simultaneously. A hardware voter compares outputs using majority agreement logic (2-out-of-3 voting), ensuring that any single-point fault is automatically masked without interrupting process control. The HIFT architecture provides dedicated hardware and software test mechanisms for very fast fault recognition and response.
Installation Requirements:
- Install in Trusted I/O chassis with adequate ventilation
- Maintain proper spacing for airflow and service access
- Use recommended Field Termination Assemblies
- Route field wiring separately from high-current cables
- All field wiring to use ferruled conductors with correct labeling
Usage Notes:
- Verify field supply voltage matches module rating before energizing
- Execute Lockout/Tagout procedures before wiring changes
- Regularly verify channel functionality through diagnostic tests
- Store spare modules in anti-static packaging
- Check front panel LED indicators during routine inspections
