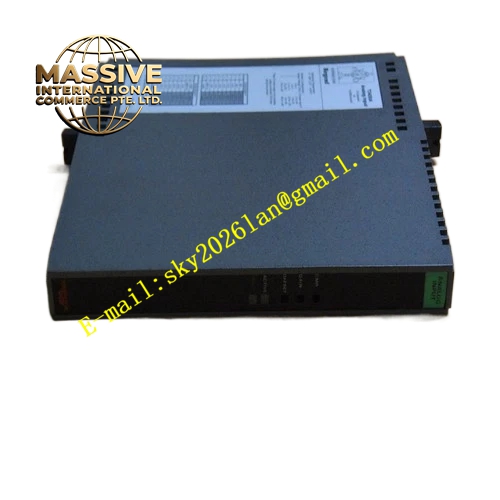

ICS Triplex T8423
Technical Specifications:
- Input Channels: 40 channels
- Input Voltage Range: 35 to 120 VDC
- Architecture: Triple Modular Redundancy
- Isolation: 2500V impulse withstand optoelectronic isolation barrier
Functional Features:
- 40 triple modular redundant input channels
- Comprehensive automatic diagnostics and self-test
- Automatic line monitoring per channel
- Detection of open circuit and short circuit field wiring faults
- High-voltage optoelectronic isolation
- On-board sequence of events reporting with 1 ms resolution
- Hot-replaceable online using dedicated companion slot
- Front-panel input status LEDs for each channel
- Front-panel module status LEDs indicating health and operational mode
Application Scenarios:
- High-voltage DC digital input applications
- Safety instrumented systems in oil and gas
- Power generation and distribution monitoring
- Chemical process emergency shutdown systems
- Turbine control and protection systems
Performance Parameters:
- Operating temperature range suitable for industrial environments
- High noise immunity through optoelectronic isolation
- Fast input response time for safety-critical applications
- SIL 3 capable when configured in appropriate architectures
Material Composition:
- Industrial-grade electronic components
- High-voltage optocouplers
- Durable PCB with conformal coating option
Structural Characteristics:
- Standard Trusted module form factor
- Front-panel LED array for channel status indication
- High-density 40-channel design
- Companion slot support for hot replacement
Working Principle: Each input channel utilizes triple modular redundant circuitry with independent signal paths. Three separate input circuits process each field signal, and a majority voting mechanism determines the final input state. Automatic diagnostics continuously test each channel for proper operation, detecting stuck-at faults and wiring anomalies.
Installation Requirements:
- Install in appropriate Trusted chassis slot
- Verify field voltage compatibility before connection
- Ensure proper grounding of field wiring shields
- Use appropriate high-voltage wiring practices
Usage Precautions:
- Verify input voltage range matches field devices
- Do not exceed maximum input voltage ratings
- Monitor diagnostic indicators for wiring fault detection
- Replace modules only using proper hot-swap procedures
- Maintain clean environment to prevent contamination
