Description

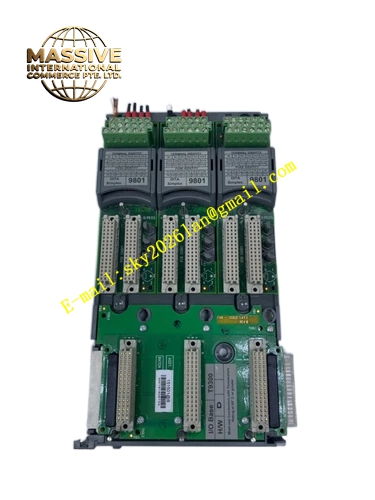

ICS Triplex T8480T
Technical Specifications & Performance Parameters:
- Power Supply: 20‑32 V DC backplane power feeding, nominal 24 V DC
- Channel Quantity: 40 analog output channels
- Output Signal Range: 4‑20 mA, 0‑20 mA analog current output
- Per‑channel Redundancy: Triple independent output paths for each channel
- Operating Temperature: ‑40 °C ~ +70 °C
- Storage Temperature: ‑40 °C ~ +85 °C
- Safety Certification: TÜV IEC 61508 SIL 3
- Power Consumption: 26 W maximum
- Weight: 1.15 kg
- Form Factor: Standard 3U rack plug‑in module
Functional Features:
- Per‑channel triple‑redundant analog output circuit, single‑path failure will not distort output current signal
- Built‑in loop diagnostic function, detect field cable open‑circuit and short‑circuit fault
- Hot‑swap support for online module replacement
- Configurable fail‑safe output value when fault occurs via configuration software
- Front‑panel LED indicators display channel status, module running status and fault alarm
- Time‑stamped channel‑level fault data upload to system fault historian
- Galvanic isolation between field output loop and internal safety system bus
- High‑precision digital‑to‑analog conversion, guarantee output current accuracy under industrial interference environment
Working Principle: Safety processor sends digital set‑value command to T8480T via inter‑module bus. Three independent digital‑to‑analog conversion paths receive identical digital instruction, generate analog current output respectively. Hardware voting circuit selects valid output value and drives field loop. Diagnostic circuit monitors output loop impedance and current value continuously. When open‑circuit or short‑circuit fault is detected, module generates fault alarm and executes preset fail‑safe output state. Single output‑path failure is isolated automatically, channel still maintains correct analog output.
Material Composition & Structural Characteristics:
- Housing: Die‑cast aluminum alloy anti‑electromagnetic‑interference shell
- Circuit board: Multi‑layer FR‑4 PCB with high‑precision D/A conversion and isolation components
- Connector: Gold‑plated backplane connector, field signal high‑density terminal block
- Front panel: Flame‑retardant engineering plastic with LED indicator array, IP20 protection grade
- Plug‑in card‑type rack‑slot structure
Installation Requirements:
- Install into I/O slot of Trusted rack chassis, fasten front‑panel locking screws
- Field analog output cables adopt shielded twisted‑pair cables, keep distance from high‑voltage power cables
- Cable shielding layer single‑end grounded at cabinet ground bar
- Cabinet protective ground resistance ≤4 Ω
- Ensure cabinet ventilation heat‑dissipation condition is good
- Field actuator load impedance must match module output loop load specification
Application Scenarios:
- Regulating valve analog control for petrochemical safety control system
- Analog actuator output for chemical plant reactor safety interlock
- Process adjustment output for offshore platform safety instrumented system
- Safety‑related analog control of power‑plant auxiliary equipment
- Control signal output for LNG plant safety‑critical regulating equipment
Usage Notes:
- Hot‑swap operation only permitted under normal system health status
- Do not disassemble module shell; no internal user‑serviceable parts
- Avoid field‑side short‑circuit of output current loop
- After module replacement, calibrate channel output accuracy and verify fault‑detection function
- Do not operate beyond rated temperature range
- Regularly check insulation performance of field output cables
